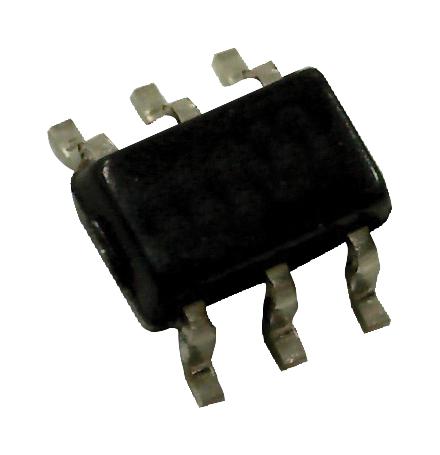

Microchip MCP4012T-503E/CH MCP4012T-503E/CH Volatile Digital Potentiometer 50 Kohm Single Up Down Linear ± 20% 1.8 V

The MCP4012T-503E/CH is a 6-bit Digital Potentiometer can be configured as either a potentiometer or rheostat. The wiper setting is controlled through a simple up/down (U/D) serial interface. It is intended to be used in applications where a programmable resistance with moderate bandwidth is desired. The digital potentiometer is available in four nominal resistances (RAB), where the nominal resistance is defined as the resistance between terminal A and terminal B. There are 63 resistors in a string between terminal A and terminal B. The wiper can be set to tap onto any of these 63 resistors thus providing 64 possible settings (including terminal A and terminal B). The VDD pin is the device's positive power supply input. The input power supply is relative to VSS and can range from 1.8 to 5.5V. A decoupling capacitor on VDD (to VSS) is recommended to achieve maximum performance.

• Simple up/down (U/D) protocol
• power-ON recall of default wiper setting
• 10ppm Typical ratiometric (potentiometer)
• 75R Typical low wiper resistance
• Up to 12.5V high-voltage tolerant digital inputs
• 1µA Maximum static current low-power operation

Applications

Signal Processing

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MCP4012T-503E/CH
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN
