Microchip MCP41HV51-503E/ST MCP41HV51-503E/ST Volatile Digital Potentiometer 50 Kohm Single SPI Linear ± 20% 1.8 V

The MCP41HV51-503E/ST is a Digital Potentiometer with SPI serial interface and volatile memory. It has dual power rails (analogue and digital). The analogue power rail allows high voltage on the resistor network terminal pins. The analogue voltage range is determined by the V+ and V- voltages. The maximum analogue voltage is 36V, while the operating analogue output minimum specifications are specified from either 10 or 20V. As the analogue supply voltage becomes smaller, the analogue switch resistances increase, which effect certain performance specifications. The system can be implemented as dual rail (±18V) relative to the digital logic ground (DGND). The device also has a Write Latch (WLAT) function, which will inhibit the volatile wiper register from being updated (latched) with the received data, until the WLAT pin is low. This allows the application to specify a condition where the volatile wiper register is updated (such as zero crossing).

• Terminal control (TCON) register
• High-voltage analogue support
• Single resistor network
• High terminal/wiper current (IW) support
• Zero-scale to full-scale wiper operation
• Write latch (WLAT) pin to control update of volatile wiper register (such as zero crossing)
• power-ON reset/brown-out reset
• 500kHz Typical bandwidth (-3dB)
• 3µA Typical serial interface inactive current
• 75R Typical low wiper resistance

Applications

Signal Processing

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MCP41HV51-503E/ST
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN

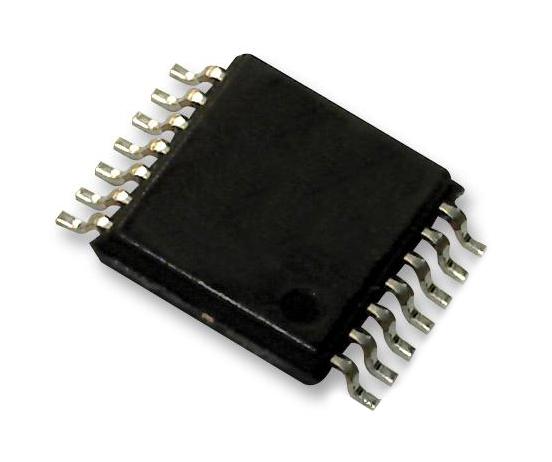

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
