Description

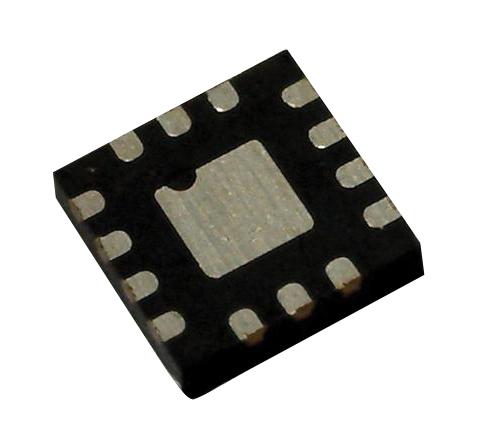

The TPL0102-100RUCR is a two linear-taper Digital Potentiometer with 256 wiper positions. It can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0102-100 has an end-to-end resistance of 100kR. The TPL0102 has non-volatile memory (EEPROM) which can be used to store the wiper position. This is beneficial because the wiper position is stored even during power-off and is automatically reinstated after power-on. The internal registers of the TPL0102 can be accessed using the I²C interface.
- Non-volatile memory stores wiper settings
- Fast Power-up Response Time to Wiper
- 4ppm/°C Ratiometric temperature coefficient
- I²C Compatible serial interface
- Shutdown mode
- ESD performance tested Per JESD 22
- Green product and no Sb/Br
Applications
Power Management, Sensing & Instrumentation
Warnings
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
Product details
| End To End Resistance: 100kohm |
| No. of Pots: Dual |
| Control Interface: I2C |
| Track Taper: Linear |
| Resistance Tolerance: ± 20% |
| Supply Voltage Min: 2.7V |
| Supply Voltage Max: 5.5V |
| Potentiometer IC Case Style: QFN |
| No. of Pins: 14Pins |
| No. of Steps: 256 |
| Temperature Coefficient: ± 130ppm/°C |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: Dual 256-Tap Non-Volatile Digital Pots |
| Automotive Qualification Standard: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TPL0102-100RUCR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
