Texas Instruments DAC7625U Digital to Analogue Converter 12 bit 100 Ksps Parallel ± 4.75V 5.25V Soic 28 Pins

The DAC7625U is a 12-bit quad voltage output Digital-to-analog Converter (DAC) with guaranteed monotonic performance over the specified temperature range. It accepts 12-bit parallel input data, has double-buffered DAC input logic and provides a read-back mode of the internal input registers. An asynchronous reset clears all registers to a mid-scale code of 800H (DAC7624). The DAC7624 can operate from a single 5V supply or from 5V and -5V supplies. Low power and small size per DAC make the DAC7624 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems and closed-loop servo-control.

• Low power - 20mW
• Unipolar or bipolar operation
• Settling time - 10µs to 0.012%
• Reset to mid-scale
• Double-buffered data inputs
• Green product and no Sb/Br

Applications

Automation & Process Control, Sensing & Instrumentation, Motor Drive & Control

Other details

Brand	TEXAS INSTRUMENTS
Part Number	DAC7625U
Quantity	Each

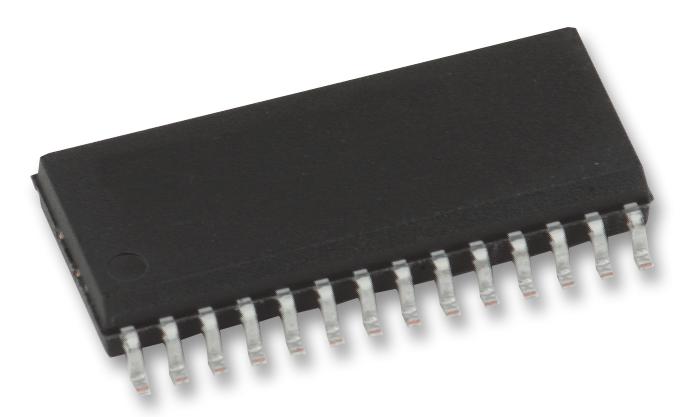

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
