| ₹ 335.61 includes GST and import duties. | |
| B2B customers can avail ₹ 51.18 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

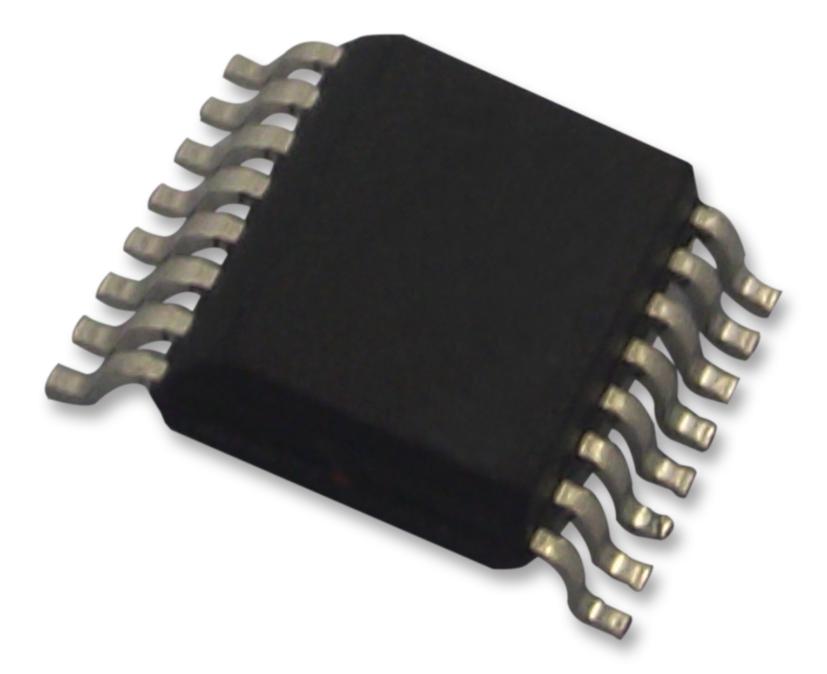

The PCM1780DBQ is a CMOS monolithic stereo Digital-to-analog Converter (DAC) supports circuitry. The data converter use TIs enhanced multilevel delta-sigma architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1780 accepts industry standard audio data formats with 16 to 24-bit data, providing easy interfacing to audio DSP and decoder chips. Sampling rates up to 200kHz are supported. The PCM1780 provides a full set of user-programmable functions through a 3-wire serial control port, which supports register write functions. The PCM1781 provides a subset of user-programmable functions through four control pins.
- 4x/8x Oversampling digital filter
- Software control
- Digital attenuation - mode selectable
- Digital de-emphasis
- Digital filter roll off - sharp or slow
- Soft mute
- Zero flags for each output
- Pin-compatible with PCM1680
- Green product and no Sb/Br
Sensing & Instrumentation, Imaging, Video & Vision, Audio, Consumer Electronics, Computers & Computer Peripherals
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | PCM1780DBQ |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 328.9 |
| 3-5 | ₹ 325.54 |
| 5-10 | ₹ 318.83 |
| 10+ | ₹ 312.12 |
Bulk discount will be automatically applied during checkout based on quantity.
