Description

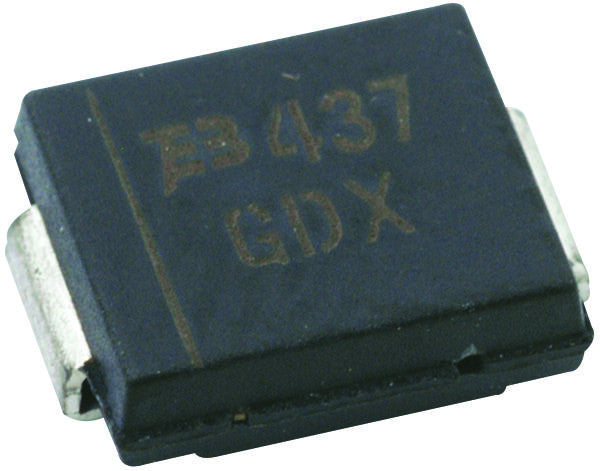

This is a FAST DIODE, 3A, 200V, DO-214AB product from VISHAY with the model number MURS320-E3/57T
Product details
| Forward Voltage VF Max | 710mV |
| No. of Pins | 2 Pin |
| Operating Temperature Max | 175°C |
| Forward Current If(AV) | 3A |
| Product Range | - |
| Automotive Qualification Standard | - |
| Diode Configuration | Single |
| Reverse Recovery Time trr Max | 25ns |
| Repetitive Reverse Voltage Vrrm Max | 200V |
| Packaging | Cut Tape |
| Diode Case Style | DO-214AB |
| Forward Surge Current Ifsm Max | 125A |
Other details
| Brand | VISHAY |
| Part Number | MURS320-E3/57T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Packaging / Drawing / Footprint EN | |
