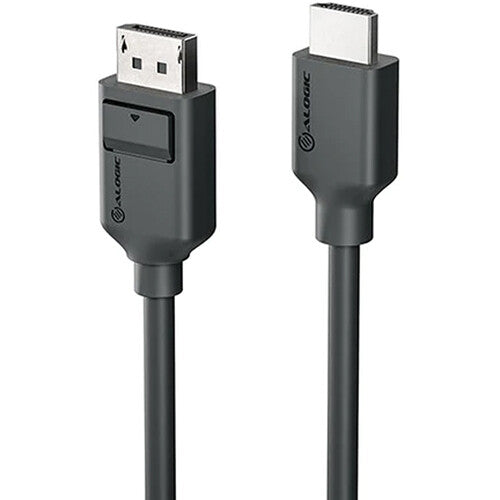

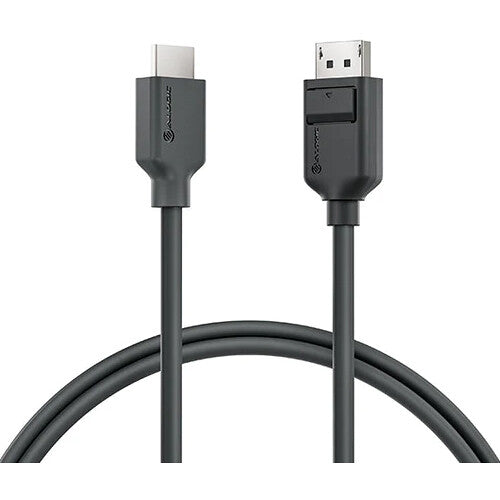

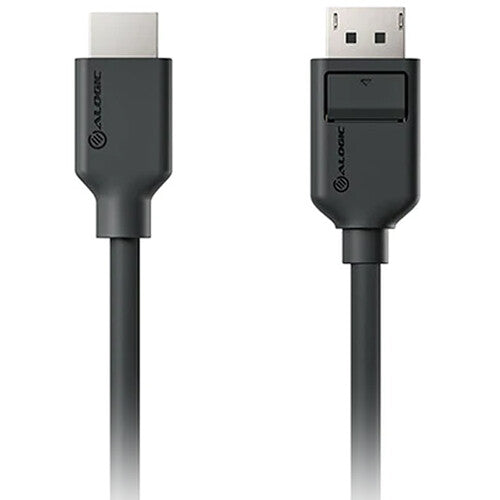

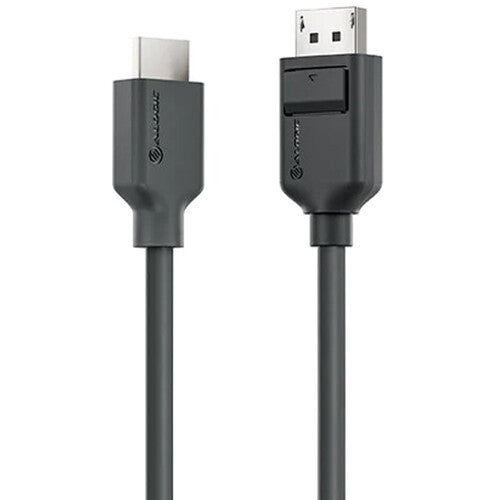

ALOGIC Elements DisplayPort to HDMI Cable (3.3', Dark Gray)

The Cable for Crisp HDMI Displays

ALOGIC's Elements Series DisplayPort to HDMI Cable is well suited for homes and businesses that need to marry a DisplayPort source, such as a computer, with an HDMI display, such as a computer monitor or projector. It supports HDMI resolutions up to the HDMI 1.4 spec of 4K/30 Hz and 1920 x 1080 at 144 Hz, all of which enable you to take a video call, present something to your team, scroll through documents or websites, or add an additional external display to your desk.

User Friendly

Whether you're looking to install 30AWG cables in your home, or to fit out a workplace, rest assured that ALOGIC's Elements range is engineered for maximum user friendliness.

When Reliability Is Essential

Connector construction undermines the longevity of many DisplayPort cables. That's why ALOGIC's engineers and designers have developed a unique ABS connector shell that holds up in high-traffic installation environments.

The Elements range is developed out of ALOGIC's experience producing hundreds of thousands of cables to stand the test of time in the most demanding professional and household environments. Whether at home or in the office, rest assured that these cables won't let you down. ALOGIC vouches for this with a lifetime warranty. Elements cables ship with 100% recyclable packaging, helping your business operate more sustainably.

Video Support

• Supports 3D video
• Refresh rates up to 144 Hz at 1080p
• Color depths up to 16 bits per color

Compatibility

Use this cable to connect a DisplayPort source device to an HDMI display. The DisplayPort source must support DP++ compatibility with HDMI. Also, this cable is unidirectional and cannot be used to connect an HDMI source to a DisplayPort display.

Resolution

Supports the HDMI 1.4 spec, with a maximum resolution of 4K at 30 Hz or Full HD at 144 Hz.

Features

Supports the following DisplayPort features (when used with equipment that supports them):

• Extended Consumer Electronics Control (CEC)
• Adaptive-Sync; G-SYNC, and FreeSync compatible
• High Dynamic Range (HDR) video support including HDR10, Dolby Vision, and HLG
• Multiple audio stream and Dual View video support

Data Rate

HDMI 1.4, 10.2 Gb/s (backward compatible with previous HDMI standards)

Physical Characteristics

Built using ABS for the DisplayPort connector and PVC for the cable jacket and HDMI connector.

ALOGIC Elements DisplayPort Male to HDMI Male Specs

Interface	HDMI 1.4
Connector 1	1x DisplayPort Male
Connector 2	1x HDMI Male
Cable Length	3.3' / 1 m
Maximum Resolution Support	3840 x 2160 at 30 Hz
Materials	Jacket: Polyvinyl Chloride (PVC)
Color	Dark Gray
Wire Gauge	30 AWG
Certifications	RoHS

Package Weight	0.185 lb
Box Dimensions (LxWxH)	6.9 x 3.95 x 0.95"
