Description
MP6545A is a three-phase power stage IC designed to drive brushless DC (BLDC) motors or other loads. The MP6545A operates across a 4.5V to 45V input voltage (VIN) range. It can deliver an output current (IOUT) up to 2.5A per phase, depending on the ambient temperature (TA) and PCB layout. The MP6545A has unique, independent GND pins for each half-bridge. These GND pins make it possible to provide current measurement via an external shunt resistor for different application requirements. Internal safety and diagnostic features include overcurrent protection (OCP), input overvoltage protection (OVP), input undervoltage lockout (UVLO), and thermal shutdown. The MP6545A has separate high-side (HS) and low-side (LS) input pins for each output pin. Applications include brushless DC (BLDC) motors, laser printers and copiers, textile machines.
- Three-channel half-bridge (HB) driver
- Low 150mohm on-resistance (RDS(ON)) per MOSFET
- Overtemperature (OT) shutdown
- Fault indication output

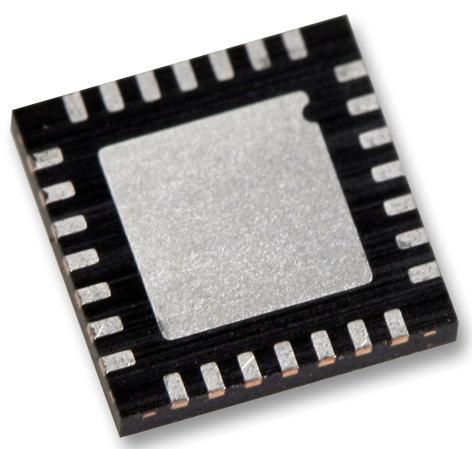

- Available in QFN-28 package
- LSSx to GND range from -0.2V to +0.2V
- Operating junction temp (TJ) from -40°C to +125°C
Footnotes
MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
Other details
| Brand | MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number | MP6545AGV-P |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 482.19 |
| 3-5 | ₹ 477.27 |
| 5-10 | ₹ 467.43 |
| 10+ | ₹ 457.59 |
Bulk discount will be automatically applied during checkout based on quantity.
