Description

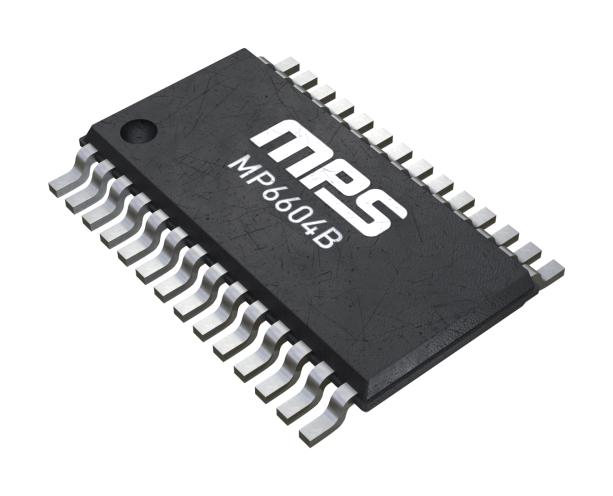

MP6604BGF-P is a simple dual H-bridge driver (PHASE/EN). It is a dual H-bridge motor driver IC designed to drive stepper motors, brushed DC motors, and other loads. It operates across a 4.5V to 45V input voltage (VIN) range. It can deliver an output current up to 2.5A per phase, depending on the ambient temperature (TA) and PCB layout. Internal safety and diagnostic features include over-current protection (OCP), input overvoltage protection (OVP), input under-voltage lockout (UVLO), and Thermal shutdown. The MP6604B has PHASE, ENBL, BRAKE, and BMOD input signals for each H-bridge. Typical applications are bipolar stepper motors, stage lighting, 3D printers, laser printers and copiers, textile machines.
- 150mohm low on resistance (per MOSFET)
- TSSOP-28EP package
- 2.8mA typical quiescent current (nSLEEP=1, with no load, VIN = 24V, TA = 25°C)
- Junction temperature (TJ) is 150°C
Footnotes
MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
| Motor Type: Stepper and DC Brush |
| No. of Outputs: 2Outputs |
| Output Current: 2.5A |
| Output Voltage: - |
| Driver Case Style: TSSOP-EP |
| No. of Pins: 28Pins |
| Supply Voltage Min: 4.5V |
| Supply Voltage Max: 45V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Product Range: - |
| Automotive Qualification Standard: - |
Other details
| Brand | MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number | MP6604BGF-P |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
