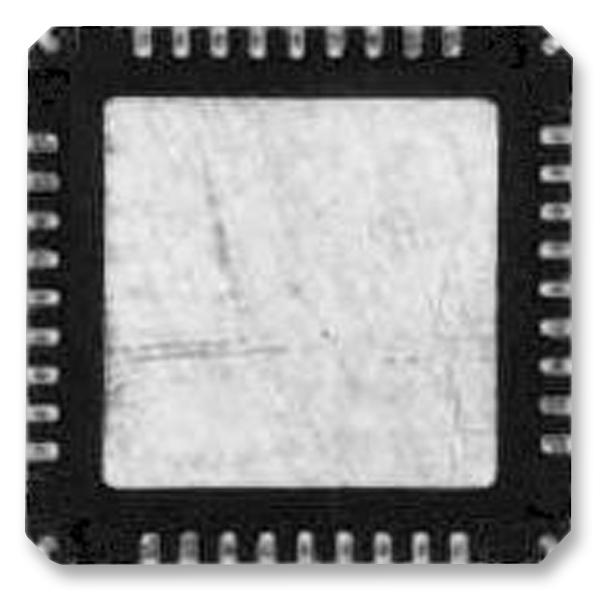

Microchip USB2512B-AEZG USB2512B-AEZG USB Interface Hub Controller 2.0 3 V 3.6 QFN 36 Pins

The USB2512B-AEZG is a 2-port USB 2.0 high-speed low-power Hub Controller IC for embedded USB solutions. The leveraging Microchip's innovative MultiTRAK� technology that delivers industry-leading data throughput in mixed-speed USB environments, the USB251xB family is an USB port expansion solution for applications that demand ultra low power and a small footprint without compromising on performance. Over 30 programmable features including Microchip's unique PortMap, PortSwap and PHYBoost are designed to aid system designers in simplifying PCB layout and optimizing bill-of-material cost. Every downstream port of the USB251xB hubs can be enabled to support USB battery charging 1.1 specification as a Charging Downstream Port (CDP). A CDP provides universal battery charging capability to a compliant mobile phone or portable electronic device using a standard USB port.

• Full power management with individual or ganged power control of each downstream port
• Fully integrated USB termination and pull-up/pull-down resistors
• Onboard 24MHz crystal driver, ceramic resonator or external 24/48MHz clock input
• Customizable vendor ID, product ID and device ID
• 4kV of HBM JESD22-A114F ESD protection (powered and unpowered)
• Supports self- or bus-powered operation
• Support the USB battery charging specification rev. 1.1 for charging downstream ports (CDP)
• PortMap - flexible port mapping and disable sequencing

Applications

Consumer Electronics, Computers & Computer Peripherals, Communications & Networking, Industrial, Automotive

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	USB2512B-AEZG
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN
