OWC ThunderBay 8 External HDD Overview
- 1Description
- 2Conquer High Bandwidth Demands
- 3Monstrous Capacity
- 4SoftRAID: RAID Made Easy
- 5Beyond Hardware RAID
- 6Swap and Identify Drives Easily
- 7As Secure as a Bank Vault
- 8Secure Your Workflow with OWC ClingOn
- 9See More, Do More
Introducing the OWC Thunderbay 8
OWC ThunderBay 8 Drive Install

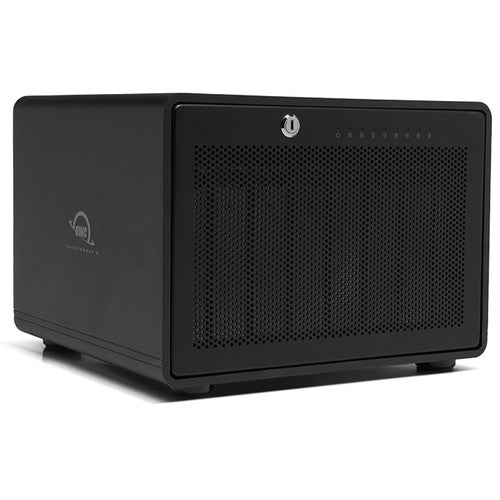

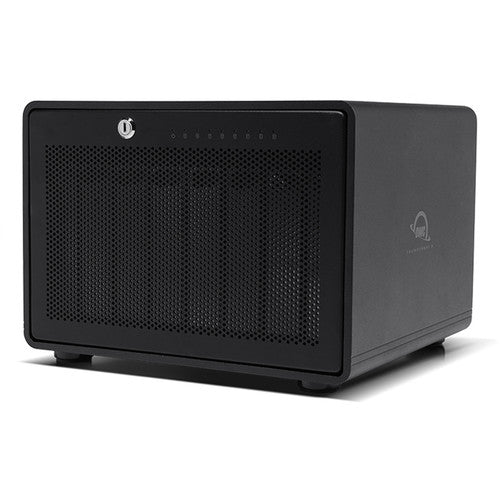

Streamline data storage and protection with the ThunderBay 8 64TB 8-Bay Thunderbolt 3 RAID 5 Array from OWC, which is optimized to handle raw, 4K, large format, and VR workflows. Utilizing 8 drive bays, each of which has an 8TB 7200 rpm SATA III hard, the ThunderBay 8 Enterprise features 64TB of storage. Preconfigured in RAID 5, this array also supports RAID 0, 1, 4, 1+0 (10), and JBOD modes and is capable of transfer rates up to 2586 MB/s. Compatible with 2.5 or 3.5" HDDs or SSDs, the ThunderBay 8 also supports hot swapping. Connecting to a host via a Thunderbolt 3 port, this RAID array features an extra Thunderbolt 3 port for accessories. A DisplayPort supports a monitor up to 4K while the Thunderbolt 3 port supports a monitor up to 5K.

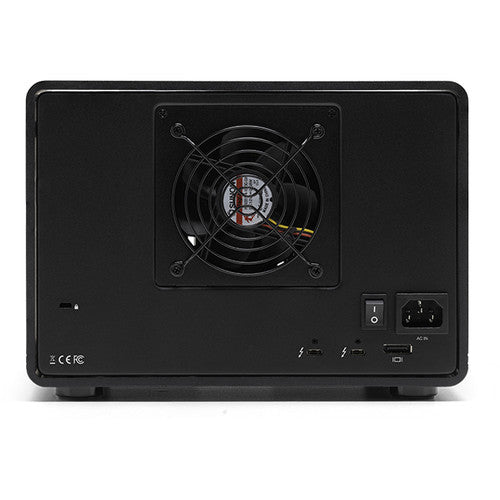

A 92mm cooling fan ensures drives don't become overheated, while LED indicators allow for easy monitoring of drive activity and power. Utilizing an aluminum enclosure, the ThunderBay 8 sports a locking front panel and a lock slot on the rear panel for added security. OWC SoftRAID XT software is included, providing easy drive management. The ThunderBay 8 is compatible with Windows 10 and later and macOS 10.13 and later.
Note:
SoftRAID XT works with macOS 10.12 or later and Windows 10 or later. SoftRAID is licensed per computer. The SoftRAID serial number will work with both Mac and Windows but can only be active on one computer at a time. Additional seats can be purchased. RAID 4/1+0 (10) are currently Mac only at this time. M1 Macs require macOS 11.3 or later.
Conquer High Bandwidth Demands
With Thunderbolt 3 offering real-world transfer rates up to 2586 MB/s and the ability to RAID together eight SSDs or HDDs, the ThunderBay 8's rugged, field-tested aluminum design has the under-the-hood horsepower needed to conquer high bandwidth requirements. You can even configure multiple ThunderBay 8 solutions connected via multiple Thunderbolt 3 ports on your Mac or PC to achieve exponential speed increases. Whatever your set up, when you're racing against a deadline, ThunderBay 8 puts you in the winner's circle.
Monstrous Capacity
Need even more capacity? Daisy-chain up to six of these capacity behemoths together for up to a staggering 960TB. Now you can capture vast amounts of footage from multiple cameras or store vast libraries of production work with a unified and reliable storage solution.
SoftRAID: RAID Made Easy
Harness the full capability of your OWC drive array with the included SoftRAID XT, the most powerful, intuitive RAID management software on the market for macOS and Windows. SoftRAID's RAID creation and management technology has been finely tuned to perfection with over 20 years of development to provide rock solid protection of your data and optimize drive performance.
SoftRAID XT provides an unbeatable combination of speed, protection, and compatibility:
SoftRAID XT provides an unbeatable combination of speed, protection, and compatibility:
- Advanced: Create RAID 0/1/4/5/1+0 (10) arrays
- Protected: SoftRAID Monitor constantly watches your disks and alerts you if problems are detected
- Validated: Volume validation ensures sectors can be read and parity is correct
- Certified: Checks disks before use to ensure they are safe for data storage
- Vigilant: Error prediction helps protect against unexpected failure
- Universal: Move SoftRAID arrays seamlessly between Mac and PC2 with built-in OWC MacDrive technology
Beyond Hardware RAID
SoftRAID provides a level of storage performance that you simply can't get with hardware RAID. SoftRAID gives you increased power and control over your RAID drives and disks that hardware RAID can't deliver and doesn't lock you into technology that you can't upgrade or expand.
Swap and Identify Drives Easily
ThunderBay 8 makes it easy to keep large data sets organized for every project thanks to its eight hot swappable drive bays. Whether you're using 2.5" or 3.5" HDDs and/or SSDs, the drives mount in alphabetically labeled trays for easy identification and are secured by a thumb screw. If you want the freedom to access an extensive collection of drives quickly, you can create a drive "bullpen" with additional OWC drive trays (sold separately).
As Secure as a Bank Vault

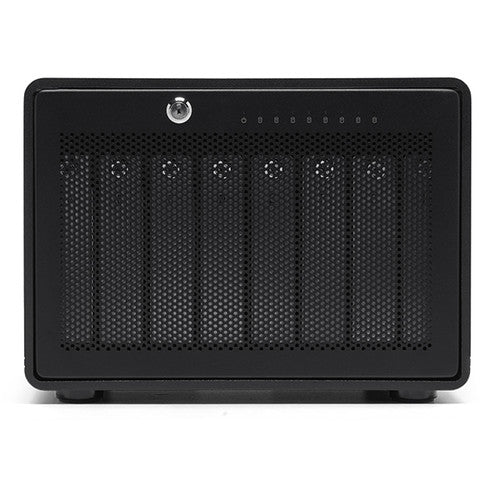

With a locking front panel and security slot on the backside, the ThunderBay 8 is like an ironclad vault for your data. Plus, with front panel LEDs indicating the status of each drive, you'll know at a glance if your data is secure.
Secure Your Workflow with OWC ClingOn
Greatly reduce�if not eliminate�cable strain and accidental disconnects with the OWC ClingOn. These custom cable stabilizers (sold separately) screw into the ThunderBay 8's housing to secure your Thunderbolt 3 and USB-C connections and prevent work session interruption and possible data loss.
See More, Do More
The ThunderBay 8 isn't just about high-capacity, high-performance storage. It's about giving you all the options you need to work at your best. Attach a 5K Thunderbolt display or two 4K displays. Place a USB 3.1 device at the end of a daisy chain. With an extra Thunderbolt 3 port, you have the flexibility to add more devices to your workflow and master any task at hand.
Dual display support, including available resolution and refresh rates, is dependent on host hardware and drivers. Apple Silicon M1 Pro, M1 Max, and M1 Ultra Mac models, Apple Intel-based Mac models, and Thunderbolt 4 PCs can support up to two displays at up to 4K/60 Hz via Thunderbolt. Apple Silicon M1 and M2 Mac models can support one external display up to 4K/60 Hz via Thunderbolt.
Dual display support, including available resolution and refresh rates, is dependent on host hardware and drivers. Apple Silicon M1 Pro, M1 Max, and M1 Ultra Mac models, Apple Intel-based Mac models, and Thunderbolt 4 PCs can support up to two displays at up to 4K/60 Hz via Thunderbolt. Apple Silicon M1 and M2 Mac models can support one external display up to 4K/60 Hz via Thunderbolt.
UPC: 810586034555
In the Box
- OWC ThunderBay 8 64TB 8-Bay Thunderbolt 3 RAID 5 Array (8 x 8TB Enterprise)
- Thunderbolt 3 Cable (2.3' / 0.7m)
- External Power Cable
- 2 x Security Keys
- SoftRAID XT
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Conquer High Bandwidth Demands
- Monstrous Capacity
- SoftRAID: RAID Made Easy
- Beyond Hardware RAID
- Swap and Identify Drives Easily
- As Secure as a Bank Vault
- Secure Your Workflow with OWC ClingOn
- See More, Do More
OWC ThunderBay 8 External HDD Specs
Key Specs
| Storage Capacity |
64 TB
|
| Included Drives |
8x 8 TB 3.5" HDD
|
| Interface |
SATA III
|
| Number of Bays |
8x 2.5"/3.5"
|
| Inputs/Outputs |
2x USB-C Thunderbolt 3 (40 Gb/s)
1x DisplayPort 1.2 |
| RAID |
RAID 0/1/5/JBOD
|
Drives
| Storage Capacity |
64 TB
|
| Included Drives |
8x 8 TB 3.5" HDD
|
| Cache Memory per Drive |
256 MB
|
| Initial RAID Configuration |
RAID 5
|
| Interface |
SATA III
|
| Rotational Speed |
7200 rpm
|
General
| Number of Bays |
8x 2.5"/3.5"
|
| Inputs/Outputs |
2x USB-C Thunderbolt 3 (40 Gb/s)
1x DisplayPort 1.2 |
| Compatible Drive Interface |
SATA III
|
| Maximum Capacity |
With Drives Installed up to 960 TB (with Expansion)
|
| Form Factor |
Desktop
|
| RAID |
RAID 0/1/5/JBOD
|
| Bridge Chipset |
Intel JHL-6540
JMicron JMB-585 |
| Hot-Swap Support |
Yes
|
| Transfer Rates |
2586 MB/s (RAID Mode Unspecified)
1928 MB/s (Read in RAID 0) 2140 MB/s (Write in RAID 0) |
| UASP Support |
No
|
Software
| OS Compatibility |
Windows 10 or Later (64-Bit Only)
macOS 10.13 or Later |
Security
| Encryption |
No
|
| Security Features |
Kensington Security Slot, Lockable Bay Door
|
Electrical
| AC Input Power |
90 to 264 VAC, 50 / 60 Hz at 1.8 to 3.5 A
|
| DC Input Power |
12 VDC at 25 A
|
| Power Source |
AC Adapter
|
| PSU Wattage |
1 x 300 W
|
Environmental
| Operating Temperature |
41 to 95°F / 5 to 35°C
|
| Operating Humidity |
8 to 90% ()
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Storage Humidity |
5 to 95%
|
| Certifications |
BSMI, CE, FCC, RCM, VCCI
|
Physical
| Color |
Black
|
| Status Monitoring |
LED Indicator
|
| Cooling |
1x 92 mm Fan
|
| Material of Construction |
Aluminum
|
| Dimensions |
10.2 x 9.4 x 7.1" / 25.9 x 23.9 x 18 cm
|
| Weight |
27.9 lb / 12.7 kg
|
