Fishman AFX Acoustiverb Mini Acoustic Guitar Reverb Pedal

Multi-Reverb Pedal Voiced for Acoustic Instruments

Blending three quality reverbs with a voicing specifically tuned for acoustic instruments, the AFX Acoustiverb Mini reverb pedal from Fishman is a versatile and compact stompbox that makes it easy to add some space and sheen to your tone. Like all AFX Mini pedals, the AFX Acoustiverb features an innovative dual-path routing that lets you set up and choose between two separate FX loops over your stereo TRS cable, and 24-bit A/D/A conversion with 32-bit DSP ensures pristine sound quality over your signal chain. The low-profile case takes up minimal pedalboard real estate while remaining durable and tough thanks to its all-aluminum build.

This pedal requires a 9 VDC power supply to operate. A power supply is not included.

• Spring: recreates the classic sound of a spring-type reverb found in many electric guitar amplifiers
• Hall: an all-around reverb with natural, resonate spaces capable of replicating rooms both small and large, and sporting long decay times
• Plate: recreates the dense reflections and metallic characteristics of mechanical plate reverbs used throughout the '50s, '60s, and '70s

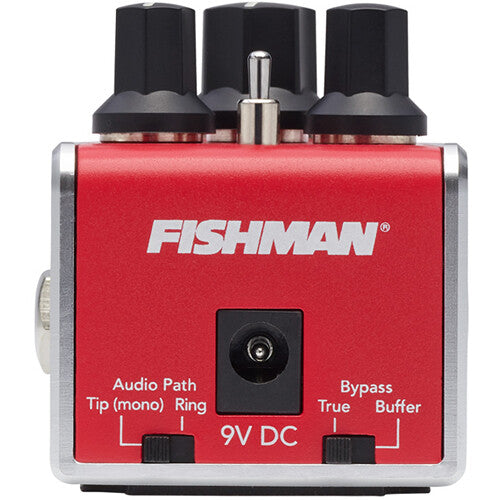

AFX Minis allow you to choose the audio path on which a particular effect will be processed. You do this by flipping the Audio Path switch on the front of the pedal.

Simply connect several AFX Minis together with TRS stereo guitar cables and set the Audio Path switch on each pedal to Tip or Ring. Pedals set to Tip will create one effect chain while pedals set to Ring will create another effect chain.

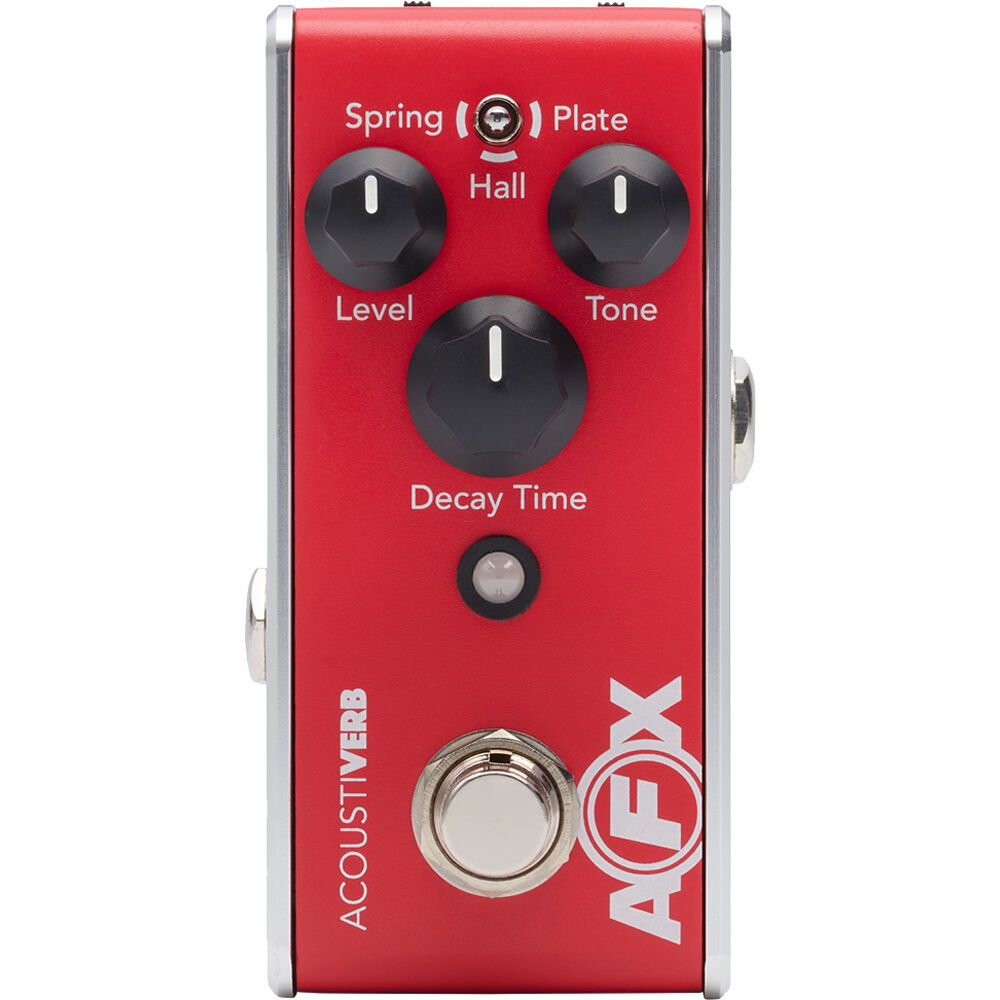

With the simple level control, you can mix the reverb in parallel to your original signal, so it doesn't overwhelm your sound. Tone control adds brightness or warmth to the reverb only, leaving your original signal untouched. Finally, decay time lets you determine how quickly the reverb tail decays into silence.

When the footswitch is pressed to bypass the effect and the LED is unlit, the reverb will continue to decay naturally to avoid an abrupt change in sound. The reverb spillover will only be effective when the bypass switch is set to Buffer.

To change this to a full mute, hold the footswitch while applying power to the pedal. The LED will flash to confirm this change.

With true bypass, the pedal's electronics are literally removed from the signal chain. For those who prefer a buffered bypass, AFX Mini effect pedals are switchable.

Fishman PRO-AFX-RV2Specs

Input Impedance	10 Megohms
Output Impedance	1 Kilohm
SNR	-100 dB
Dynamic Range	100 dB
A/D/A Converter	24-Bit
DSP	32-Bit

USB I/O	1 x USB-C Female Output
Audio I/O	1x 1/4" TRS Hi-Z/Instrument Input 1x 1/4" TRS Hi-Z/Instrument Output

Power Source	AC Adapter with Power Brick (Not Included)
DC Input Power	9 VDC
Operating Current	53 mA (Typical)

Color	Red
Material of Construction	Aluminum
Dimensions	3.8 x 1.92 x 1.9" / 9.7 x 4.88 x 4.8 cm
Weight	Not Specified by Manufacturer

Package Weight	0.625 lb
Box Dimensions (LxWxH)	5.6 x 2.9 x 2.6"
