| ₹ 3075.53 includes GST and import duties. | |
| B2B customers can avail ₹ 469.02 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

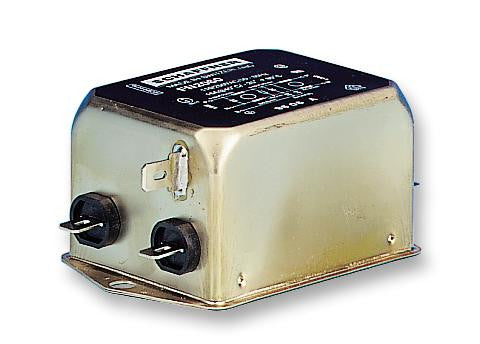

The FN2060-10-06 is a 10A/250VAC multi-stage general purpose EMI Filter, energy efficiency and reliability designed for easy and fast chassis mounting, provide an exceptional conducted attenuation performance, based on chokes with high permeable core material and excellent thermal behaviour.
Applications
Consumer Electronics, Medical, Communications & Networking
Product details
| Leakage Current Max | 734�A |
| Capacitance | 0.47�F |
| Filter Type | General Purpose |
| Filter Terminals | Quick Connect |
| Inductance Min | 800�H |
| Current Rating | 10A |
| Product Range | FN2000 Series |
| Voltage Rating | 250VAC |
Other details
| Brand | SCHAFFNER |
| Part Number | FN2060-10-06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3014.02 |
| 3-5 | ₹ 2983.26 |
| 5-10 | ₹ 2921.75 |
| 10+ | ₹ 2860.24 |
Bulk discount will be automatically applied during checkout based on quantity.
