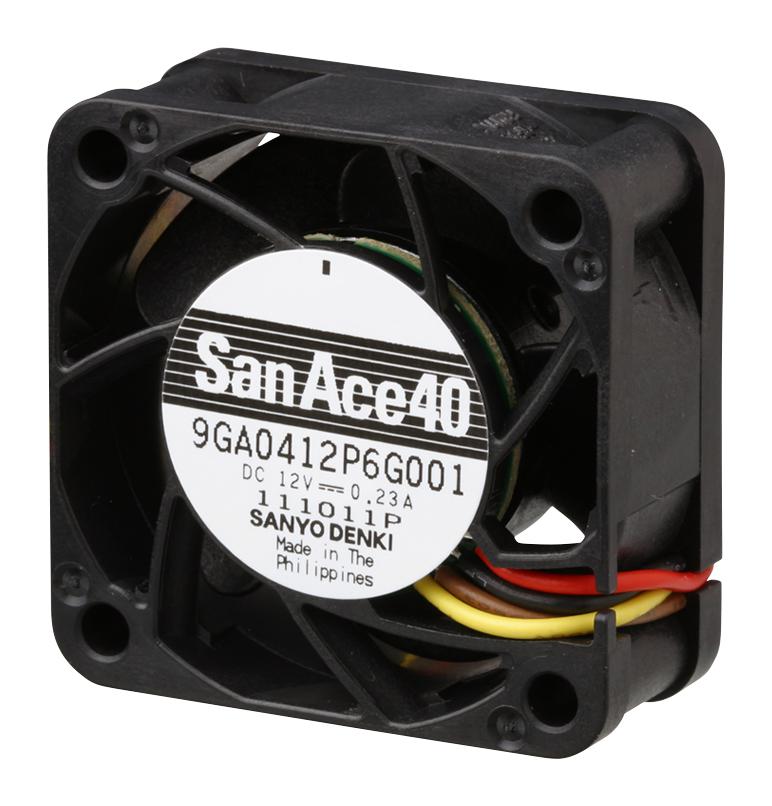

The 9GA0412P6G001 is a 12VDC 38mm 40x40x20mm Axial Fan with a ball bearing. The San Ace 40GA series fan features leaded UL1007 26AWG wire connection with +ve refers to red wire, -ve refers to black wire, sensor refers to yellow wire and control refers to brown wire. The high air flow and low power consumption fan comes with a plastic frame and impeller. Also comes with a current blocking function and reverse polarity protection motor. The direction of rotation of the fan is clock wise direction. The sound pressure level (SPL) is expressed as the value at 1m from air inlet side. It features that maximum air flow is increased by approximately 20%, maximum static pressure is increased by approximately by 107%, power consumption is reduced by approximately 50%, sound pressure level is reduced by approximately 4dB(A) compared with our conventional product.
- High air flow and high static pressure
- Energy-saving
- Low noise
- 40000 Expected life
- -10 to 70°C Operating temperature range
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
SANYO DENKI |
| Part Number |
9GA0412P6G001 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
| Manufacturer Catalogue EN |
|
