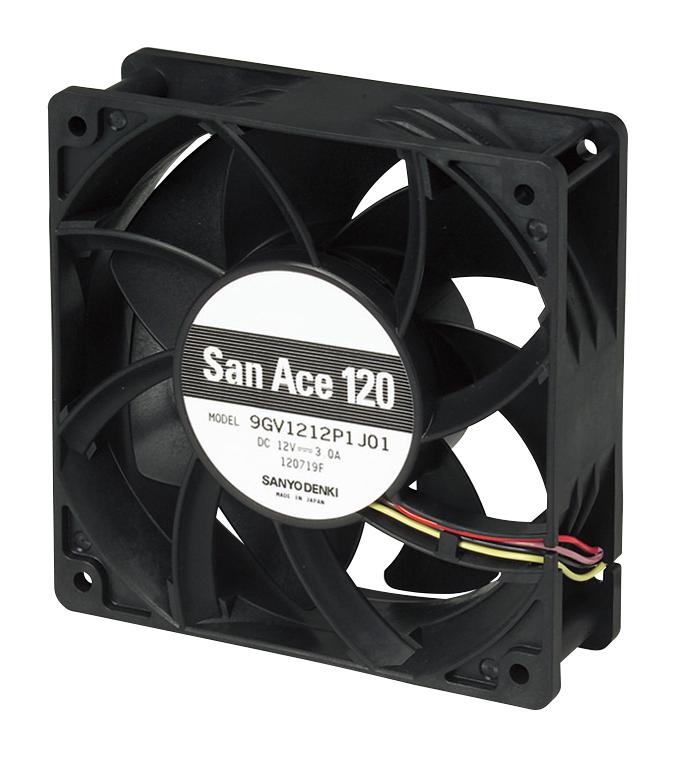

The 9GV1212P1J01 is a 12VDC 38mm thick Axial Fan with PWM speed control function and pulse sensors. Ball bearing and wire leaded power connection. This San Ace 120-series 9GV-type fan comes with plastic frame and impeller. UL1430, 24AWG +red and -black yellow sensor, brown control lead wire. Clockwise direction of rotation viewed from front of fan blade and continuously run in a free air state.
- UL94V-0 and UL94V-1 Flammability rating
- 1500/6400RPM Speed rating
- -20 to 70°C Operating temperature range
- 2.28/36W Rated power
- 0.08/1.45"-H2O Static pressure
- Ribbed frame
- Current blocking function (with reverse polarity protection)
- 10MR or more at 500VDC Megger (between lead conductor and frame) insulation resistance
- Burnout protection at locked rotor condition
- 1500VAC for one minute Dielectric strength
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
SANYO DENKI |
| Part Number |
9GV1212P1J01 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
| Product Change Notice EN |
|
