Description

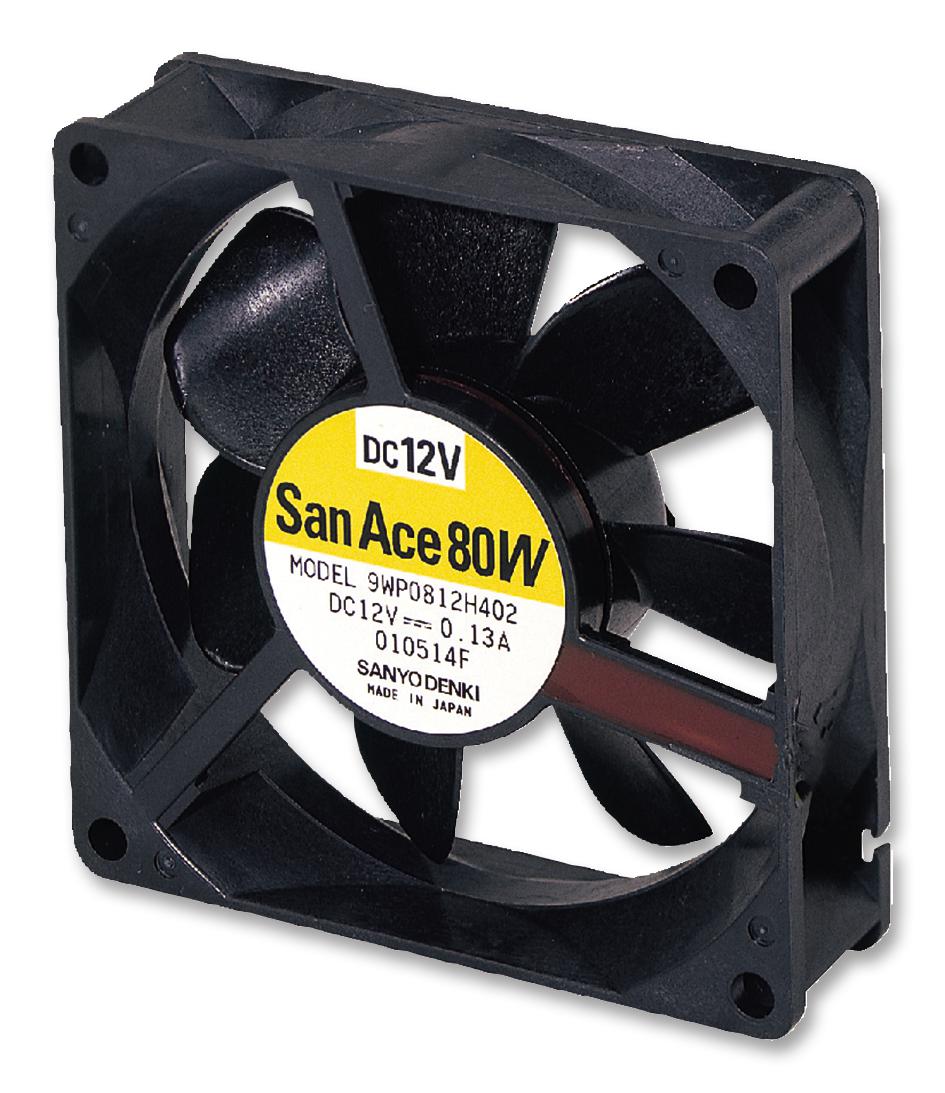

The 80W series 9WP type Splash Proof Fan can be installed in outdoor environments exposed to water. The 80W series fans are suitable for cooling solar inverters and equipment for outdoors use.
- UL94V-0 Flammability rated plastic frame
- UL94V-1 Flammability rated plastic impeller
- 40000/60°C, 60000/60°C Hours life expectancy
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Supply Voltage VDC: 12V |
| Fan Frame Type: Square |
| Fan Frame Size: 80mm |
| External Depth: 25mm |
| Bearing Type: Ball Bearing |
| Air Flow - CFM: 36.4CFM |
| Noise Rating: 29dBA |
| Power Rating: 1.56W |
| Rated Speed: 2900rpm |
| Power Connection Type: 3 Lead Wires |
| Current Rating: 130mA |
| IP Rating: IP68 |
| Air Flow - m3/min: 1.03m³/min |
| Product Range: San Ace 80W |
Other details
| Brand | SANYO DENKI |
| Part Number | 9WP0812H4011 |
| Quantity | Each |
| Technical Data Sheet EN |  |
