Description

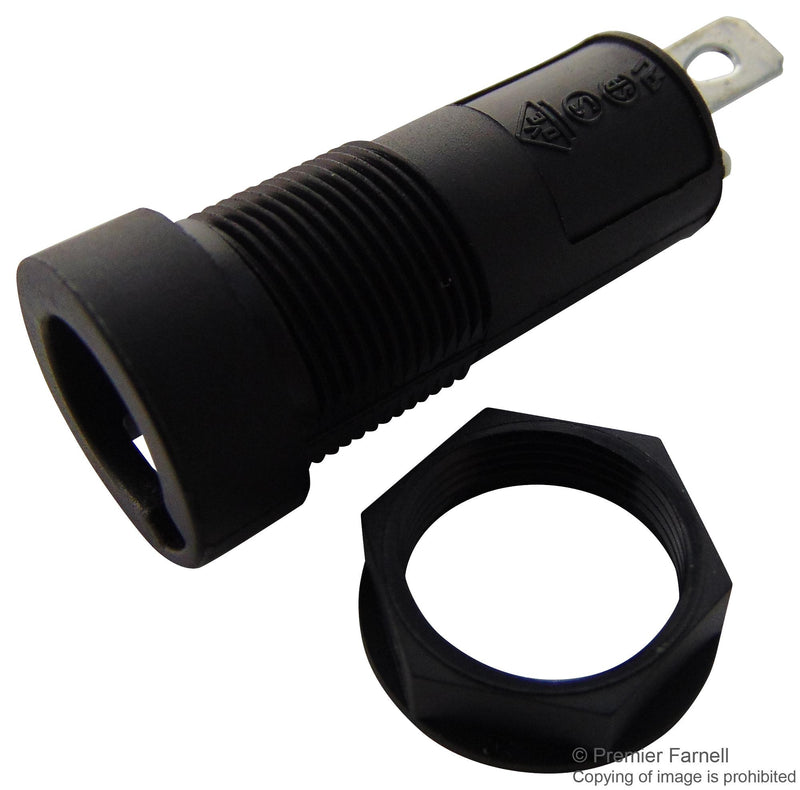

The 820 series from Littlefuse are panel mount, shock safe enclosed fuse holders. These fuse holders are compatible with 5mm x 20mm size fuses and are approved by UL, CSA, SEMKO, VDE, IEC 60127-6 standards.
- UL 94-V0 rated thermoplastic material
- Available in black colour
- Rated voltage of 250V
- Rated current of 6.3A (VDE) and 16A (UL/CSA)
- Rated power of 2.5W
- Solderable or 4.8mm quick connect terminals
- IP40 (IEC 60529) and PC2 (IEC 60127-6) protection
- Operating temperature range -25�C to 70�C
Applications
Industrial, Safety
Product details
| Fuse Holder Type | Enclosed Bayonet Style |
| Voltage Rating V AC | 250V |
| Fuse Current | 16A |
| No. of Fuses | 1Fuses |
| Product Range | 820 Series |
| Holder Terminals | Quick Connect |
| Voltage Rating V DC | 250V |
| Fuse Size Held | 5mm x 20mm |
Other details
| Brand | LITTELFUSE |
| Part Number | 82000000005 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 311.25 |
| 3-5 | ₹ 308.07 |
| 5-10 | ₹ 301.72 |
| 10+ | ₹ 295.37 |
Bulk discount will be automatically applied during checkout based on quantity.
