| ₹ 501.68 includes GST and import duties. | |
| B2B customers can avail ₹ 76.51 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

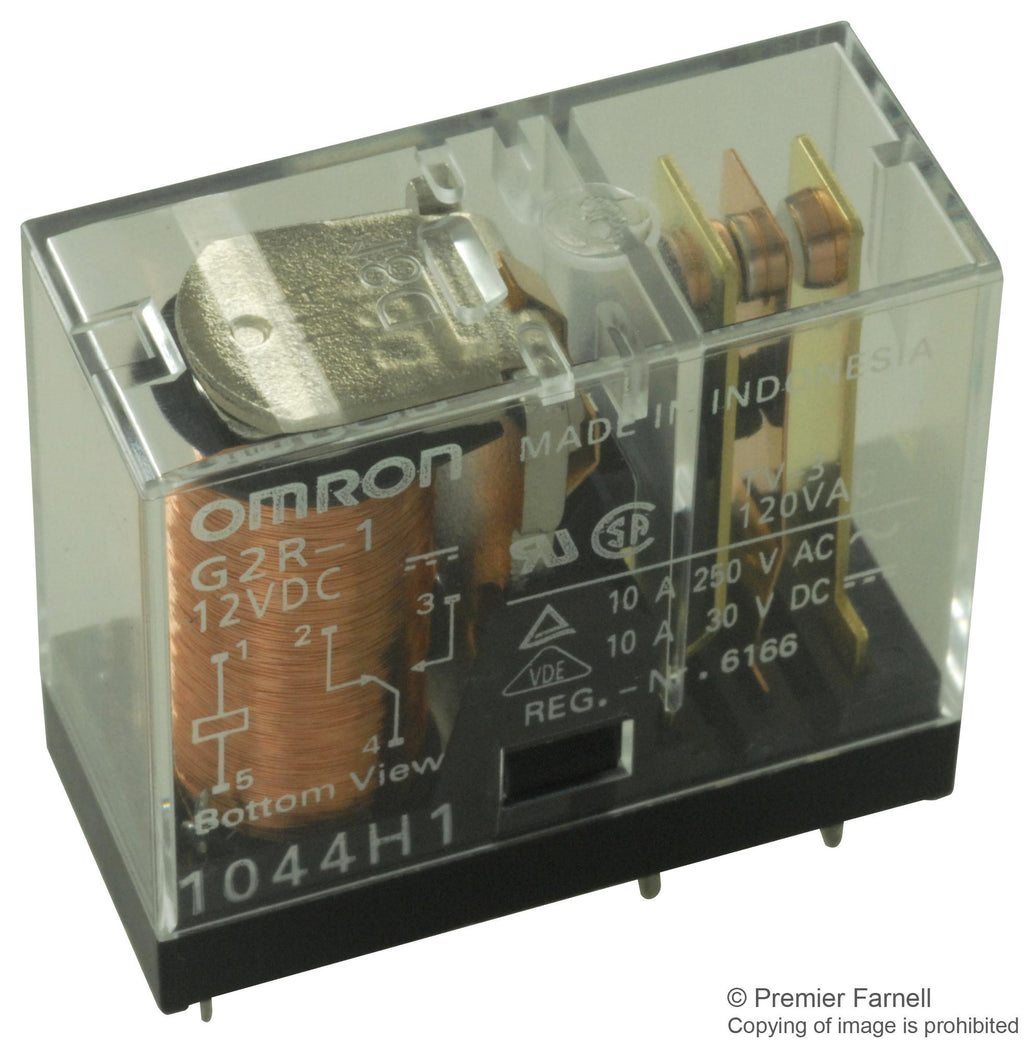

The G2R-1 12DC is a 1-pole general-purpose Power PCB Relay with AC coil, G2R series. 1CO (SPDT) contact configuration. Standard classification, PCB terminal. Safety-oriented design with dielectric strength of 5000V between coil and contacts and surge resistance of 10000V.
- Single-side stable relay
- Flux protection enclosure
- SPST-NO, SPDT, DPST-NO, DPDT contact configurations
- UL, CSA and VDE standards approved
- Single and bifurcated contacts available
- Available in 3A, 4A, 5A, 8A, 10A and 16A switching current based on models
- Selectable coil voltage of 5VDC, 6VDC, 12VDC, 24VDC, 48VDC, 100VDC, 100/(110)VAC and 200/(220)VAC
Applications
Industrial, Power Management, Automation & Process Control, Consumer Electronics
Product details
| Contact Material | Silver Alloy |
| Relay Mounting | Through Hole |
| Coil Type | Non Latching |
| Coil Resistance | 275ohm |
| Product Range | G2R Series |
| Relay Terminals | Solder |
| Contact Current | 10A |
| Approvals & Standards | CSA, IEC, UL, VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 12VDC |
| Contact Configuration | SPDT |
| Contact Voltage VDC | 30VDC |
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G2R-1 12DC |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 491.65 |
| 3-5 | ₹ 486.63 |
| 5-10 | ₹ 476.6 |
| 10+ | ₹ 466.56 |
Bulk discount will be automatically applied during checkout based on quantity.
