| ₹ 2712.37 includes GST and import duties. | |
| B2B customers can avail ₹ 413.64 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

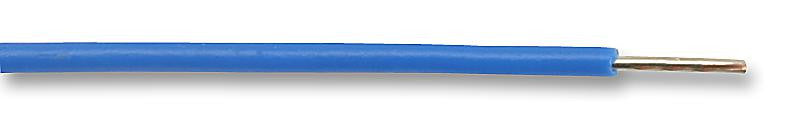

The SPC00440A series from Brand Rex are PTFE insulated equipment wire. These are widely used for internal and external connections in electronic equipment and instrumentation where it demands high level of thermal, chemical, electrical or mechanical protection. PTFE is highly resistant to oils, lubricants, fuels and is non flammable whilst being very flexible.
- Silver plated solid and stranded copper conductors
- Jacket insulated in PTFE to BS3G210
- Ideal for use where a high level of reliability is required
- Conductor size of 26AWG and 1x0.40mm (Max Strands x Strand Size)
- Voltage rating of 300Vrms
- Operating temperature range 190�C
- Available in variety of jacket colours and cable length
Applications
Industrial, Power Management
Product details
| Reel Length (Metric) | 25m |
| Conductor Material | Silver Plated Copper |
| Jacket Material | PTFE |
| Approval Specification | - |
| External Diameter | 0.75mm |
| Voltage Rating | 300V |
| Reel Length (Imperial) | 82ft |
| Product Range | - |
| Wire Gauge | 26AWG |
| Jacket Colour | Blue |
| No. of Max Strands x Strand Size | Solid |
| Conductor Area CSA | 0.128mm� |
Other details
| Brand | BRAND REX |
| Part Number | SPC00440A004 25M |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2658.12 |
| 3-5 | ₹ 2631.0 |
| 5-10 | ₹ 2576.75 |
| 10+ | ₹ 2522.5 |
Bulk discount will be automatically applied during checkout based on quantity.
