Description

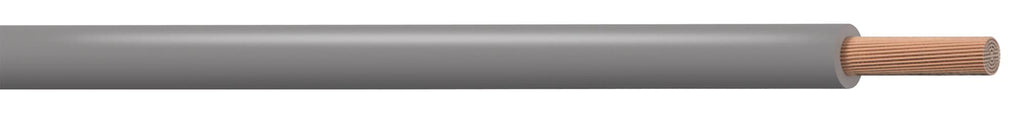

The PP001228 from Pro Power is a single core, grey colour tri-rated flexible PVC equipment wire in 100m reel length. This high temperature, flame retardant wire is designed to use in switch control, relay and instrumentation panels of power switchgear. It is widely used for internal connection in rectifier equipment, motor starters and controllers. This wire has voltage rating (Uo/U) of 450V/750V (UL, CSA), 600V/1KV (BS 6231) & 300V/500V, 450V/750V (BS EN 50525-2-31). It is also referred as BS 6231 cable, H07V2-K or panel wire. This PVC equipment wire is made in accordance with BS EN 50525-2-31, BS 6231 type CK, UL 758, UL 1015, CSA C22.2 No. 210 (HD 21.7 S2) #LL246095 and BS EN/IEC 60332 standards.
- Class 5 flexible copper conductor according to BS EN 60228 standard
- PVC (polyvinyl chloride) type TI3 insulation according to BS EN 50363 standard
- Temperature rating of 105�C (UL, CSA) and 90�C (BS 6231)
- Nominal cross sectional area is 0.5mm� and nominal thickness of insulation is 0.8mm
- Wire size of 21AWG
- Nominal overall diameter of 2.7mm
- Minimum bending radius of 6 x overall diameter
- Maximum resistance of conductor 39ohm/Km at 20�C
- Peak current rating of 11A and voltage drop of 46mV/A/m
Applications
Industrial
Product details
| Reel Length (Metric) | - |
| Conductor Material | Copper |
| Jacket Material | PVC |
| Approval Specification | BS 6231 Type CK, BS EN 50525-2-31, BS EN/IEC 60332, CSA C22.2 No. 210, UL 758 |
| External Diameter | 2.7mm |
| Voltage Rating | 600V |
| Reel Length (Imperial) | - |
| Product Range | - |
| Wire Gauge | 21AWG |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 16 x 0.2mm |
| Conductor Area CSA | 0.5mm� |
Other details
| Brand | PRO POWER |
| Part Number | PP001228 |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
