Description

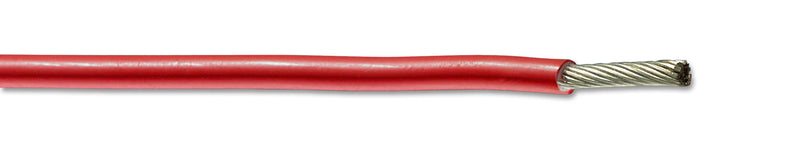

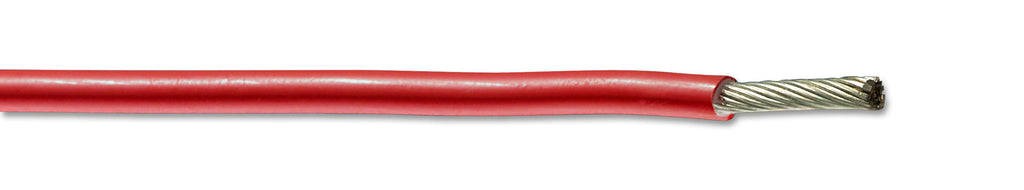

The 44A0111 series from TE Connectivity are hook up wires. These Hook up wire features outstanding physical and electrical characteristics of radiation, highly flame retardant, non melting, does not cold flow and mechanically easy handling. Designed mainly for military application where high density and complex circuitry are required.
- Single primary wire
- Tin coated copper conductor
- Unshielded & unjacketed cable
- Conductor size of 30AWG to 8AWG
- Operating temperature range -65�C to 150�C
- Primary wire insulation are available in multiple colour
- Small size, light weight
- Resistant to most chemicals
- Low smoke and low corrosive gas generation
- Flame retardant
- Flexible
Applications
Industrial, Power Management, Aerospace, Defence, Military
Product details
| Reel Length (Metric) | 100m |
| Conductor Material | Copper |
| Jacket Material | PVDF |
| Approval Specification | - |
| External Diameter | 1.02mm |
| Voltage Rating | 600V |
| Reel Length (Imperial) | 328ft |
| Product Range | - |
| Wire Gauge | 24AWG |
| Jacket Colour | Red |
| No. of Max Strands x Strand Size | 19 x 0.127mm |
| Conductor Area CSA | 0.24mm� |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | 44A0111-24-2 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
| Drawing EN | |
