Description

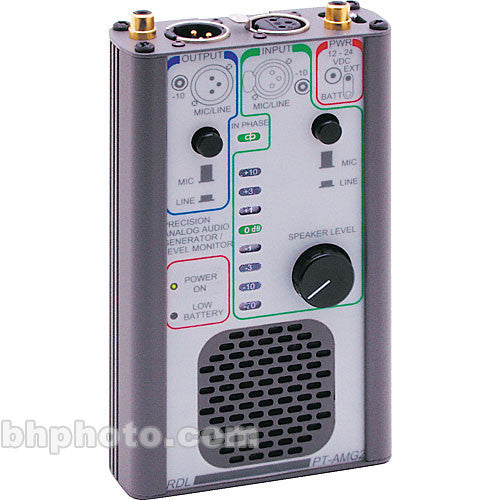

The PT-AMG2 from RDL , is a precision analog-audio generator/level monitor, that features a precision audio oscillator, precision level meter and a monitor speaker. The portable unit is a good choice for applications requiring both a stable audio signal source, and precision metering for audio system verification, alignment and testing.
The oscillator operates at 700Hz. Its output is compared against an internal, temperature-stable reference that provides the stable output required for accurate bench-top audio testing. This section features two outputs, one balanced (selectable between microphone and line level,) the other unbalanced. The outputs are able to maintain consistent level, regardless of impedance.
The audio metering circuit features two inputs, again one balanced (selectable between microphone and line level,) the other unbalanced. Either input may be used to feed the metering circuit, which is automatically referenced to the input being used. The LED meter is backlit, making the PT-AMG2 readable in light or dark environments.
The unit is also able to adjust gain in multiple directions, between microphone and line, balanced or unbalanced levels. It operates either from two internal 9V batteries, or from an external power supply. Neither is included. When operated from the batteries, a "Low Battery" LED glows steadily when less than one hour operating time remains.
- Portable audio generator and monitor
- Microphone and line level audio tone metering
- Selectable microphone/line level input and output
- Precision stable audio reference
- Supports both balanced and unbalanced inputs
- Operates from 9V batteries or via a 24Vdc external power supply ( not included
- Reference level can be set for +4dBu or +6dBu
- Suitable for both portable or bench operation
| Frequency Range | Oscillator Frequency: 700Hz, nominal |
| Input Connections | 2 x XLR 2 x RCA phono |
| Output Connections | 2 x XLR 2 x RCA phono |
| Input Impedance | Not applicable |
| Output Impedance | Not applicable |
| Output Level | Balanced Line: +4dB (+6dBu switch selectable, 2.5k? load) Balanced Mic: -46dBu (2.5k? load, 50dB below +4dBu) Unbalanced Line: -10dBV |
| THD & Noise | Not applicable |
| Power and Battery | 2 x 9V Batteries ( not included ) 12 to 30Vdc @ 45mA External Power Supply ( not included ) |
| Dimensions (WxDxH) | 3.8 x 1.39 x 6.35" (97 x 25 x 161mm) |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 2.25 lb |
| Box Dimensions (LxWxH) | 6.4 x 6.3 x 5.5" |
- Test Leads
- Bench-Top Stand
- Three (3) Year Warranty
