Description

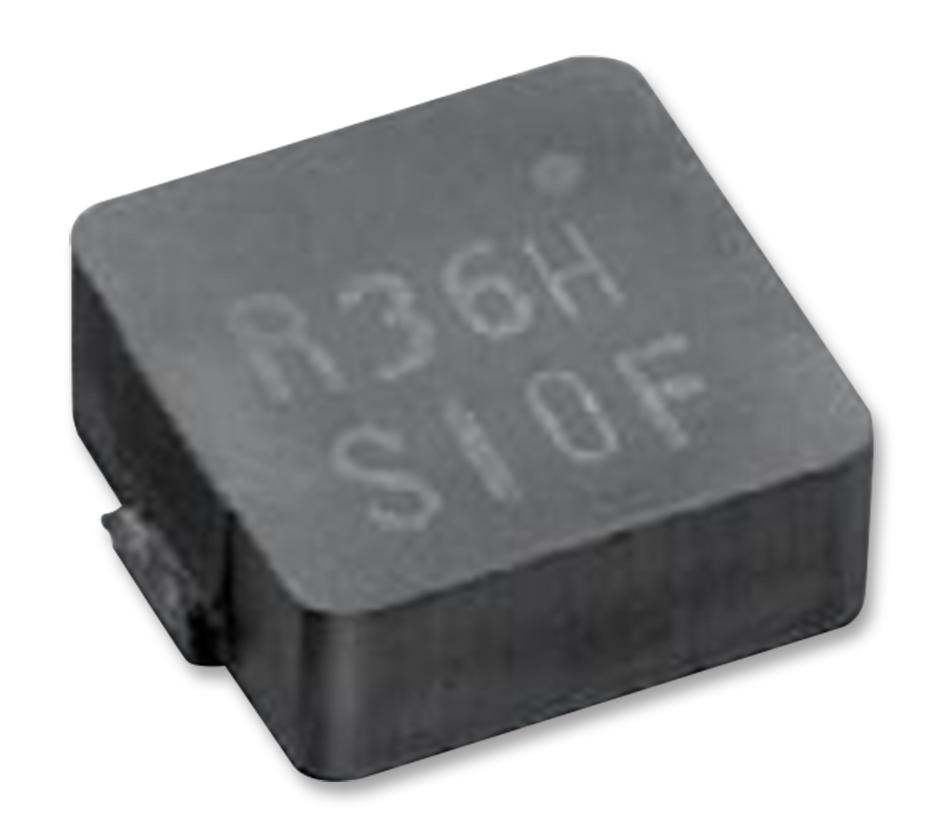

The MPCH series Metal Composite Inductor designed for use in power supplies with ripple currents up to 32 A. The large-current power inductors offer superior permeability when compared to technologies based on ferrite cores. The flat wire design allows for high efficiency under high-current loads. It is suitable for switching DC-DC power supplies, notebook computers, tablets, embedded computer systems, server and storage and HDTVs.
- Improved power supply efficiency with composite metal core
- Metal cores reduce core losses and improve power supply efficiency at light loads
- Used as part of a filter or for energy storage
- High permeability for higher inductance with lower DC resistance
- Low losses at higher switching frequencies
- Moulded metal structure reduces acoustic noise
- Higher current power and saturation in smaller packages
- Operating temperature up to +125°C
- Low acoustic noise
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Inductance: 1.3µH |
| RMS Current (Irms): 18.5A |
| Inductor Construction: Shielded |
| Saturation Current (Isat): 17A |
| Product Range: MPCH Series |
| DC Resistance Max: 0.0013ohm |
| Inductance Tolerance: ± 20% |
| Product Length: 11.7mm |
| Product Width: 10mm |
| Product Height: 5.5mm |
Other details
| Brand | KEMET |
| Part Number | MPCH1055L1R3 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
