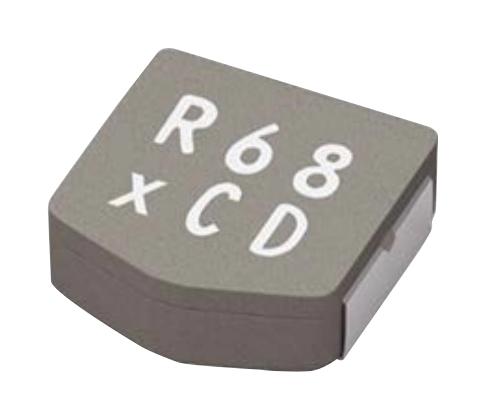

Kemet MPXV1D0530L6R8 MPXV1D0530L6R8 Power Inductor (SMD) AEC-Q200 6.8 µH 3.5 A Shielded 4 Mpxv Series 2020 [5050 Metric]

The KEMET MPXV metal composite inductors are ideal for use in DC to DC switching power supplies for automotive applications. The metal composite core has high saturation capabilities maintaining functionality with high current transients and is characterized by temperature stable inductance. These products are ideal for automotive ECU applications such as LED headlights, meter cluster panels, HUDs, electric oil or water pumps, EPS.

• Metal composite powder
• Shielded construction, SMD configuration
• Operating temperature up to +155°C
• Low acoustic noise
• AEC-Q200 qualified

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	KEMET
Part Number	MPXV1D0530L6R8
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
Application Note EN
