| ₹ 159.97 includes GST and import duties. | |
| B2B customers can avail ₹ 24.4 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

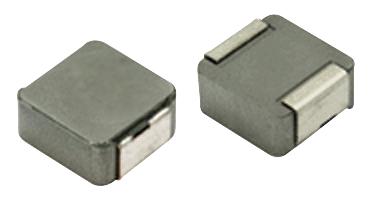

This is a Power Inductor (SMD), 3.3 µH, 9.2 A, 20 A, IHLP-3232DZ-01 Series, 8.64mm x 8.18mm x 4mm, Shielded product from VISHAY with the model number IHLP3232DZER3R3M01
Product details
| Inductance | 3.3µH |
| RMS Current (Irms) | 9.2A |
| Inductor Construction | Shielded |
| Saturation Current (Isat) | 20A |
| Product Range | IHLP-3232DZ-01 Series |
| Power Inductor Case | 8.64mm x 8.18mm x 4mm |
| DC Resistance Max | 0.0177ohm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | VISHAY |
| Part Number | IHLP3232DZER3R3M01 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Technical Page (489.67KB) EN | |
| Manufacturer Catalogue EN | |
| Manufacturer Product Page EN | |
| Application Note EN | |
| One Page Summary EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 156.77 |
| 3-5 | ₹ 155.17 |
| 5-10 | ₹ 151.97 |
| 10+ | ₹ 148.77 |
Bulk discount will be automatically applied during checkout based on quantity.
