Description

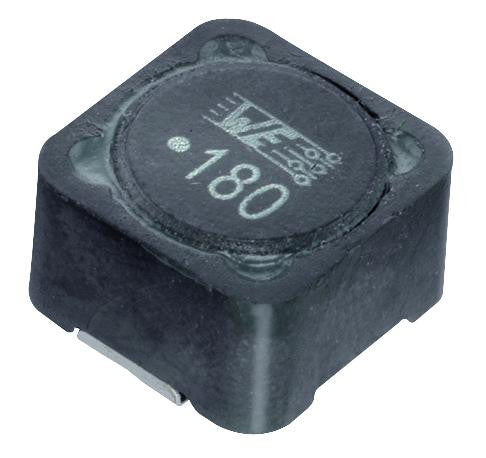

The Wurth Elektronik WE-PD series are magnetic shielded power inductors. The inductance value ranges from 0.47�H to 1500�H.
- EIA 7332, 7345, 1030, 1050, 1245, 1260, 1280, 1210, 6033, 6050 case sizes available
- Magnetic shielding results in low leakage field
- High storage capacity
- Low self losses
- Highest possible current loading
- Operating temperature range -40�C to 125�C
- Suitable for reflow soldering process
- Available in metal and plastic base
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Inductance Tolerance | � 20% |
| RMS Current (Irms) | 930mA |
| Saturation Current (Isat) | 1.05A |
| Power Inductor Case | 7.3mm x 7.3mm x 4.5mm |
| Inductance | 56�H |
| Inductor Construction | Shielded |
| Product Range | WE-PD Series |
| DC Resistance Max | 0.35ohm |
| Packaging | Cut Tape |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 7447779156 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
