AIDA Imaging HD-NDI-CUBE Overview

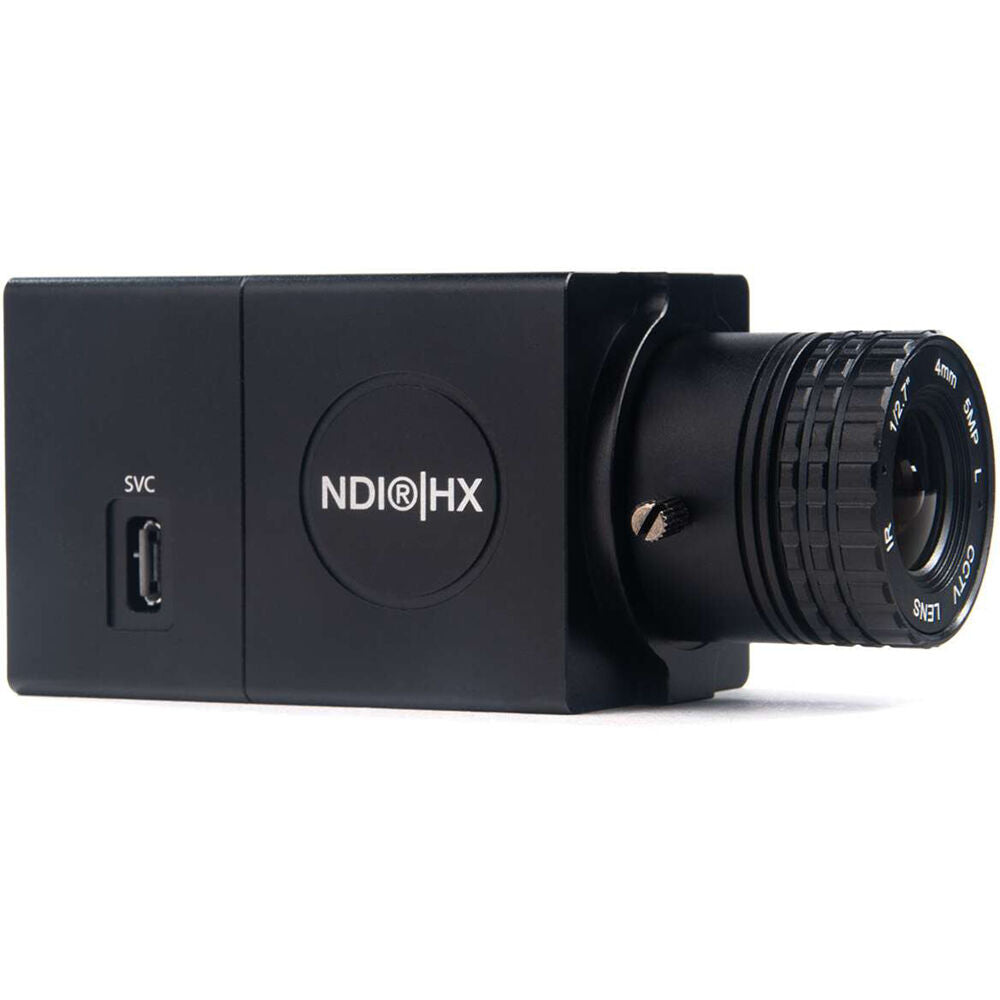

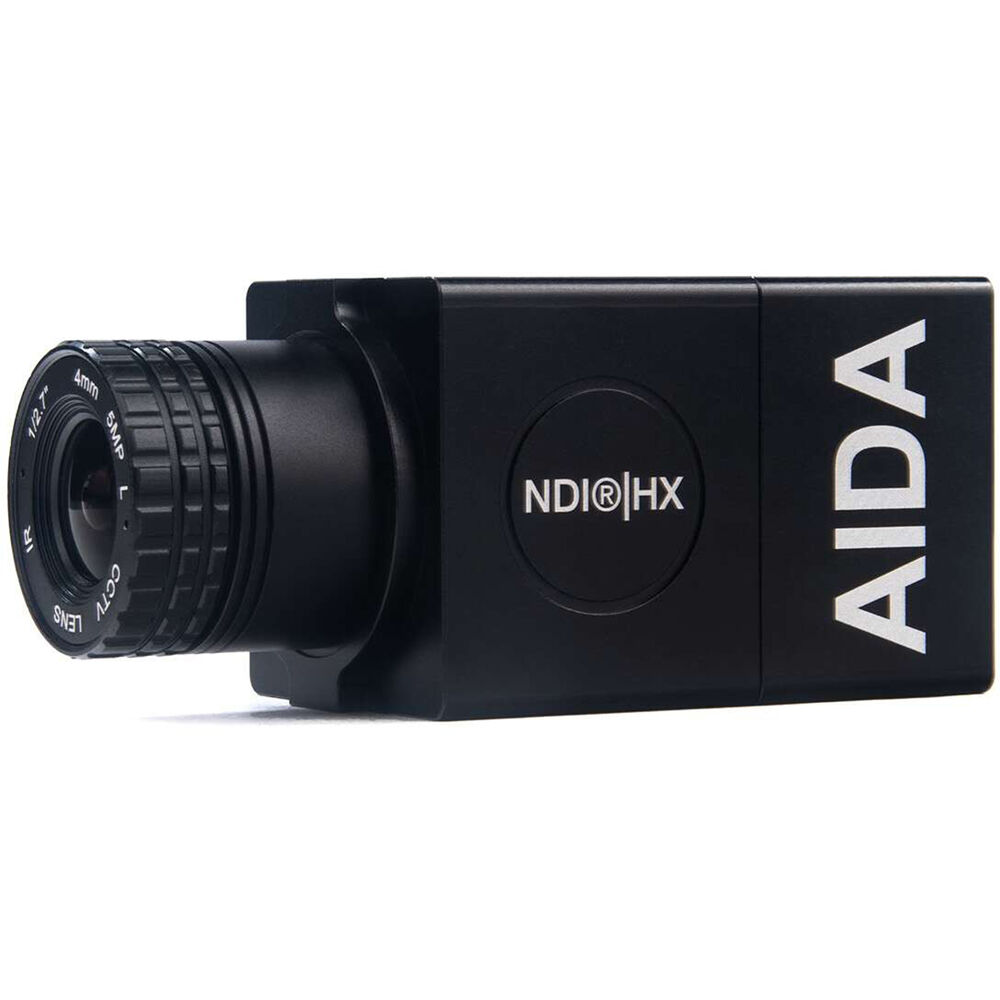

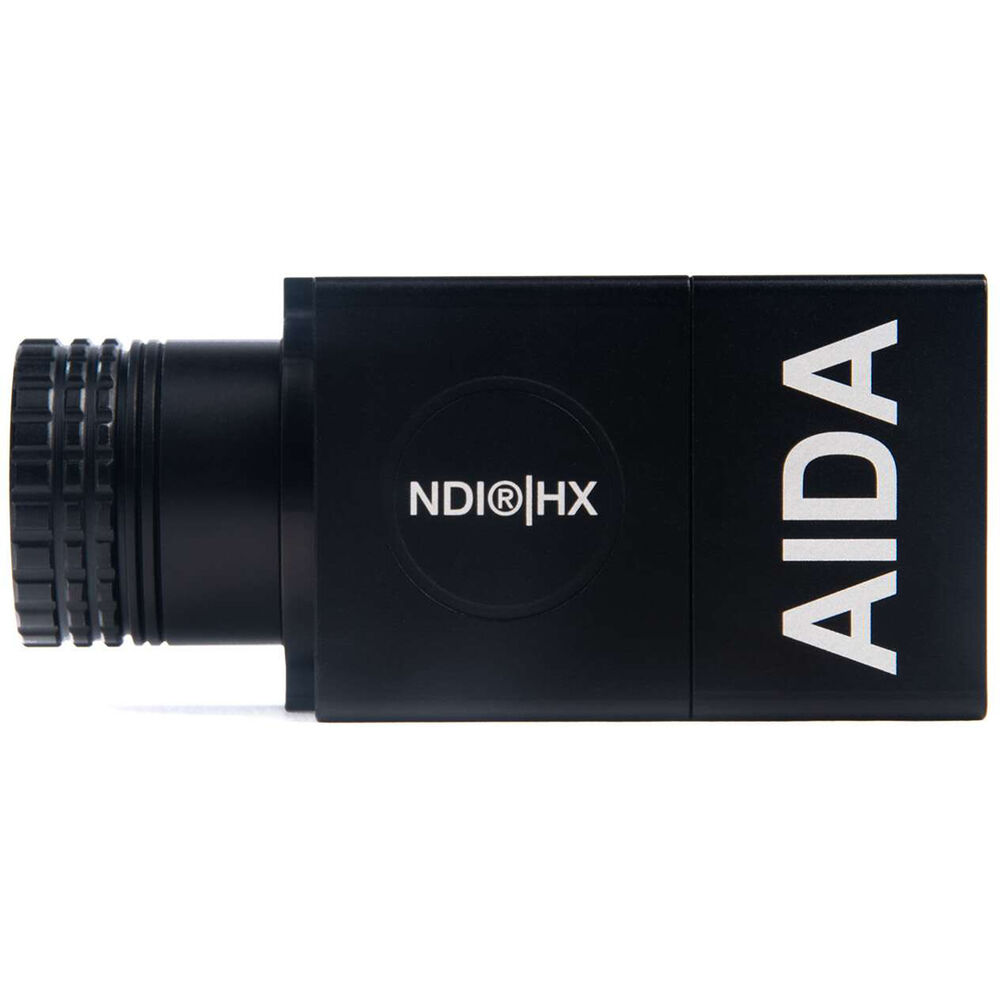

The Compact Full HD NDI|HX/IP Streaming POV Camera from AIDA brings simultaneous IP and NDI output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields. The compact camera outputs variable-frame rate IP streaming via RTSP/RTMP and/or NDI|HX with up to 1080p60 resolution.

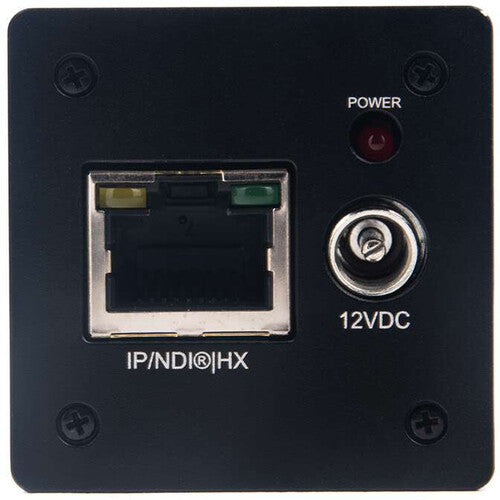

An RJ45 port carries both RTSP/RTMP streaming and NDI|HX over a single Ethernet cable, and it supports the VISCA-over-IP control protocol. The camera can be powered using the included power adapter or by using the included PoE dongle on a PoE-supported network. It features a C/CS lens mount and comes with a 4mm HD lens pre-installed. NDI|HX is a bidirectional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and multichannel audio in real time.
Compact miniature camera for POV streaming applications in broadcast, education, medical, live production, and other fields
Full HD 1/3" progressive scan CMOS sensor capable of 1080p60 NDI|HX video
Accessible Web UI to stream directly to social media platforms and control image parameters over IP
Versatile design with top and bottom tripod mounts for unique shot creation
USB service port for easy network setting adjustments and updates
4mm HD lens pre-installed
VISCA-over-IP control support
In the Box
- AIDA Imaging Compact Full HD NDI HX/IP Streaming POV Camera
- PoE Dongle Adapter
- 12 VDC Power Supply with Plug Adapter Kit
- USB Cable
- C-Mount Cap Adapter
- Sensor Cap
AIDA Imaging HD-NDI-CUBE Specs
Inputs / Outputs
| USB I/O |
1 x Micro-USB Female Input |
Power
| Power Source |
AC Input, PoE |
| DC Input Power |
12 VDC |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
Physical
| Dimensions |
3.4 x 1.6 x 1.6" / 86 x 40 x 40 mm |
| Weight |
6.3 oz / 180 g |
Packaging Info
| Package Weight |
1.435 lb |
| Box Dimensions (LxWxH) |
10.1 x 5.1 x 4.1" |
AIDA Imaging HD-NDI-CUBE Reviews
