Description

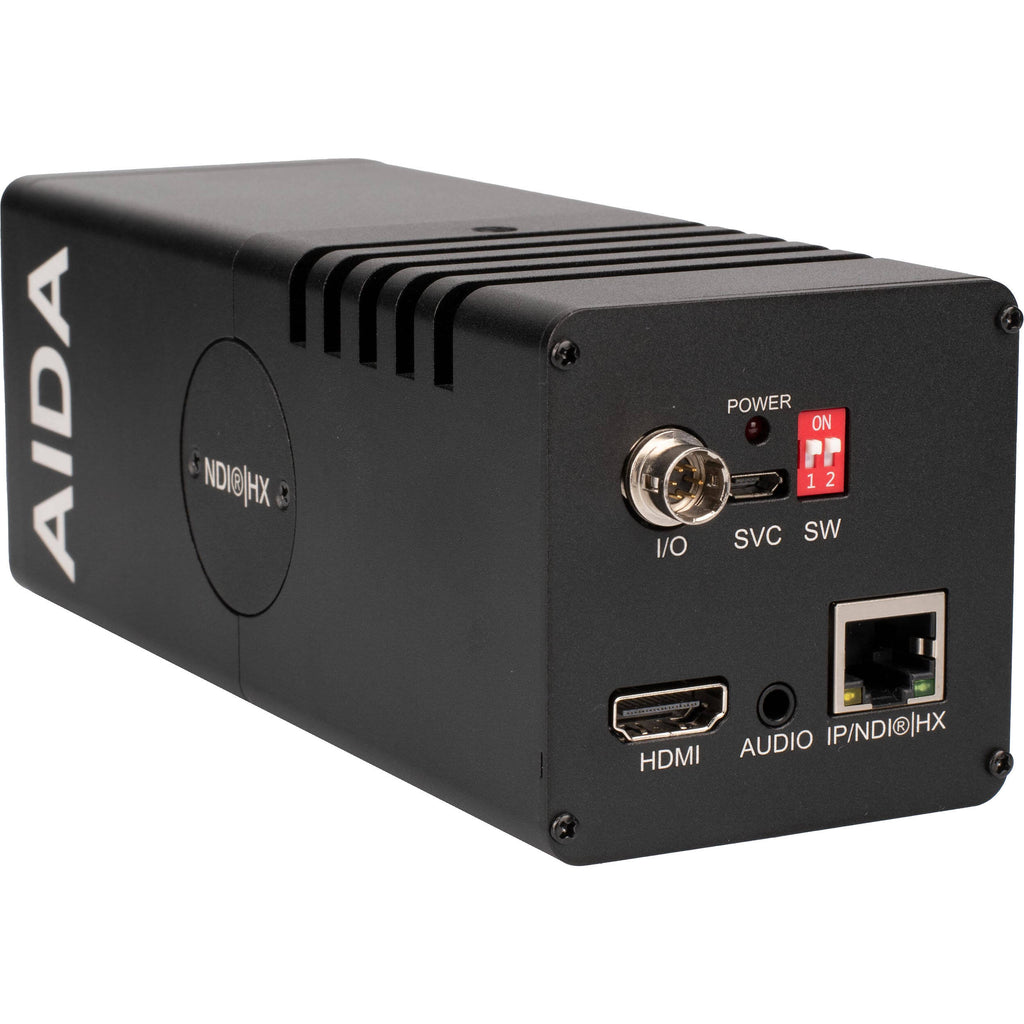

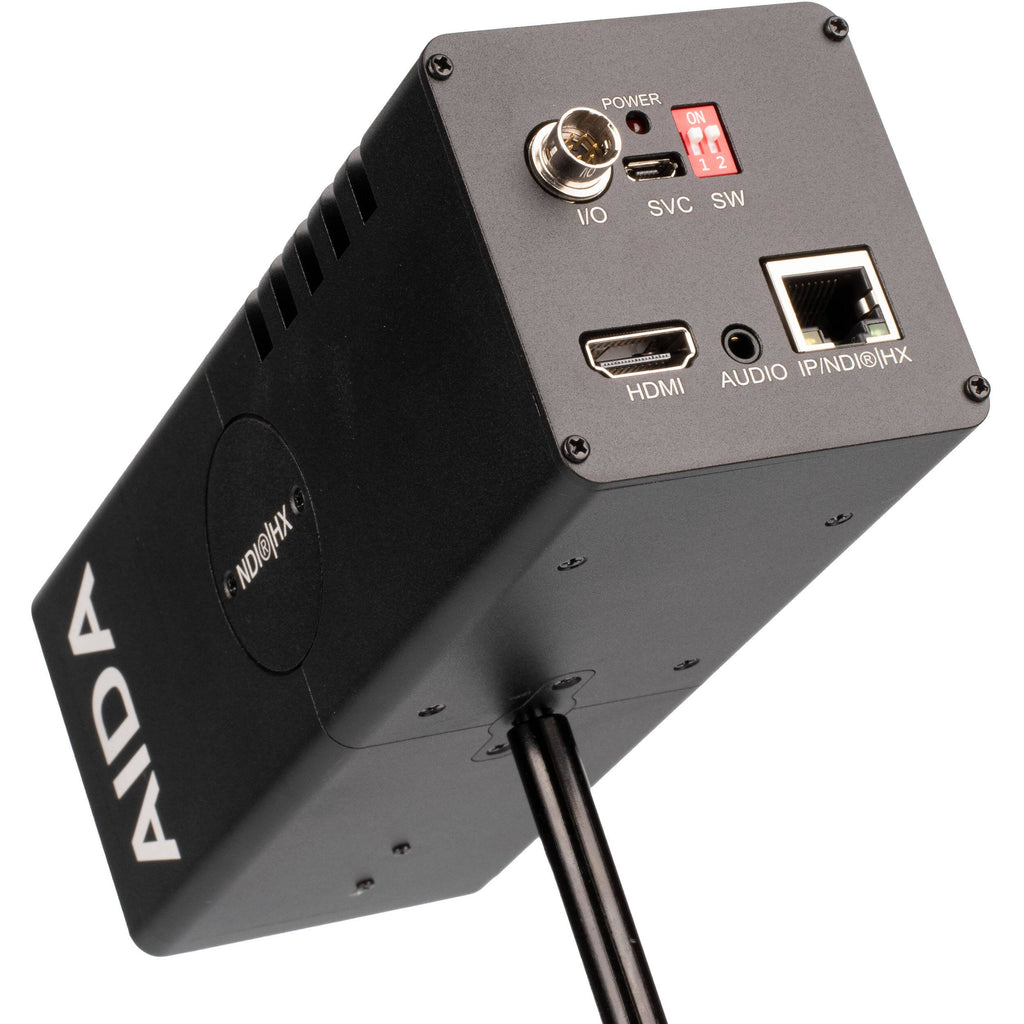

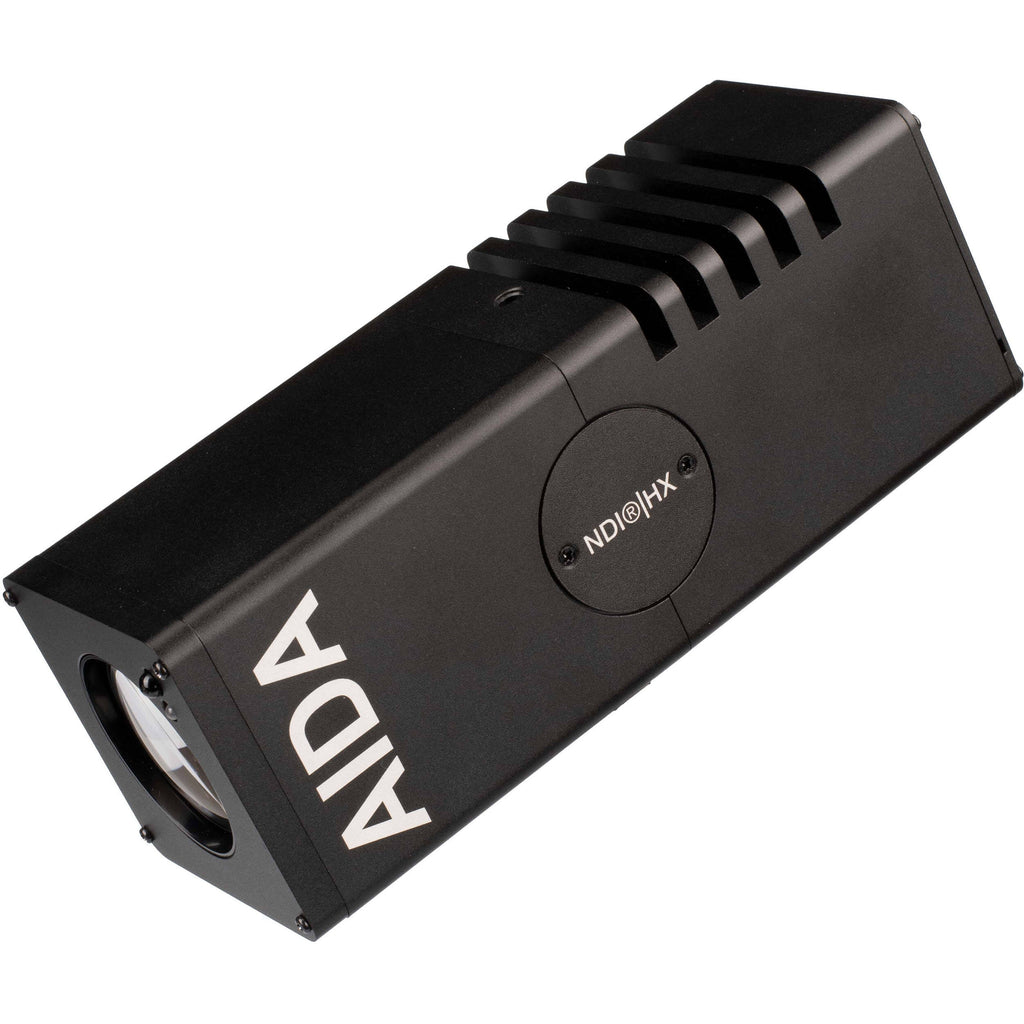

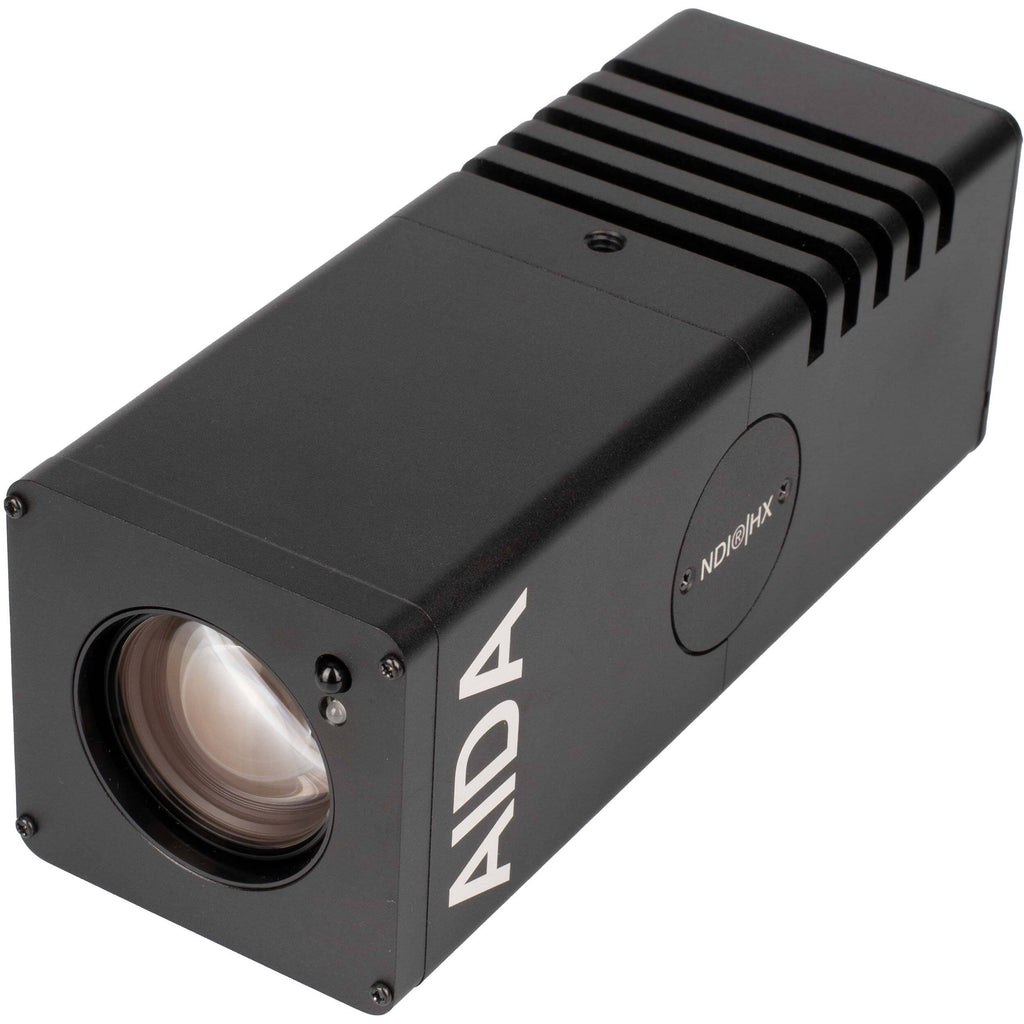

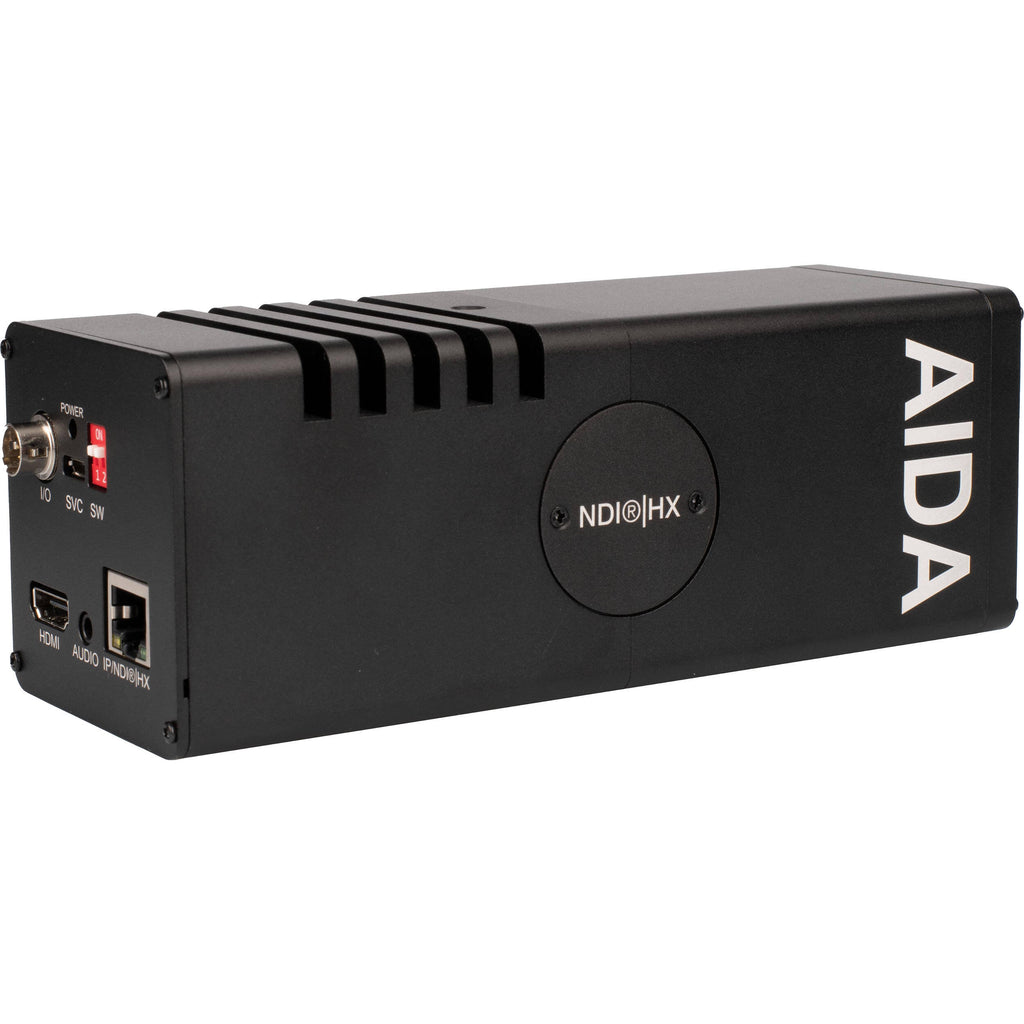

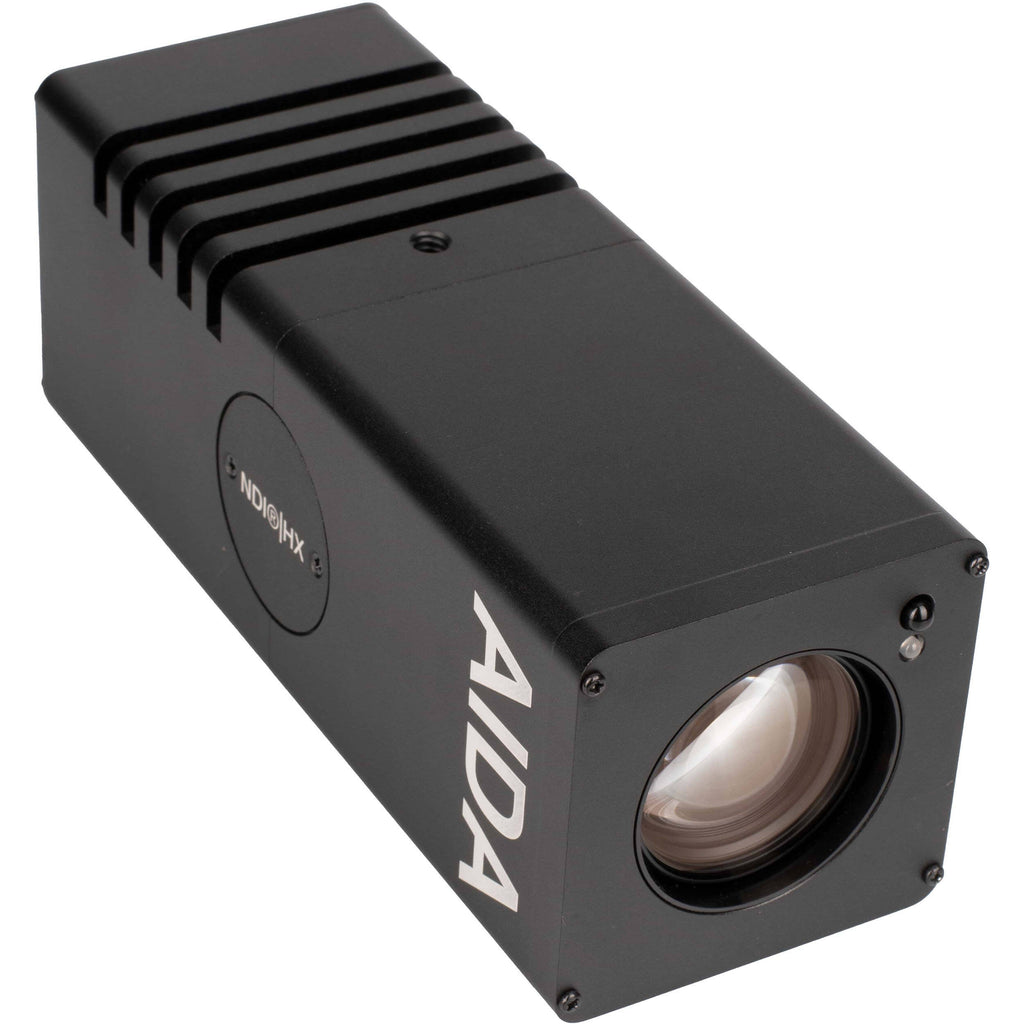

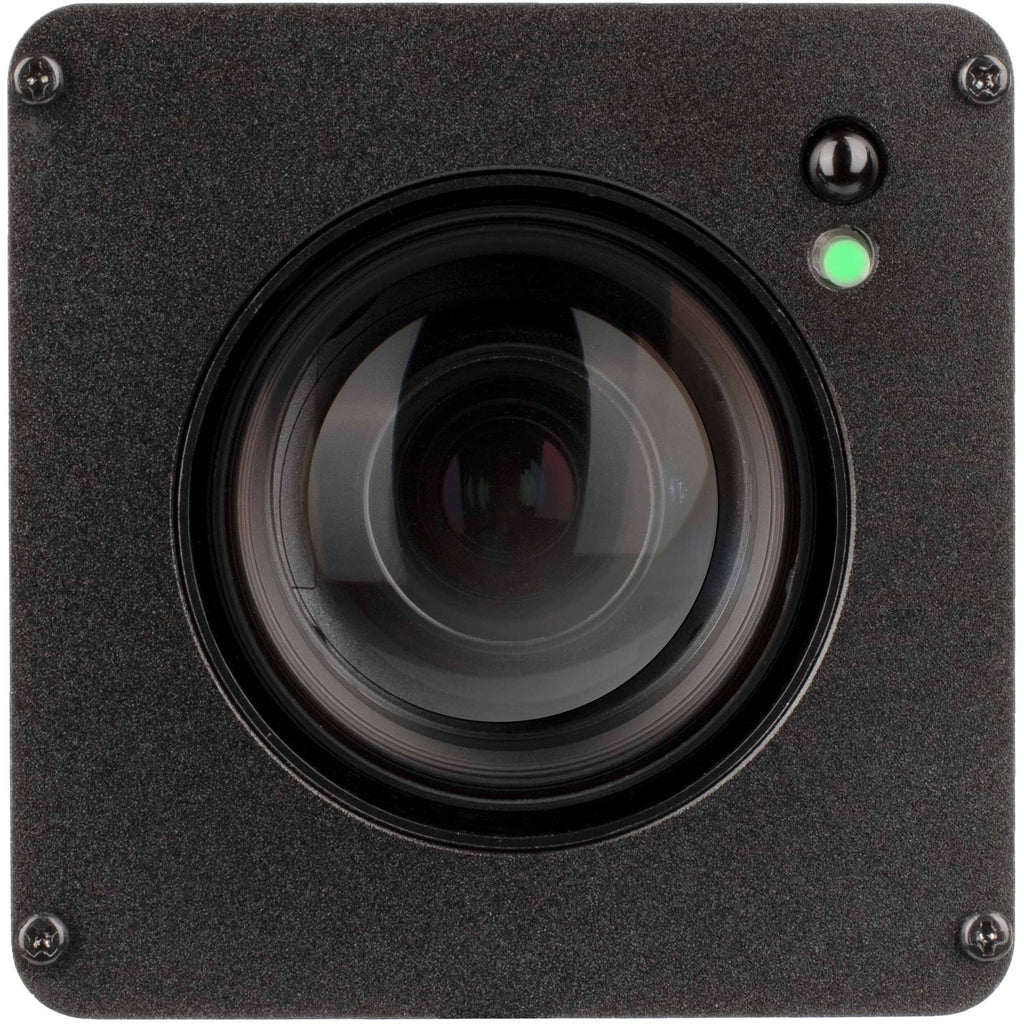

AIDA Imaging HD-NDI-X20 Overview
Perfect for integration into your preexisting NDI|HX setup, this Full HD NDI|HX IP POV Camera from AIDA Imaging features an integrated NDI|HX license and full HD HDMI and IP outputs for high-quality footage in broadcast and live event streaming applications. The camera features a 1/2.8" CMOS image sensor and 20x optical zoom with autofocus to capture clear HD video. A 3.5mm TRS stereo audio input allows you to embed audio into your NDI|HX stream.
Deliver power and RS-485 serial zoom control using the 6-pin I/O port and included breakout cable. Other image parameters are adjustable via WebUI and the included IR Remote. PoE+ support reduces cable runs for power, control, and video over a single cable. Update your camera's firmware via the micro-USB port. A tally light indicator at the front of the camera lets your talent know when you're live.
- WebUI streams directly to social media platforms, control image parameters via IP
- 20x optical zoom for full HD shots up to 140'
- I/O breakout cable with power and control via serial RS-485
- Relay multi-channel embedded audio via NDI|HX
- PoE+ compatibility reduces cable runs
- Two 1/4"-20 mounting threads
- Integrated front tally light
- Supports UDP|IP, RTSP, RTMP, SRT, VISCA Over IP, and NDI|HX protocols
In the Box
- AIDA Imaging Full HD NDI HX IP POV Camera with 20x Optical Zoom
- IR Remote Control
- Breakout Cable
- 12 VDC Power Supply with Adapters
- Limited 2-Year Manufacturer Warranty
Additional Resources
AIDA Imaging HD-NDI-X20Specs
| Zoom |
20x (Optical)
|
| Field of View |
61° (Wide)
3.4° (Tele) |
| Minimum Illumination |
0.2 lux (Day)
0.1 lux (Night) |
| Image Sensor |
1/2.8" Progressive CMOS
|
| Pixel Size |
2.9 x 2.9 ?m
|
| Aperture |
F1.5 ~ 3.0
|
| Resolution |
1080p, 1080i, 720p
|
| Color Space |
4:2:2 YCbCr 10-bit
|
| Effective Pixels |
1920 x 1080
|
| Frame Rates |
1080p at 60/59.94/50/30/29.97/25/24
1080i at 60/59.94/50 720p at 60/59.94/50 |
| USB I/O |
1 x Micro-USB Female Input
|
| Video I/O |
1x HDMI Output
1x RJ45 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Input
|
| Other I/O |
1 x 6-Pin I/O for Breakout Cable (RS-485)
|
| Audio Sample Rate |
16/24/32-bit
|
| Protocols |
UDP|IP, RSTP, RTMP, SRT, NDI|HX
|
| Control Protocol |
VISCA over IP
|
| Power Source |
AC Adapter with Power Brick (Included), PoE
|
| DC Input Power |
12 VDC
|
| Power Consumption |
24 W
|
| Mounting |
2x 1/4"-20 Thread
|
| Color |
Black
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Dimensions |
6.7 x 2.5 x 2.5" / 171 x 64 x 64 mm
|
| Weight |
21.2 oz / 600 g
|
| Package Weight |
3.3 lb
|
| Box Dimensions (LxWxH) |
14.7 x 5.2 x 5.1"
|
