Description
AIDA Imaging UHD-NDI3-X30 Overview
This
UHD NDI|HX3 30x Zoom POV Camera from
AIDA Imaging provides 4K60 video over HDMI or IP output thanks to its native NDI|HX3 support. Low-latency broadcast signals, power, and data communication can be delivered over a single connection. The camera comes with a pre-installed 30x optical zoom module to capture images up to 150' away.
AIDA Imaging offers this innovative POV camera capable of capturing stunning 4K60 video with an adjustable 30x optical zoom. Pairing this UHD functionality with NDI|HX3 IP streaming compatibility, the UHD-NDI3-X30 camera outputs uncompressed video signals at up to 60 MB/s. Coming pre-loaded with NDI|HX3 support means less cable clutter and installation hassle: video, audio, control, power, and data are all carried over a single CATx cable. Bridging this camera through NDI networking and utilizing the accessible Web UI allows for the creation of an entire video ecosystem, especially when combined with other NDI|HX-compatible devices from AIDA Imaging (available separately). HDMI output with embedded audio is also available.

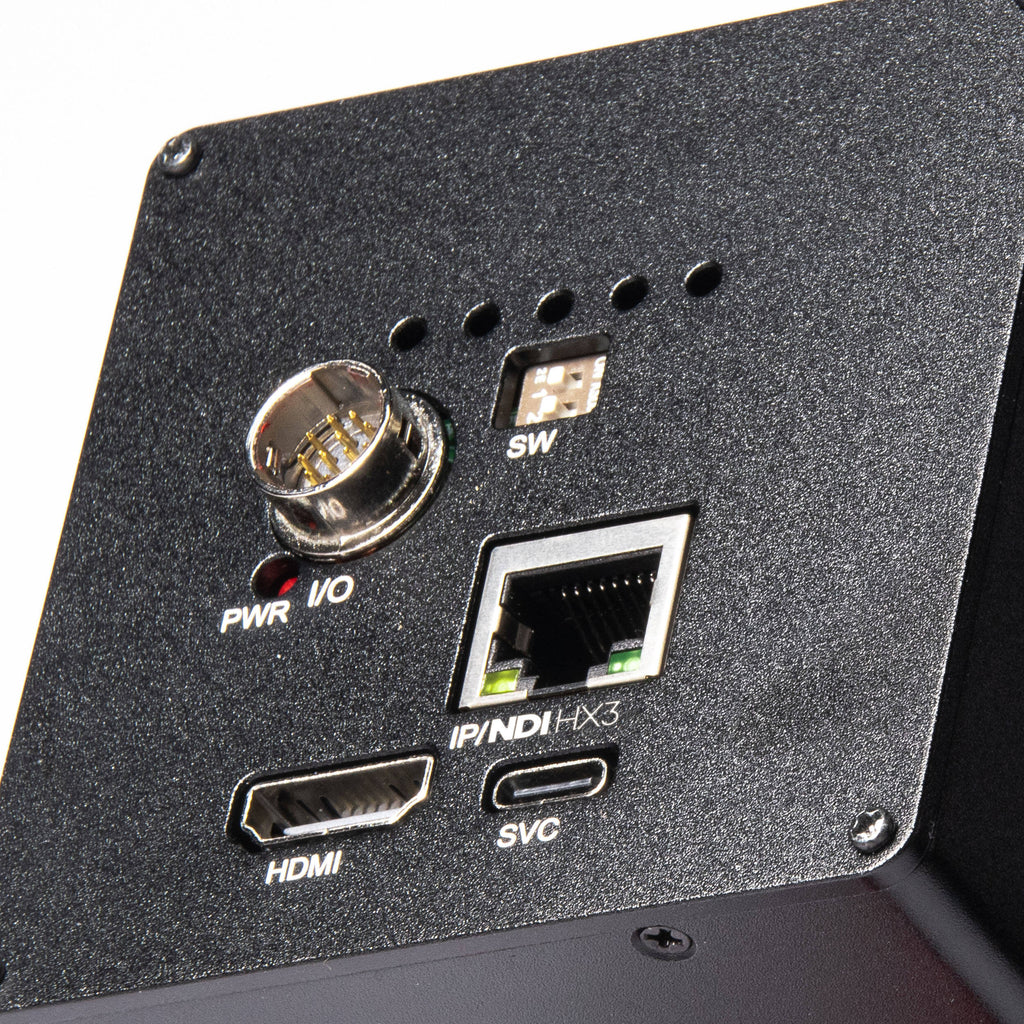

The UHD-NDI3-X30 is housed in a compact and rugged case suitable for a wide variety of applications. 1/4"-20 female mounting threads are located on both the bottom and top of the housing to provide flexible rigging capabilities, from tripods to truss. The front of the camera features a small tally light to ensure talent is ready to go live. A built-in breakout cable carries the 12 VDC input port and a 3.5mm jack for line-in audio as well as a set of dip switches for firmware adjustment.
In the Box
- AIDA Imaging UHD NDI|HX3 30x Zoom POV Camera
- USB Cable
- Remote Controller
- Limited 2-Year Manufacturer Warranty
AIDA Imaging UHD-NDI3-X30 Specs
General
| Compatibility |
Newtek NDI|HX
|
| Image Sensor |
1/2.8" Progressive CMOS
|
| Effective Pixels (H x V) |
3840 x 2160
|
| Resolutions |
NDI|HX/HDMI: 2160p60/59.94/50/30/29/97/25/24
NDI|HX3/SRT/RTMP/RTSP: 1080p60/59.95/50/30/29.97/25/24, 1080i60/59.94/50, 720p60/59.94/50 |
| Lens |
30x Optical Zoom Module
|
| Lens Focal Length |
6.91-214.64mm
|
| Field of View |
59-1.98°
|
| Color Spaces |
4:2:2 (YCbCr) 10-Bit
|
| Minimum Illumination |
Day: 0.2 Lux
Night: 0.1 Lux |
Inputs / Outputs
| USB I/O |
1 x USB-C Female Input/Output
|
| Video I/O |
1 x HDMI Output
1 x RJ45 Output |
| Audio I/O |
1 x 1/8" / 3.5 mm Line Input
|
| Protocol |
IP: UPD|IP, RTSP|RTMP, SRT, NDI|HX
|
Power
| Power Source |
AC Adapter with Power Brick (Included), PoE
|
| DC Input Power |
12 VDC
|
Environmental
| Environmental Protection |
No
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
Physical
| Mounting |
Top: 1 x 1/4"-20 Thread
Bottom: 1 x 1/4"-20 Thread |
| Color |
Black
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
8.66 x 2.83 x 2.83" / 22 x 7.19 x 7.19 cm
|
| Weight |
3.1 lb / 1400 g
|
Packaging Info
| Package Weight |
4.675 lb
|
| Box Dimensions (LxWxH) |
16.8 x 5.2 x 4.2"
|
