Description
AIDA Imaging UHD6G-200 Overview

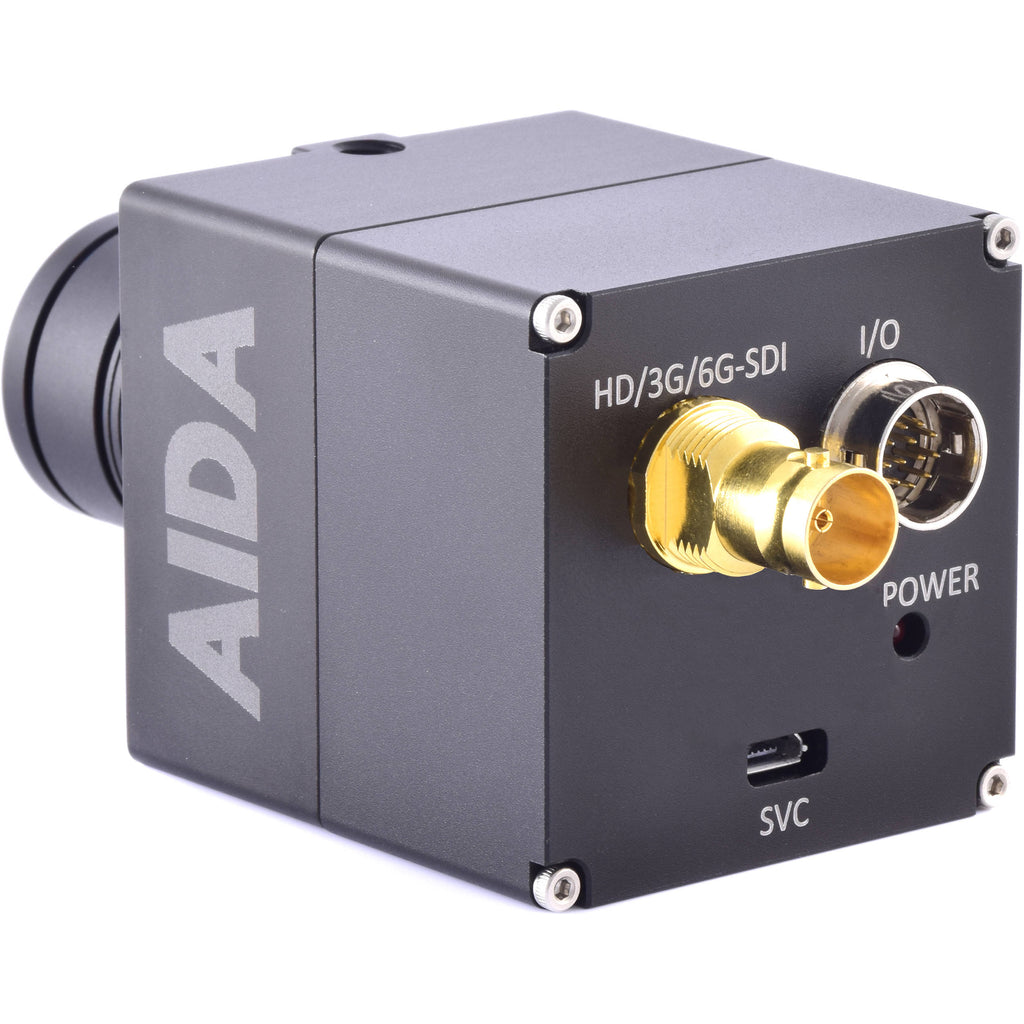

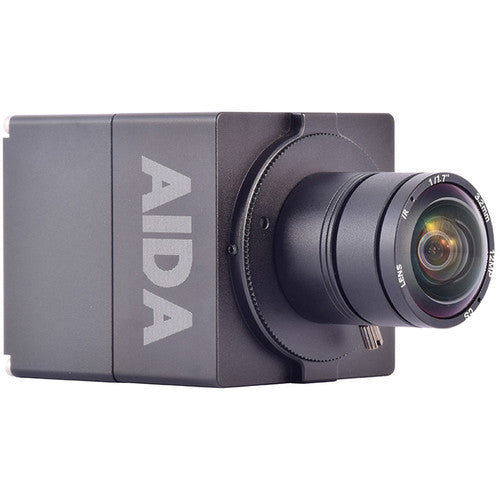

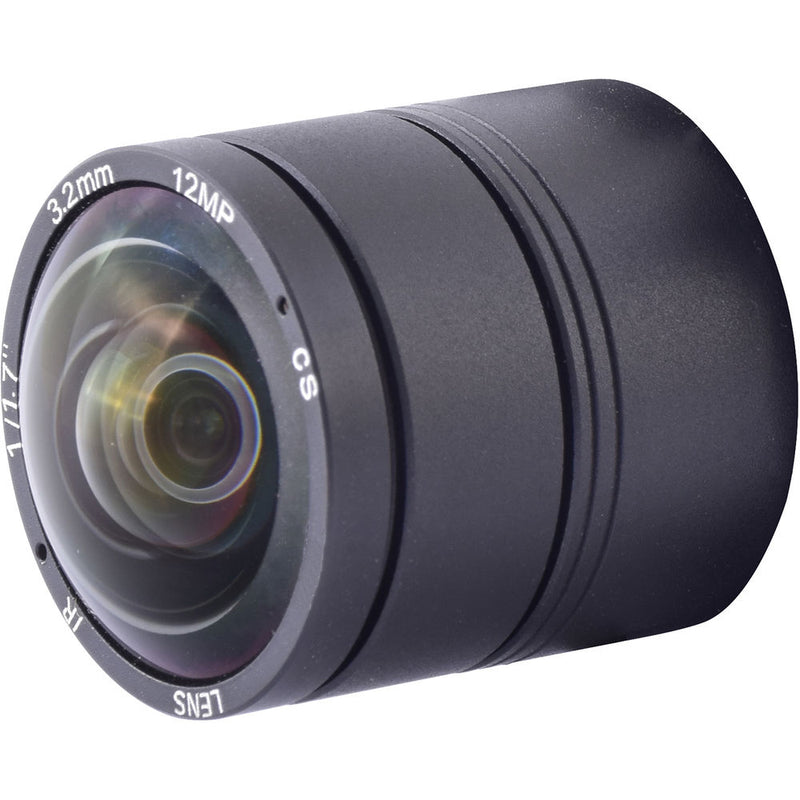

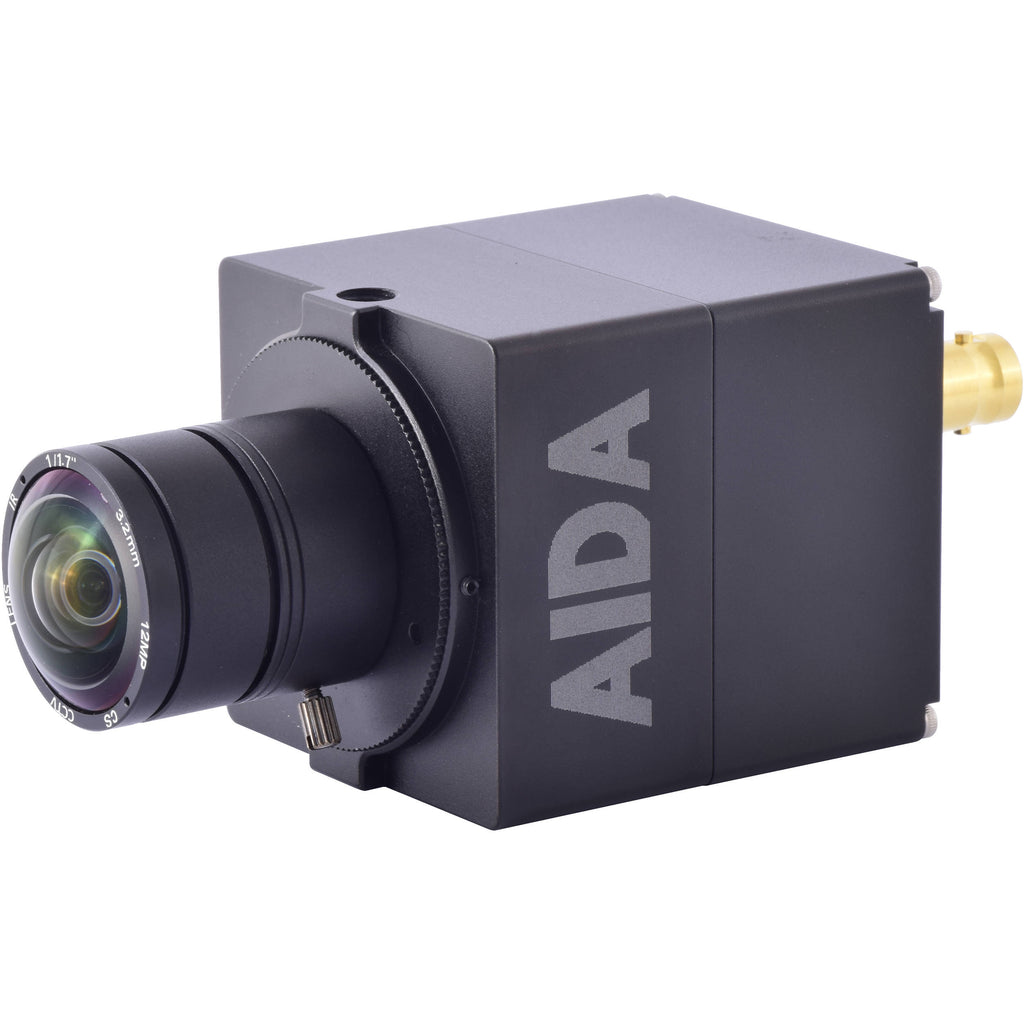

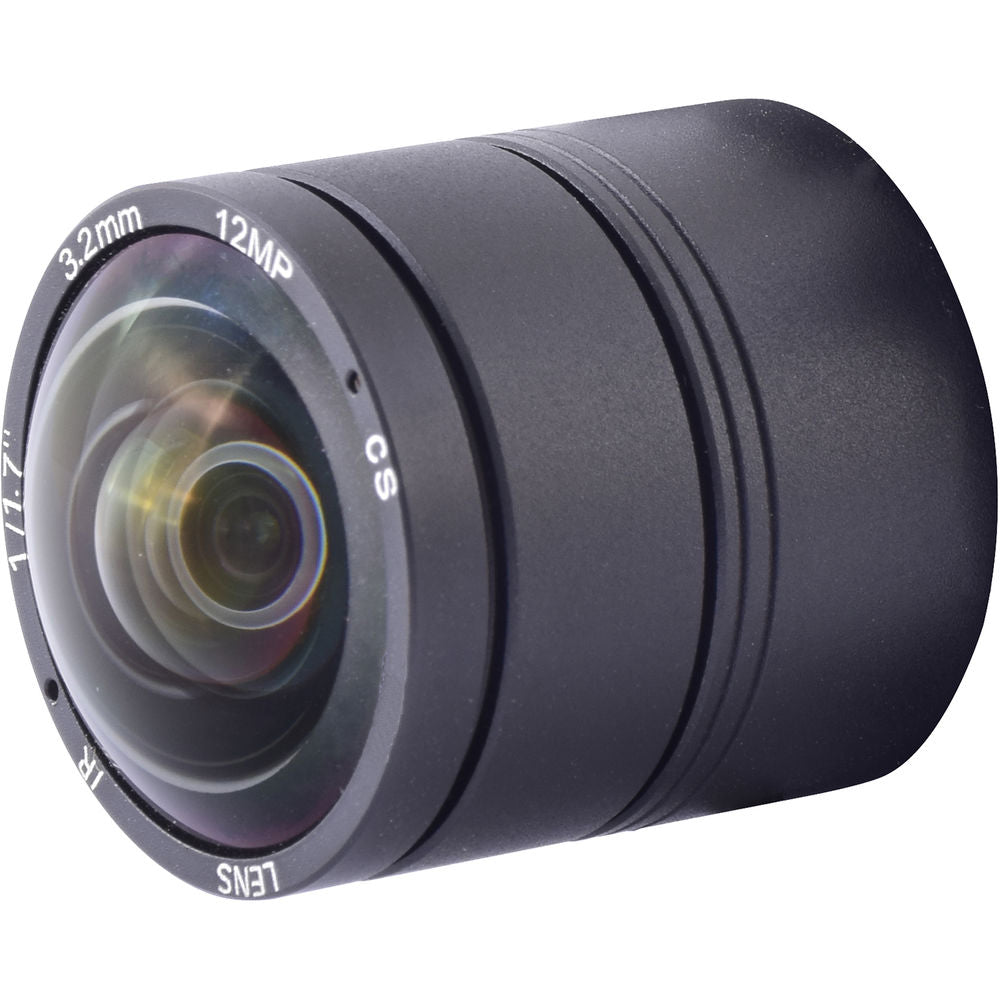

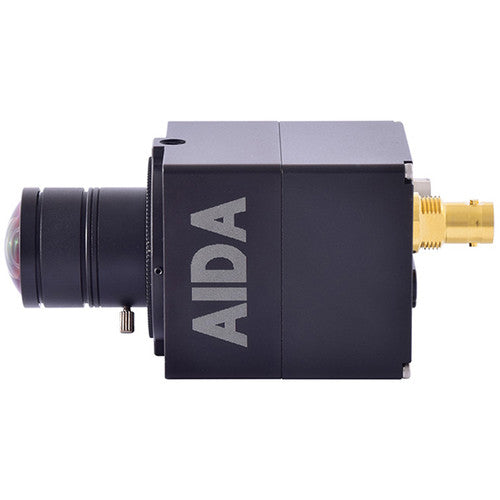

The UHD6G-200 POV Professional EFP Camera from AIDA Imaging has a 1/2.5" progressive-scan CMOS image sensor and supports a resolution of up to 4096 x 2160 at 20/24p fps. It features a preinstalled 3.2mm 12MP 4K lens and a 6G-SDI output and is designed for industrial and broadcast applications. This camera features a user-interchangeable C to CS mount lens as well as digital imaging processor that provides vivid and detailed images by utilizing dynamic range, white balance, and noise reduction. The on-screen display can be remotely controlled by a PTZ camera controller or by CCS-USB and software. A breakout cable with on-screen display control, audio input and RS-485 for remote communication as well as a 12 VDC power supply and socket adapter are included.
In the Box
- AIDA Imaging UHD6G-200 4K POV Professional EFP Camera
- Input/Output Breakout Cable
- 12 VDC Power Supply & Socket Adapter
- Sensor Cap
- C-Mount Lens Adapter
- Hex Wrench

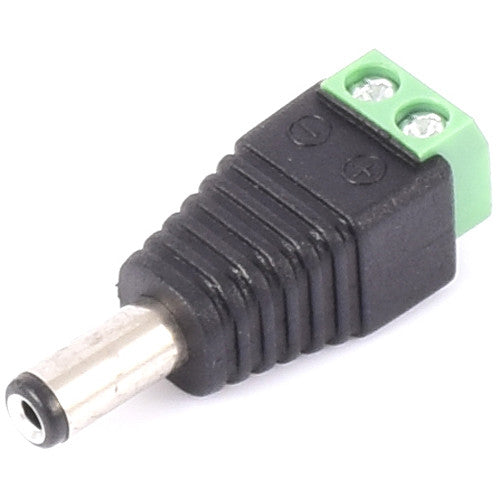

- Terminal Power Connector
- Limited 1-Year Warranty
AIDA Imaging UHD6G-200 Specs
| Image Sensor | 1/2.5" progressive CMOS |
| Sensor Size | 8.365 X 6.615 mm (16:9) |
| Effective Pixels | Horizontal: 3840 Vertical: 2160 |
| Pixel Size | Horizontal: 1.62 μm Vertical: 1.62 μm |
| Resolution | 4096 X 2160, 3840 x 2160, 1920 x 1080, 1280 x 720 |
| Resolution / Frame Rate | 4K (4096 X 2160) at 20/24p 2160p at 30/29.97/25/24 1080p at 60/59.94/50/30/29.97/25/24 1080i at 60/59.94/50 720p at 60/59.94/50/30/25 |
| Output | 1 x HD/3G/6G-SDI BNC port |
| Color Space | 4:2:2 (YCbCr) 10-bit |
| White Balance | AWB / AE / AF |
| Exposure | Full auto, bright, shutter priority, iris priority, manual |
| Lens | C/CS mount |
| Input | 3.5 mm analog audio jack over input/output cable |
| Sample Rate | 16/24/32 bits |
| SMPTE | SMPTE 292M, SMPTE 424M, SMPTE 2081-10 |
| Camera Control | RS-485 OSD Button |
| Power | 12 VDC (9 to 15 VDC) |
| Operation Temperature | 15 to 120°F / -9.4 to 48.9°C |
| Dimensions | 2.20 x 2.20 x 2.83" / 56 x 56 x 72 mm |
| Weight | 0.37 lb / 170 g |
| Package Weight | 1.55 lb |
| Box Dimensions (LxWxH) | 11.1 x 6.9 x 2.7" |
