Description
Teledyne Flir 6.3MP Black & White Camera Overview

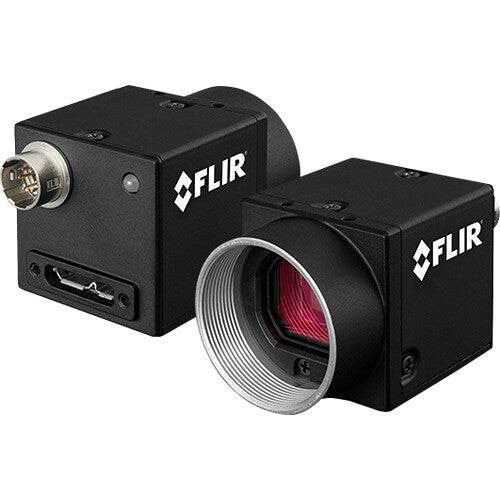

The Blackfly S USB3 6.3MP Black & White Camera from Teledyne Flir captures up to 3072 x 2048 resolution video and offers micro-USB 3.1 Gen 1 output. Maximum standard frame rate is 59.6 fps. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the USB3 Vision v1.0 standard. A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony IMX178 1/1.8" CMOS black-and-white sensor, two custom user settings, manual/auto gain, and a rolling shutter with a global reset. You can power the camera using a 6-pin Hirose power source or via the USB port.
- Acquisition modes: Continuous / Single Frame / Multi Frame
- Exposure control: hardware trigger, programmable via camera API, automatic
- Exposure range: 8 µs to 30 seconds
- Flash memory: 6MB non-volatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 240MB
- Image processing: gamma, lookup table, saturation, and sharpness
- Partial image modes: pixel binning, decimation, ROI
- User sets: two user configuration sets for custom camera settings
- Absolute sensitivity threshold (y): 4.03
- Dynamic range: 73.73 dB
- Gain range: 0 to 47 dB
- Quantum efficiency mono: 75.05 at 530nm
- Saturation capacity (e-): 14204
- Temporal dark noise (read noise): 2.42
Items Included
- Teledyne Flir Blackfly S USB3 6.3MP Black & White Camera (C-Mount)
- Limited 3-Year Manufacturer Warranty
Additional Resources
Teledyne Flir 6.3MP Black & White Camera Specs
| Compatibility |
Not Specified by Manufacturer
|
| Sensor |
Sony IMX178 1/1.8" CMOS, 6.3 MP
|
| Shutter |
Rolling, with Global Reset
|
| Resolution |
3072 x 2048
|
| Lens Mount |
C
|
| Frame Rate |
Standard: Up to 59.6 fps
|
| Bit Depth |
Black-and-White/Mono, 10-bit, 14-bit
|
| USB I/O |
1 x Micro-USB 3.0 / 3.1/3.2 Gen 1 Female Output
|
| Other I/O |
1 x 6-Pin Hirose (Power/GPIO)
|
| Power Source |
USB (Not Included), Plug-In Power (Not Included)
|
| DC Input Power |
8 to 24 VDC
|
| Power Consumption |
3 W
|
| Color |
Black
|
| Certifications |
CE, FCC, Kcc, RoHS
|
| Operating Conditions |
32 to 122°F / 0 to 50°C at 20 to 80% Humidity
|
| Storage Conditions |
-22 to 140°F / -30 to 60°C at 30 to 95% Humidity
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
1.2 x 1.1 x 1.1" / 30 x 29 x 29 mm
|
| Weight |
1.3 oz / 36 g
|
