Description
- Designed for Low-Noise Impedance Mics
- 24 AWG Stranded (42 x 40) / 500'
- High-Conductivity Bare Copper Conductors
- Polyethylene Insulation
- Tinned Copper Braid Shield & PVC Jacket
- 95% Coverage
- 40 Ohms Impedance
The 500' Belden 1192A Multi-Conductor - Four-Conductor Star Quad, Low-Impedance Cable is designed for low-impedance microphones. It's constructed with two blue wires and two white wires with the like colors connected. The cable is connected by attaching the blue conductors to one pin and the white conductors to another in a XLR balance-line connector. This set-up offers maximum noise rejection.
- 24 AWG stranded (42 x 40) high-conductivity bare copper conductors
- Polyethylene insulation
- Tinned copper braid outer shield (95% coverage)
- PVC outer jacket
In the Box

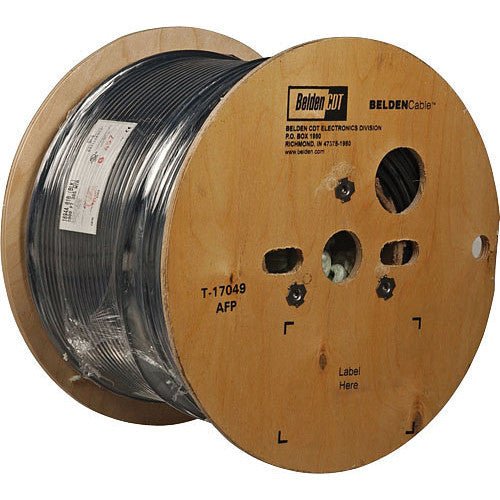

Belden 1192A Multi-Conductor - Four-Conductor Star Quad, Low-Impedance Cable (500', Black)
- 10-Year Limited Warranty
| Cable | |
|---|---|
| Cable Length | 500' (152.4 m) |
| Conductors | 4 x high-conductivity soft bare copper (SBC) conductors |
| AWG | 24 |
| Stranding | 42 x 40 |
| Insulation | Material: Polyethylene Wall Thickness: 0.016" (0.4 mm) Diameter: 0.056" (1.4 mm) |
| Outer Shield Material | Tinned copper braid |
| Coverage | 95% |
| Outer Jacket | Material: PVC Nominal Wall Thickness: 0.045" (1.1 mm) |
| Overall Nominal Diameter | 0.245" (6.2 mm) |
| Electrical | |
|---|---|
| Impedance | 40 ohms |
| Inductance | 0.21 ?H/ft |
| Nominal Capacitance | 39.2 pF/ft (conductor to conductor) 57.4 pF/ft (between conductors in a quad configuration) |
| Nominal Velocity of Propagation | 66% |
| DCR @ 20�C (Ohm/100 m) | 26.6 (conductor) 7.1 (outer shield) |
| Max Operating Voltage - UL | 100 V RMS |
| Max Operating Voltage - Other | 18.0 kV (nominal breakdown voltage between conductors) 16.9 kV (nominal breakdown voltage conductors to shield) |
| Max Recommended Current | 2.9 amps per conductor at 25�C |
| Other Electrical Characteristic | 2/c 21 AWG equivalent DCR when connected to a 3-pin XLR |
| Standards & Environmental Programs | |
|---|---|
| EU CE Mark | Yes |
| EU Directive 2000/53/EC (ELV) | Yes |
| EU Directive 2002/95/EC (RoHS) | Yes |
| EU RoHS Compliance Date | 01/01/2004 |
| EU Directive 2002/96/EC (WEEE) | Yes |
| EU Directive 2003/11/EC (BFR) | Yes |
| CA Prop 65 (CJ for Wire & Cable) | Yes |
| MII Order #39 (China RoHS) | Yes |
| Plenum (Yes/No) | No |
| General | |
|---|---|
| Operating Temperature Range | -22 to 167�F (-30 to 75�C) |
| Non-UL Temperature Rating | 167�F (75�C) |
| Max Recommended Pulling Tension | 21 lb (9.5 kg) |
| Minimum Bend Radius/Minor Axis | 2.5" (63.5 mm) |
| Bulk Cable Weight | 16.5 lb (7.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 20.1 lb |
| Box Dimensions (LxWxH) | 13.622 x 10.236 x 7.874" |
