Description

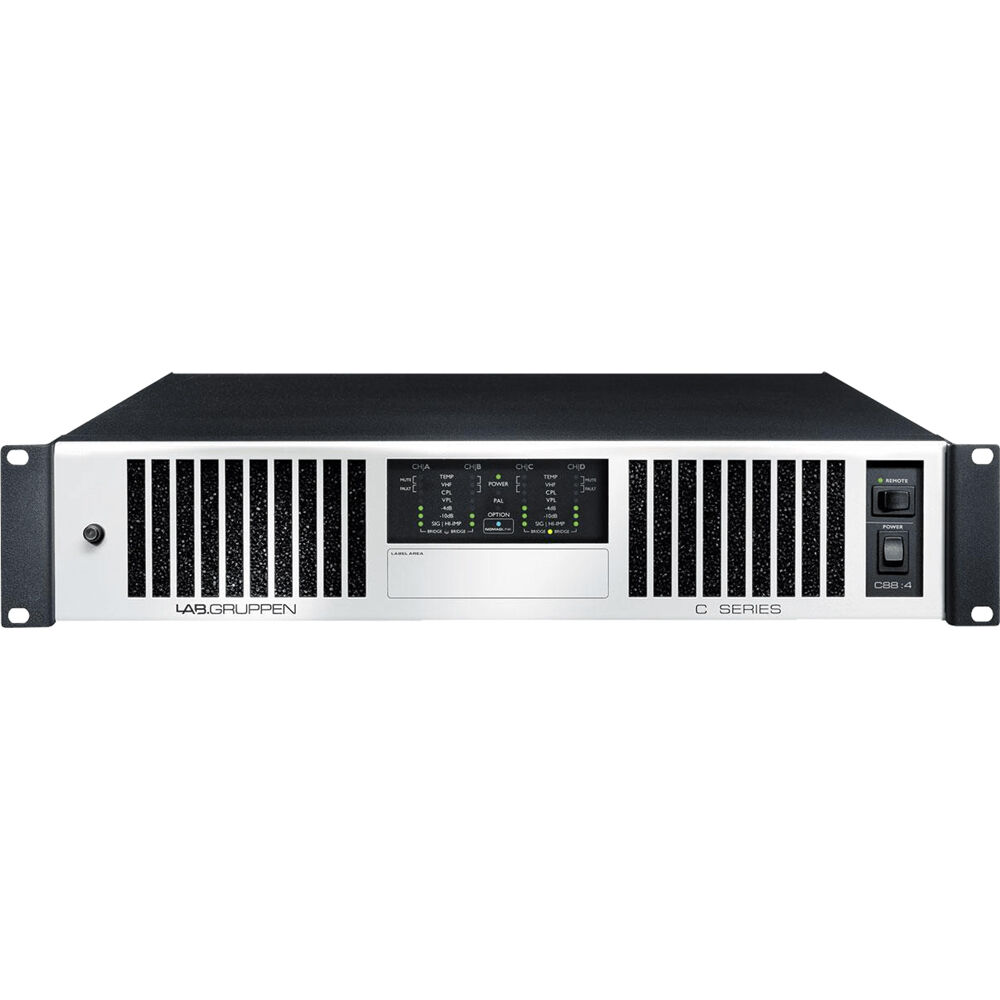

Lab.Gruppen C 88:4 Overview
System installers in search of a powerful, flexible amplifier with Hi-Z and Lo-Z capabilities should check out the Lab.Gruppen C 88:4, a 2 RU, four-channel 8800W amplifier that's designed to power anything from one massive subwoofer or a series of small 100V loudspeakers. The amplifier is well suited for retail, hospitality, night clubs, bars, performing arts centers, convention centers, hotels, theme parks, houses of worship, and more. The C 88:4 utilizes Class-TD technology, which delivers the exceptional efficiency of Class-D while retaining the superior sonic quality of the best Class-A/B output stage.

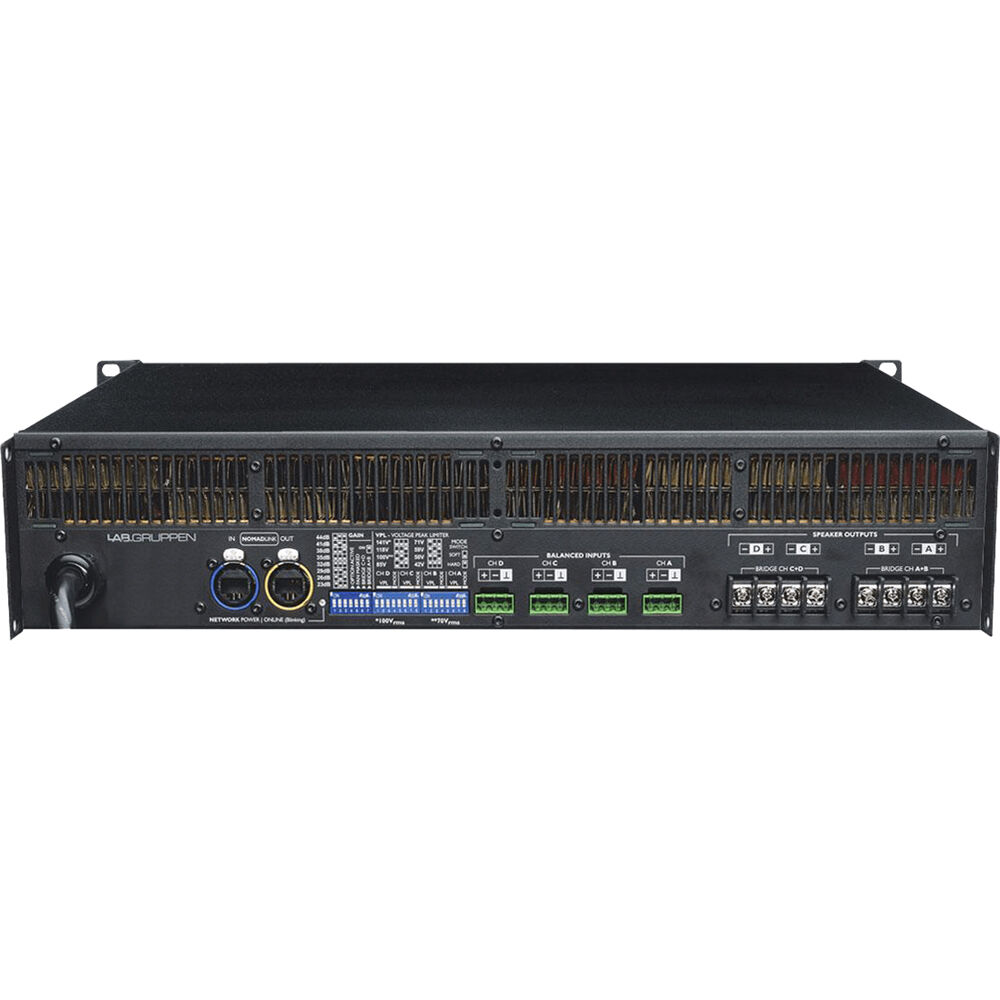

The C 88:4 amplifier is ready for the NomadLink network right out of the box. With NomadLink, key amplifier parameters are displayed via DeviceControl software, and remote control of channel mutes and power on/off is under network control. (NomadLink requires the separate NLB 60E NomadLink Bridge & Network Controller.) The rear panel features four 3-pin Phoenix connector inputs and four 2-pin barrier strip outputs. A power cord is included.
- 8800W, 4-channel amplifier with up to 2200W output per channel and NomadLink network for monitoring and control
- Selectable gain plus scalable Voltage Peak Limiter (VPL) and bridge-mode operation allow custom configuration for any application
- 4 x 2200W into 2 ohms, 4 x 2100W into 4 ohms, 4 x 1250W into 8 ohms, 4 x 650W into 16 ohms, 4 x 2200W into Hi-Z 70V, 4 x 1700W into Hi-Z 100V
- Proven and reliable Class-TD output stage delivers Class-A/B audio quality with Class-D efficiency
- Regulated Switch Mode Power Supply (R.SMPS) ensures constant power output at all times
- Intuitive DeviceControl software monitors and controls key functions via the NomadLink network
- Comprehensive protection scheme including current, voltage, DC, temperature, short-circuit and open-load warnings
- Efficient Intercooler copper cooling system dissipates more heat for extended peak output
- 4 balanced analog audio inputs on 3-pin Phoenix connectors
- 4 barrier strip 2-pole screw terminal output connectors
- Removable dust filter grille for increased air circulation
- Compact and durable 2 RU rackmount chassis saves space in install applications
In the Box
- Lab.Gruppen C 88:4 8800W 4-Channel Amplifier with NomadLink Network Monitoring
- Power Cord
- 4 x 3-Pin Block Input Connector
- Limited 6-Year Manufacturer Warranty
Lab.Gruppen C 88:4 Specs
| Number of Channels |
4
|
| Power Rating |
2 Ohms:
2200 W Peak per Channel 4 Ohms: 2100 W Peak per Channel 8 Ohms: 1250 W Peak per Channel 16 Ohms: 650 W Peak per Channel 70 V: 2200 W Peak per Channel 100 V: 1700 W Peak per Channel 4 Ohms: 4600 W Peak Bridged 8 Ohms: 4200 W Peak Bridged 16 Ohms: 2500 W Peak Bridged 140 V: 4400 W Peak Bridged |
| Load Impedance / Voltage |
2 / 4 / 8 / 16 Ohms
70 / 100 / 140 V |
| Analog Audio I/O |
4 x Block 3-Pin Balanced Line Input
4 x Barrier Strip 2-Pin Speaker Output |
| Network I/O |
2 x etherCON/RJ45 Ethernet
|
| Rackmount Size |
2 RU
|
| Number of Channels |
4
|
| Power Rating |
2 Ohms:
2200 W Peak per Channel 4 Ohms: 2100 W Peak per Channel 8 Ohms: 1250 W Peak per Channel 16 Ohms: 650 W Peak per Channel 70 V: 2200 W Peak per Channel 100 V: 1700 W Peak per Channel 4 Ohms: 4600 W Peak Bridged 8 Ohms: 4200 W Peak Bridged 16 Ohms: 2500 W Peak Bridged 140 V: 4400 W Peak Bridged |
| Amplifier Class |
Class-D
|
| Load Impedance / Voltage |
2 / 4 / 8 / 16 Ohms
70 / 100 / 140 V |
| Protections |
Reactive/Mismatched Load, Short Circuit, Thermal, Undervoltage
|
| Frequency Response |
7 Hz to 34 kHz +3 dB (1 W into 8 Ohms)
|
| Input Impedance |
20 Kilohms
|
| Max Gain |
44 dB
|
| SNR |
> 112 dBA
|
| THD |
< 0.05% (1 kHz, 1 dB Below Clipping)
< 0.1% ((20 Hz - 20 kHz at 1 W into 8 Ohms)) |
| Crosstalk |
> 70 dB
|
| Common Mode Rejection Ratio (CMRR) |
> 50 dB
|
| Crossover |
Yes
|
| Limiting |
Yes
|
| Analog Audio I/O |
4 x Block 3-Pin Balanced Line Input
4 x Barrier Strip 2-Pin Speaker Output |
| Digital I/O |
No
|
| Network I/O |
2 x etherCON/RJ45 Ethernet
|
| Mobile App Compatible |
No
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Wireless |
No
|
| AC Input Power |
115 to 230 VAC, 50 / 60 Hz
|
| AC Power Connector |
1 x Hubbell 30 A / NEMA 5-20 (Locking)
|
| Current Consumption |
230 VAC:
16 A 115 VAC: 20 A |
| Display & Indicators |
Front Panel:
Multi-Color LED (Current/Ethernet/Fault/Limit/Mute/Output/Peak/Power/Protect/Signal/Standby/Thermal, per Channel) |
| Rackmount Size |
2 RU
|
| Cooling |
Fan (Variable Speed)
|
| Certifications |
CE, ANSI, UL-60065, ETL, CSA, FCC
|
| Dimensions |
19.0 x 3.5 x 13.5" / 48.3 x 8.8 x 34.3 cm
|
| Weight |
26.4 lb / 12 kg
|
