Description
Defigo EUI-1 Overview

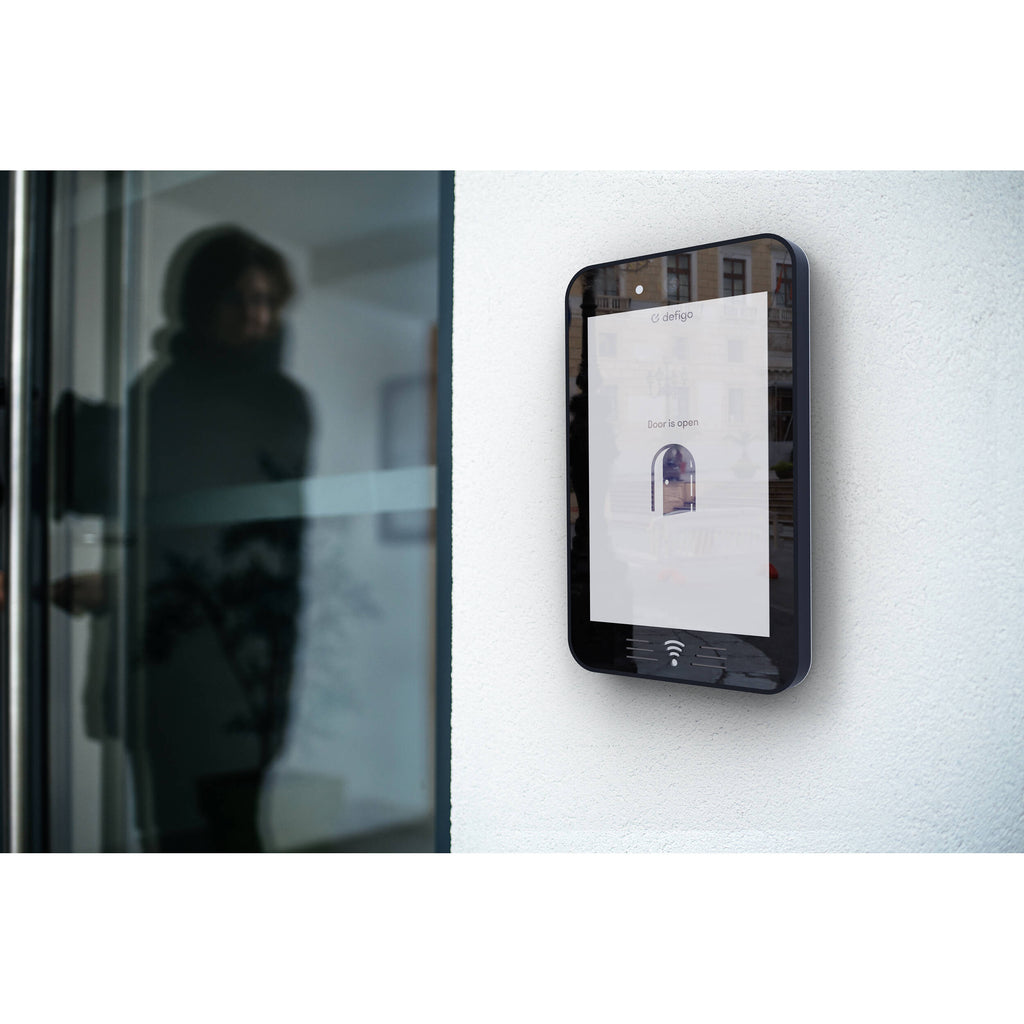

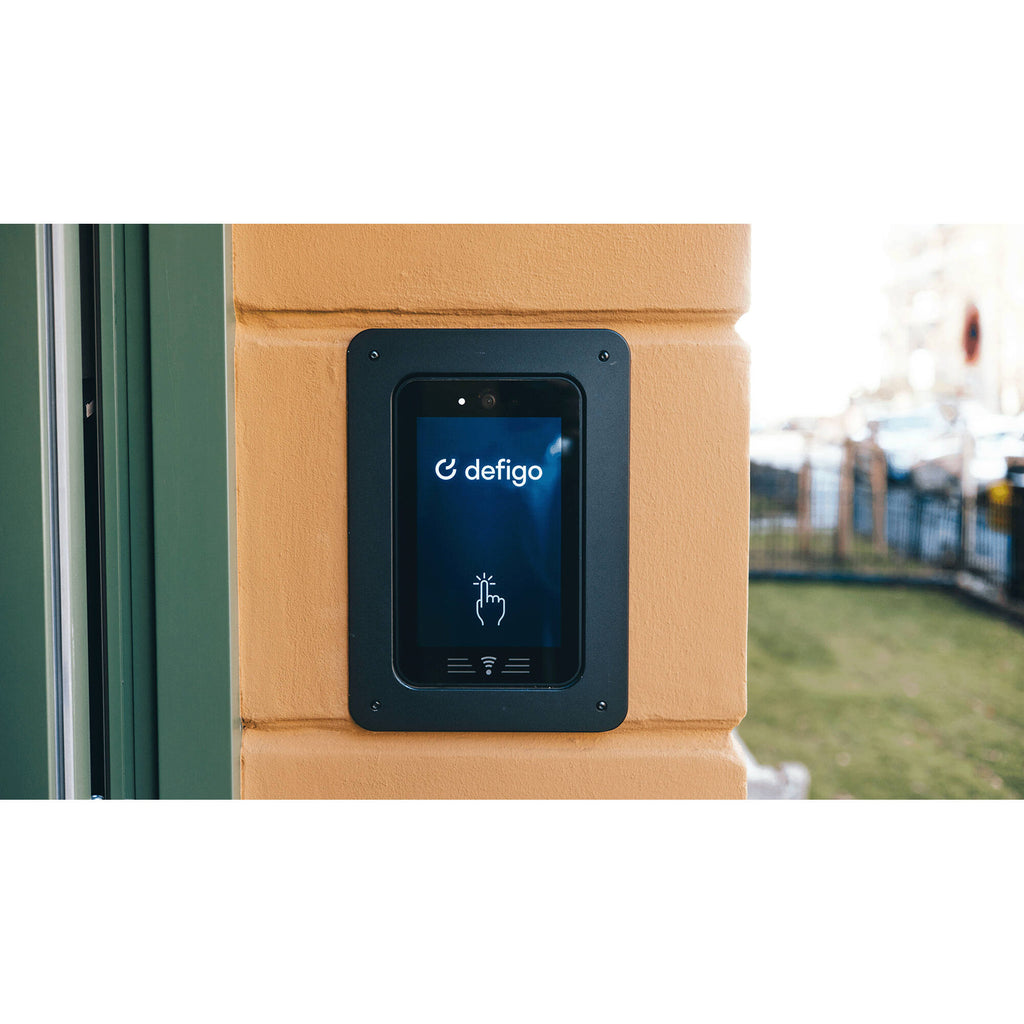

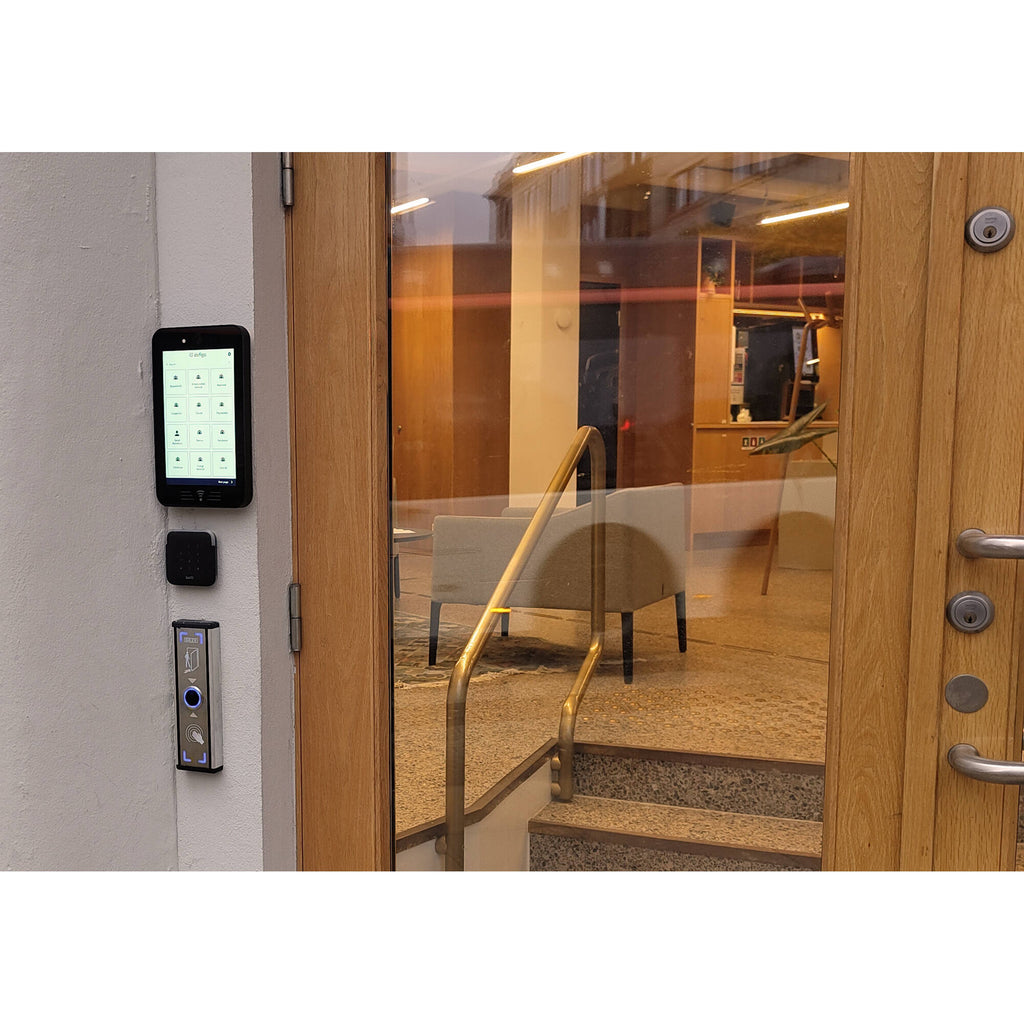

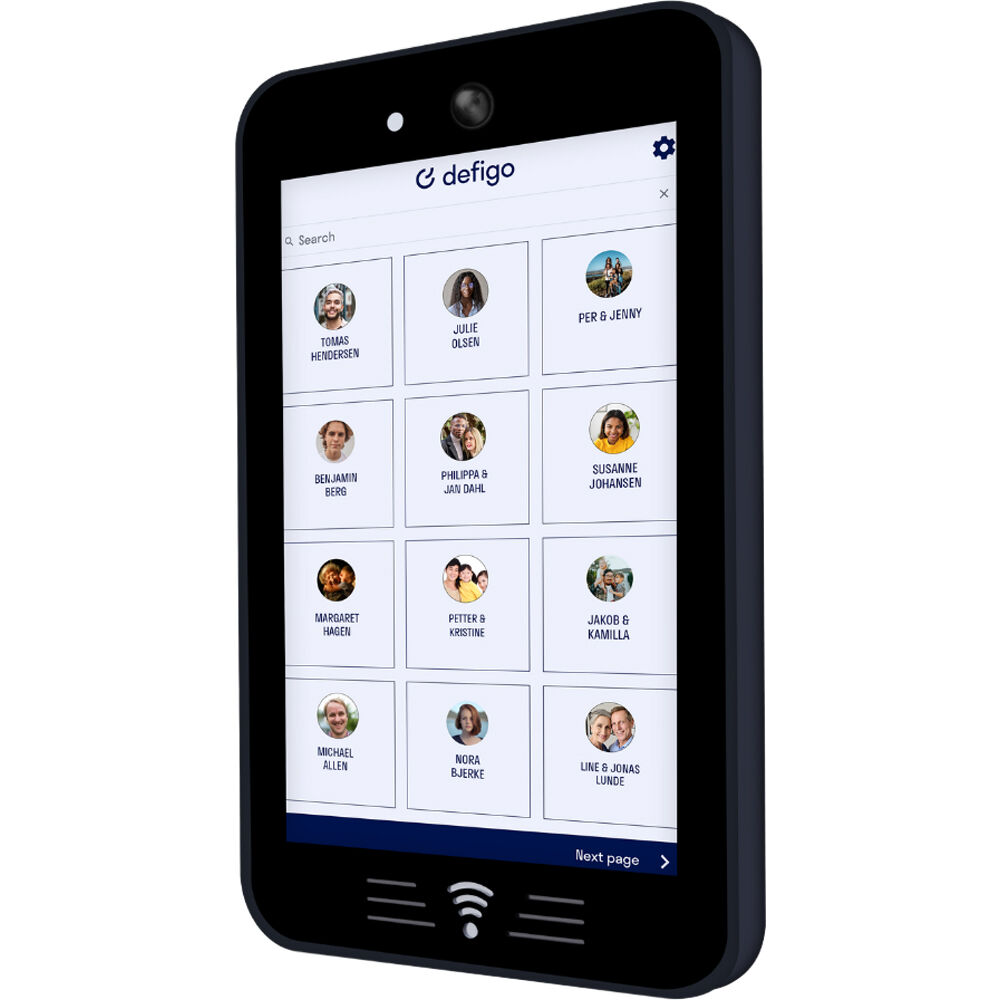

Implement an intercom and cloud-based access control solution in a residential or commercial building with the Digital Intercom with 10.1" Touchscreen Panel from Defigo. The unit features a 10.1" touchscreen display and a MIFARE RFID reader that operates at 13.56 MHz frequency. Two-way talk is possible thanks to a built-in omnidirectional microphone and speaker. An onboard camera equipped with a 1/4" CMOS sensor captures 1080p resolution video from a wide 130° horizontal angle of view.
Integrated PoE technology simplifies connectivity by enabling the transfer of power and data with minimal cabling. The Defigo app for iOS and Android enables remote management.
Items Included
- Defigo Digital Intercom with 10.1" Touchscreen Panel
- Limited 24-Month Manufacturer Warranty
Additional Resources
No additional resources available
Defigo EUI-1 Specs
| Compatibility |
Various 13.56 MHz MIFARE Credentials
|
| Camera |
Video Streaming: 1-Way
Image Sensor: 1/4" CMOS Low-Light Functionality: Integrated IR Cut Filter, 2 x IR LEDs Lens Type: Fixed Focus Lens Mount: M12 Camera Resolution: 1080p Angle of View: 130° Horizontal, 100° Vertical |
| Panel Type |
Not Specified by Manufacturer
|
| Display Size |
10.1"
|
| Native Resolution |
1280 x 800
|
| Touchscreen |
Yes
|
| Maximum Brightness |
500 nits / cd/m2
|
| Audio |
Omnidirectional Microphone (-42 dB ±3 dB at 94 dB SPL)
Full-Range Speaker (4 W, 8 Ohms) |
| Inputs/Outputs |
12 Position Terminal
3 Position Terminal 2 Position Terminal LAN RS-485 |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Defigo App |
| Wireless |
Wireless LTE Antenna
|
| Power Source |
PoE
|
| DC Input Power |
54 VDC
|
| Power Consumption |
30 W
|
| Mounting |
Multiple Surface
|
| Color |
Black
|
| Material of Construction |
Makrolon
|
| Environmental Resistance |
Dust/Water-Resistant (IP44)
|
| Certifications |
CE, RoHS
|
| Operating Conditions |
-4 to 122°F / -20 to 50°C
|
| Storage Conditions |
-4 to 176°F / -20 to 80°C
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
11.4 x 6.9 x 1.6" / 290 x 175 x 40 mm (Display)
9.3 x 7.7 x 1.7" / 235 x 195 x 42 mm (Control Unit) 10.1 x 9.3 x 1.7" / 257 x 235 x 42 mm (Control Unit with Cable Cover) |
| Weight |
3.3 lb / 1.5 kg (Display)
2.2 lb / 1 kg (Control Unit) |
| Package Weight |
3.865 lb
|
| Box Dimensions (LxWxH) |
14.7 x 9.2 x 3.1"
|
