Description

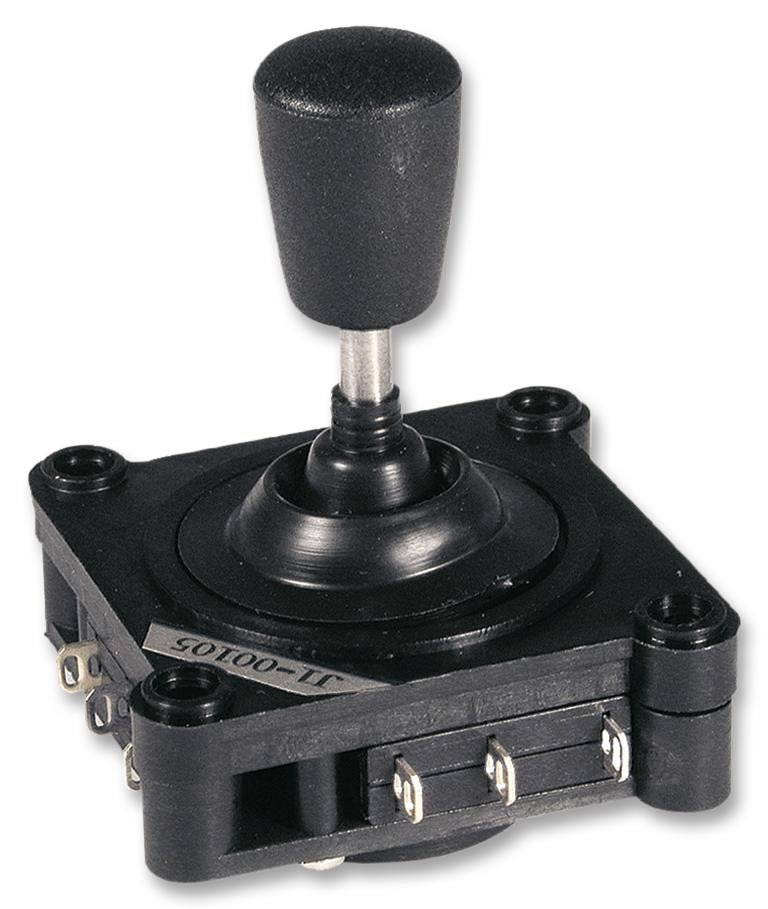

The J1-00105 is a 2-axis low profile V4 Joystick Switch Stick with tapered knob, load dependant contact life and solder termination. It has knob handle style and is capable of 4 or 8-way directional switching and 4-point mounting with hardware. It is made up of stainless steel lever, mineral filled nylon-6 body, nylon/aluminium knob and vinyl boot.
- Spring return to centre
- Tapered knob
- Protective rubber boot (IP65 rating above panel)
- -20 to 50�C Operating temperature range
Applications
Industrial
Product details
| Supply Voltage Max | 250V |
| Handle Style | Knob |
| Contact Current AC Max | 5A |
| Product Range | - |
| No. of Axes | 2 |
| Rotation Electrical Angle | 24� |
| No. of Switch Positions | - |
| Track Resistance | - |
| Contact Voltage AC Max | 250V |
Other details
| Brand | ETI SYSTEMS |
| Part Number | J1-00105 |
| Quantity | Each |
| Technical Data Sheet EN |  |
