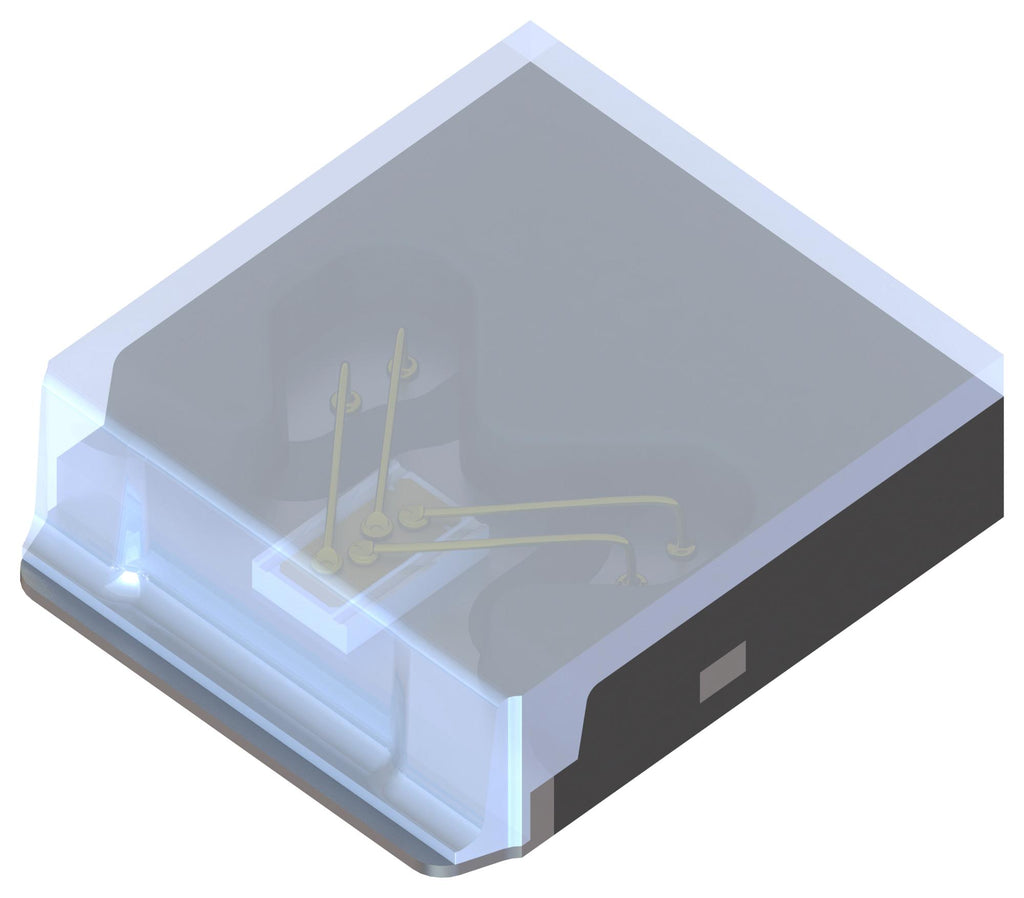

SPL S1L90H-3 is a 1 channel SMT laser in QFN package. It is the newest small aperture (110um) EEL in SMT package suitable for various industrial applications. Small aperture enables narrow emission width. The multi junction technology with three vertical emitters offers the highest optical output power and SMT package enables easy to use within pick & place and reflow soldering processes. Product has highest peak power and highest average power in the market, within a small package. Applications includes 3D sensing, access control and security, appliances and tools, factory automation, home and building automation, robotics.
- Side looker SMT package, easy pick and place, automated assembly, robustness, easy handling
- Beam divergence 10°x 25°, 905nm wavelength, 65W peak output power
- IR light source with very high efficiency
- Triple stack emitter and multi channel for very high optical output
- Latest chip technology, suitable for high volume production
- Outstanding Rth and inductance optimized package, optimized for short pulsed ToF applications
- Produce high power from a single spot due to the long cavity length
- Multi junction technology with three vertical emitters offers the highest optical output power
- Suited for short laser pulses from 1 to 50ns
- 110um aperture is leading to narrow emission width
Other details
| Brand |
AMS OSRAM GROUP |
| Part Number |
SPL S1L90H_3 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
