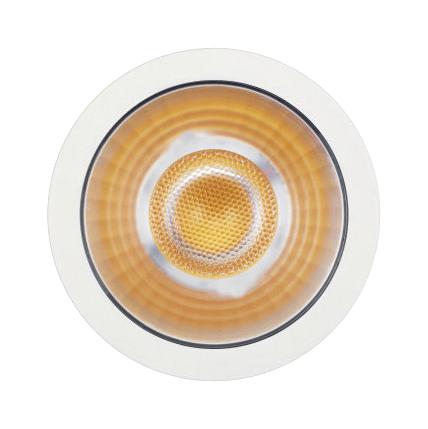

PrevaLED COIN 50 COB G2 LED module with integrated optics and heat sink. Applications include retail, shop, restaurant, hospitality, high-end residential. Suitable for indoor applications. Connecting multiple modules in parallel on one LED driver is not permitted and connecting multiple modules in series on one LED driver is not recommended.
- Colour consistency of < 2 SDCM, IP20 protection
- Compatible with conventional MR16 lamps
- Precise optical control and free from multi-shadow issue
- 0.35A nominal current, 36.5V nominal voltage, 12.4W on-mode power (GMS)
- 97lm/W luminous efficacy, 3000K light colour (designation)
- 4350 peak luminous intensity (GMS)
- 1050lm useful luminous flux (Φuse) (GMS)
- Height is 55mm, length is 50mm, grey heatsink, 70°C performance temp (IEC 62717)
- Standards-IEC 62471, EN 60598-1, EN 60529, EN 55015, EN 61547, EN62031 IEC 605981/CE
- Ambient temperature range from -25 to +40°C
Footnotes Do not use in sealed fixtures. Avoid covering the lens with dust or any object.
Other details
| Brand |
OSRAM |
| Part Number |
PL-CN50-COB-1400-930-24D-G2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
