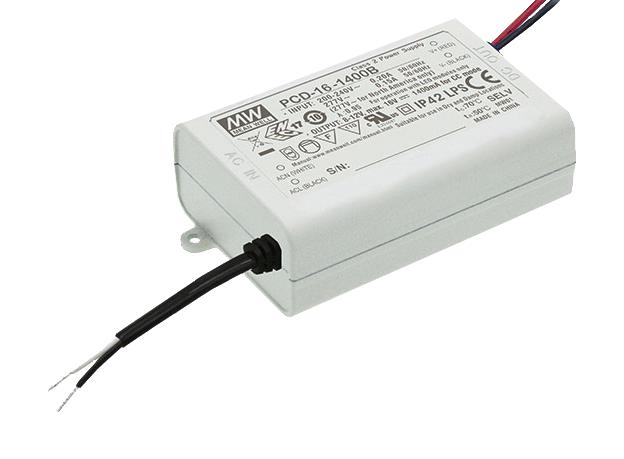

PCD-16-1400B is a PCD-16 series single output AC dimmable LED power supply. Safety standards are UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN613471, BS EN/EN61347-2-13, BS EN/N62384 (for B type only), BIS IS15885(for 350B, 700B only),EAC TP TC 004, IP42 approved, design refer to UL60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13.
- AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers
- Built-in active PFC function, constant current design
- Protections: short circuit / overtemperature
- Cooling by free air convection, fully isolated plastic case
- IP42 design, class II power unit, no FG
- Suitable for LED related fixture or appliance (such as LED decoration or advertisement devices)
- 100% full load burn-in test, low cost, high reliability, 3 years warranty
- 1400mA output rated current, 8 ~ 12V operating output voltage range
- 16.8W output rated power, 80% typical efficiency
- Working temperature range from -30 to +60°C, dimension(L x W x H) is 84 x 57 x 29.5mm
Other details
| Brand |
MEAN WELL |
| Part Number |
PCD-16-1400B |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
