Description
- Processor and Drive Center for ÉPIX Flex
- Pixel Mapping, Video & Motion Graphics
- Controls 4 x ÉPIX Flex 20 Strips
- Optional ÉPIX Flex Boost Drive 8 Strips
- Detailed Pixel Control
- DMX Channel Modes: 17 / 34
- Supports RDM over Artnet
- Works with Arkaos Media Master Express

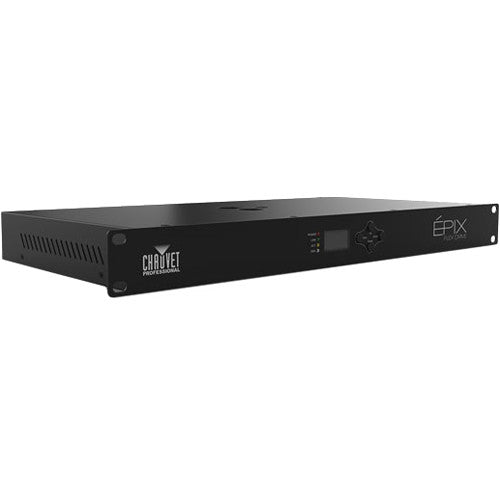

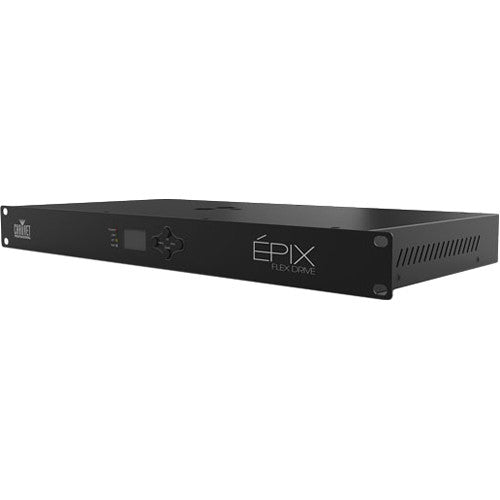

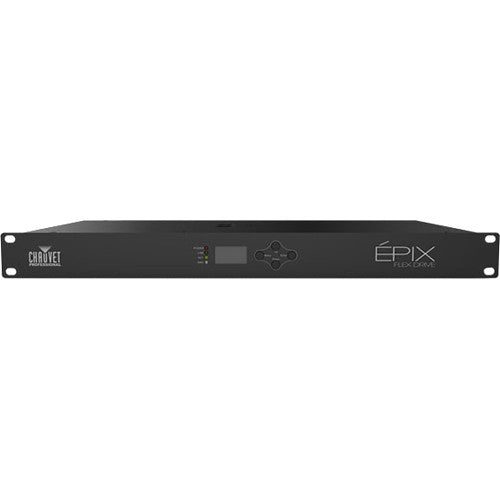

The Chauvet DJ ÉPIX Flex Drive is the processing and power center of the ÉPIX Flex system, which controls the ÉPIX Flex 20 LED flexible strip for creating stunning visual effects with color changing options and pixel mapping for showing video and motion graphics. The unit provides versatile control options including DMX, Art-Net, and sACN (Streaming ACN) to support the gamut of touring, rental, and installation markets.
Configuration is simple, using the built-in OLED display and menu. Up to four ÉPIX Flex 20 strips can be controlled, or up to eight strips with the optional ÉPIX Flex Boost, which allows you to drive up to 1920 LEDs. Easily daisy-chain fixtures directly from the two outputs of the Flex Drive, while the advanced power management design allows for the positioning of the Flex Drive up to 50' away from the first Flex 20. Multiple control personalities are possible for detailed pixel-level control or simple plug and play options using the 17/34 channel modes. The Chauvet Professional ÉPIX Flex Drive works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate.
-
- The processing and power center of the ÉPIX Flex system drives the ÉPIX Flex 20 pixel product
- Versatile control options include DMX, Art-Net, and sACN (streaming ACN) to support the touring/rental/installation markets
- Quickly and easily configure the ÉPIX Flex Drive using the built-in OLED display and menu
- Easily configure your ÉPIX Flex 20 by assigning the pixel count/output (2 total)
- Supports up to 4 ÉPIX Flex 20 rolls, or up to 8 with the ÉPIX Flex Boost (sold separately)
- Easily daisy-chain fixtures directly from the 2 outputs of the Flex Drive
- Advanced power management design allows you to position the Flex Drive up to 50' away from your first Flex 20
- Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate
- Supports RDM over Artnet and full webserver interface for remote configuration and firmware updates
- Multiple control personalities offer flexibility for detailed pixel-level control or simplified plug-and-play options using the 17/34 channel modes
CHAUVET PROFESSIONAL Flex Drive Specs
| Dynamic Effects | Standalone Color Mixing: Yes Built-In Automated Programs: Yes |

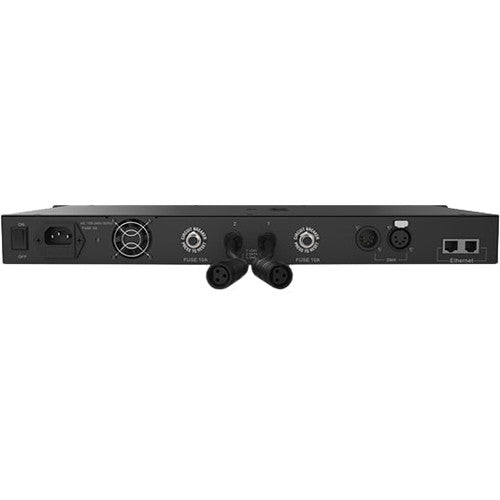

| Connections | Power Connection: Edison (Local) Plug to IEC Power Input: IEC Cable Length (Power): 5.0' / 1.5 m Device Data Inputs: 2 x Ethernet (RJ45) and 2 x 5-Pin XLR Device Outputs (3-Pin IP65 Ports): 2 Physical Linking per Port: Without Flex Boost: 2 Inline ÉPIX Flex 20 With Flex Boost: 4 Inline ÉPIX Flex 20 Total Maximum Cable Extension Length Between ÉPIX Flex Drive and First ÉPIX Flex 20: Without Flex Boost: 75.0' / 22.9 m With Flex Boost: 10.0' / 3.0 m Total Maximum Cable Extension Length Between ÉPIX Flex Boost and ÉPIX Flex 20: 30.0' / 9.1 m |
| Control | Control Protocol: Art-Net, sACN, DMX DMX Channels: 17, 34, or PIXEL Art-Net Channels: 17, 34, or PIXEL Modes/Personalities: 3 Personalities (17 ch, 34 ch, or PIXEL) Maximum Supported LEDs (per Port): 960 Maximum Supported LEDs (Total): 1920 |
| Construction | Exterior Color: Black Housing Material: Steel Rackmount: 1 RU |
| Certification | CE, MET |
| IP Rating | IP20, Dry Location |
| Temperature | -4 to 113°F / -20 to 45°C |
| Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging) Power and Current: 326 W, 2.75 A at 120 V, 60 Hz 314 W, 1.64 A at 208 V, 60 Hz 312 W, 1.50 A at 230 V, 50 Hz |
| Dimensions (W x D x H) | 19.0 x 17.5 x 1.7" / 483.0 x 445.0 x 44.0 mm |
| Weight | 6.0 lb / 2.7 kg |
