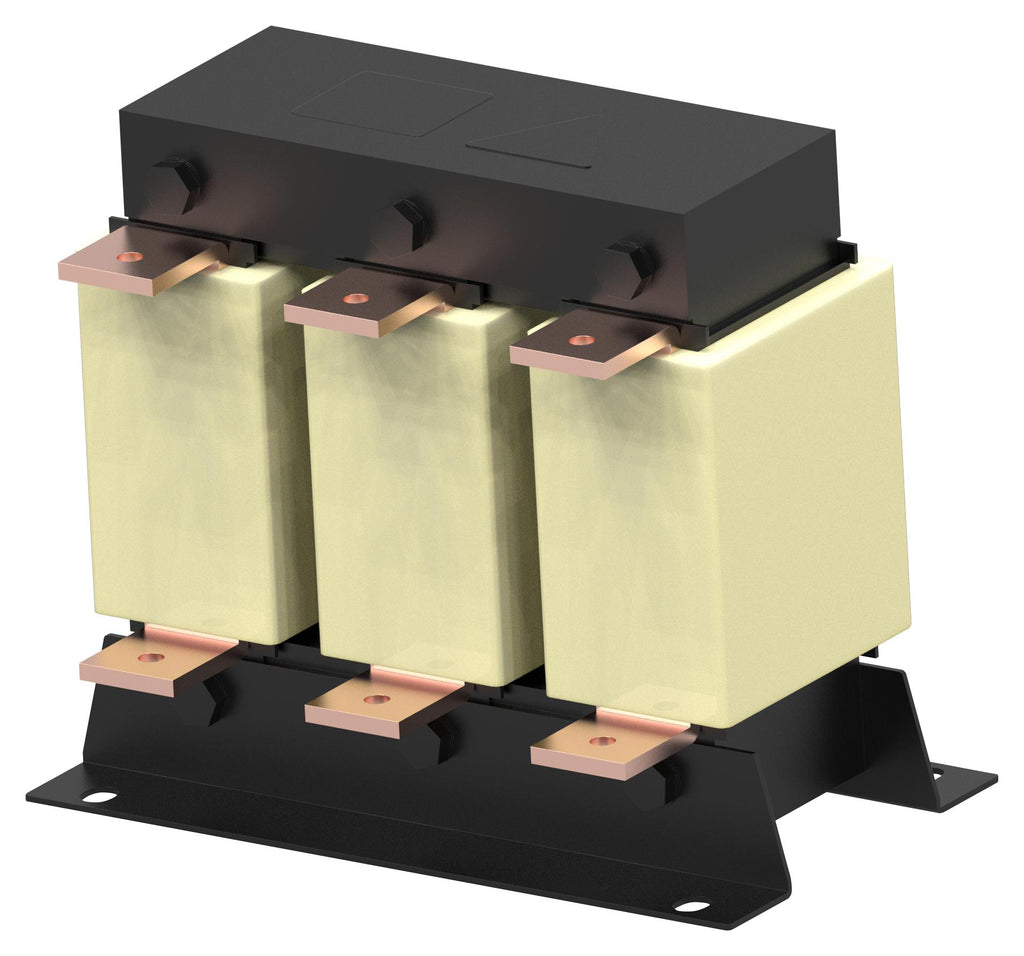

5-2432409-2 is a RPQ series three phase line reactor. It is designed to help protect motor drives from power line disturbances and disruptions from the line side as well as the harmonics distortions from AC/DC motor drives. Design corresponding to EN61558-2-20, EN60076-6, UL61800-5-1. Applications include power quality applications, motor drives and various adjustable speed, drive system such as elevators, robotics and machinery harmonic reduction, process automation equipment.
- 645A rated current, 536.6HP rated power, 0.046mH inductance, busbar termination
- Copper windings, comply with industry standards
- Helps protect motor drive electronics
- Limitations of inrush currents
- Reduction of nuisance tripping caused by power line voltage spikes
- Nominal operating voltage of 3x 380 to 480VAC, rated operating voltage of 3x 340 to 530VAC
- Operating frequency is 50/60Hz, impedance is 4% of 400VAC at rated current, 50Hz frequency
- High potential test voltage of 2000VAC for 2sec
- Operating temperature range from -45°C to 100°C, climatic category 45/100/21
- Natural cooling (AN), IP00 protection category, UL recognized as per UL 508 hardware certification
Product details
| Supply Voltage Max:
480VAC
|
| Product Range:
CORCOM RPQ Series
|
| Power Consumption:
536.6hp
|
| Impedance:
-
|
| Phase Type:
3 Phase
|
| Output Current:
645A
|
| Inductance:
46µH
|
| Length:
14.76"
|
| Width:
8.42"
|
| Height:
12.4"
|
Other details
| Brand |
CORCOM - TE CONNECTIVITY |
| Part Number |
5-2432409-2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
