Description
- Full Duplex Hybrid
- Auto-Answer/Disconnect
- Passive Design
- XLR Send Jack
- XLR Receive Jack
- Remote Control Terminals
- Tough Aluminum Design

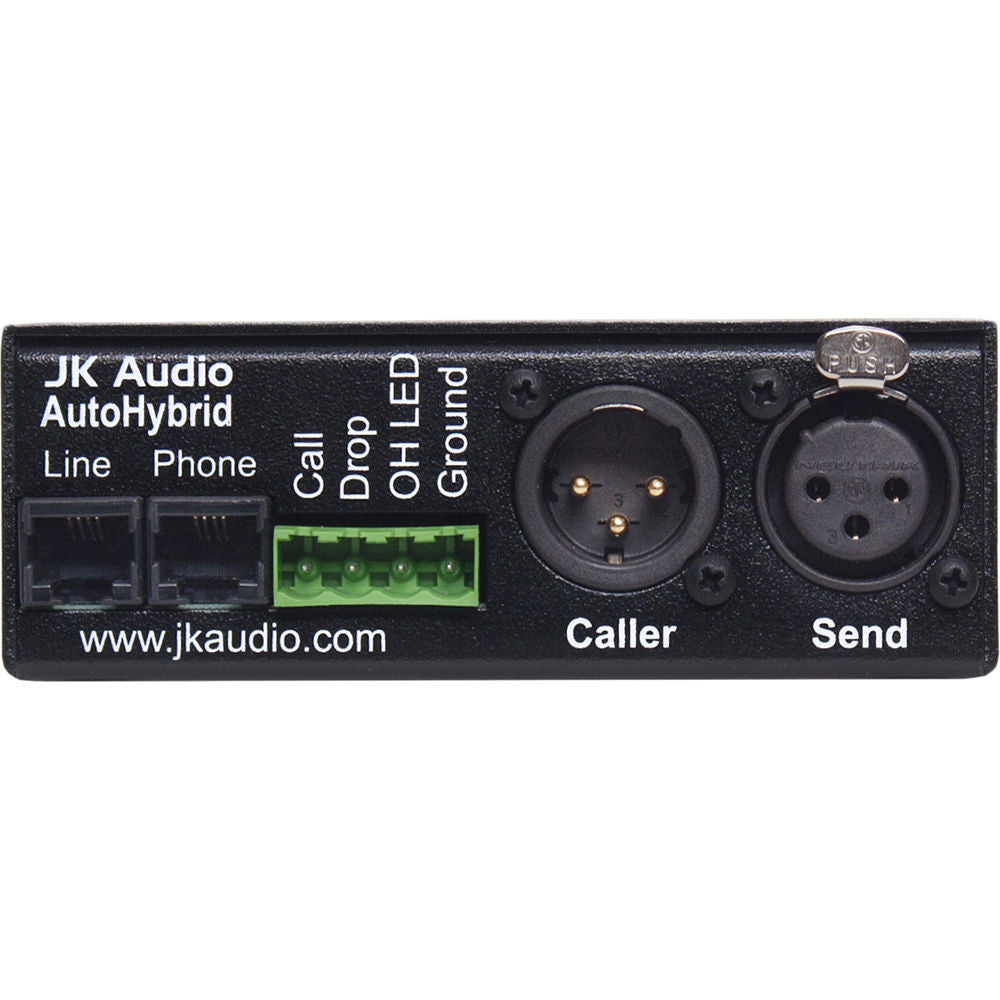

The JK Audio AutoHybrid is a simple passive telephone audio interface designed for IFB feeds, remote monitoring, conferencing, broadcast and studio recording applications. The AutoHybrid allows simultaneous send / receive audio flow through standard telephone lines. Balanced XLR input and output jacks allow noise free connection to pro audio recorders, mixers, amplifiers etc.

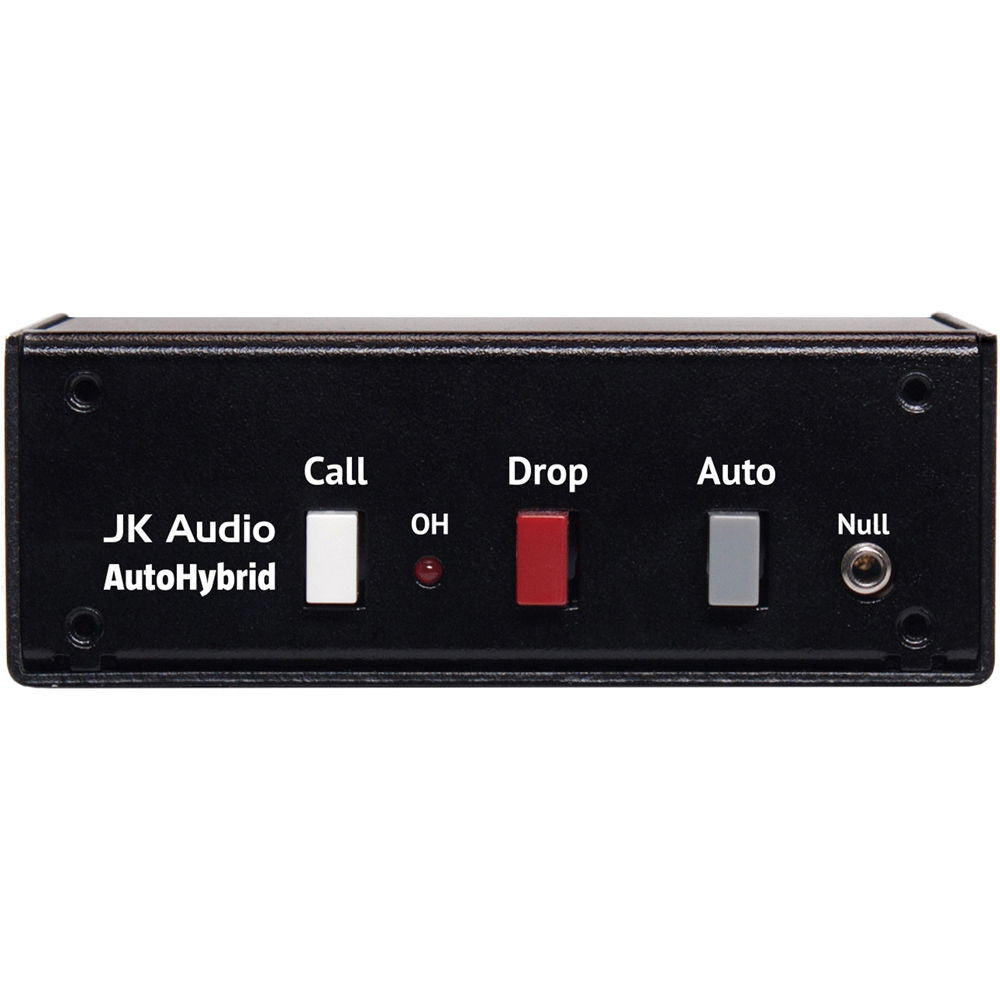

When enabled, the Auto-Answer feature will automatically answer an incoming call on the first ring and then disconnect after the caller hangs up. Additional controls include Call Button, Drop Button and OH (Off-Hook) status indicator LED. The dual transformer hybrid circuit results in a 20dB reduction between the send audio level on the caller output and the transmit level. A detachable screw terminal block provides remote control access to all features.
- Telephone / Audio Interface
- A complete interface between audio sources and analog phones and cell phones. Designed for telephone interviews, broadcast, IFB and more.
- Dual Hybrid Circuit
- The dual transformer hybrid circuit results in a 20dB reduction between the send audio level on the caller output and the transmit level.
- Auto-Answer Function
- The Auto-Answer feature will automatically answer an incoming call on the first ring and then disconnect after the caller hangs up.
- Call / Drop Function
- Call and Drop buttons are provided and enable users to connect to the line for dialing out, or drop a call and hang up directly from the AutoHybrid.
| Input | Transmit XLR: Balanced Female XLR, 800 ohms, 500mV RMS (+4dBv max) Insertion Loss: 9dB Send XLR to Phone Line |
| Output | Receive XLR: Balanced Male XLR, 600 ohms, 200mV RMS (-15 dBm nom) Off-Hook LED Line Connector (From Phone Line): RJ11C 1500 VAC Isolation 0.8B REN |
| Handset | Not Provided |
| Isolation | 1500 VAC |
| Phone Line | Phone Connector (To Handset): RJ11C 1500 VAC Isolation 0.8B REN |
| Impedance | Transmit XLR: 800 ohms Receive XLR: 600 ohms |
| Power Requirements | Passive |
| Dimensions | 4 x 5 x 1.5" (10.5 x 13 x 4 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 6.7 x 5.3 x 2.3" |
- RJ-11 Cable
- 2 Year Warranty
