Cambo Actus-G Overview

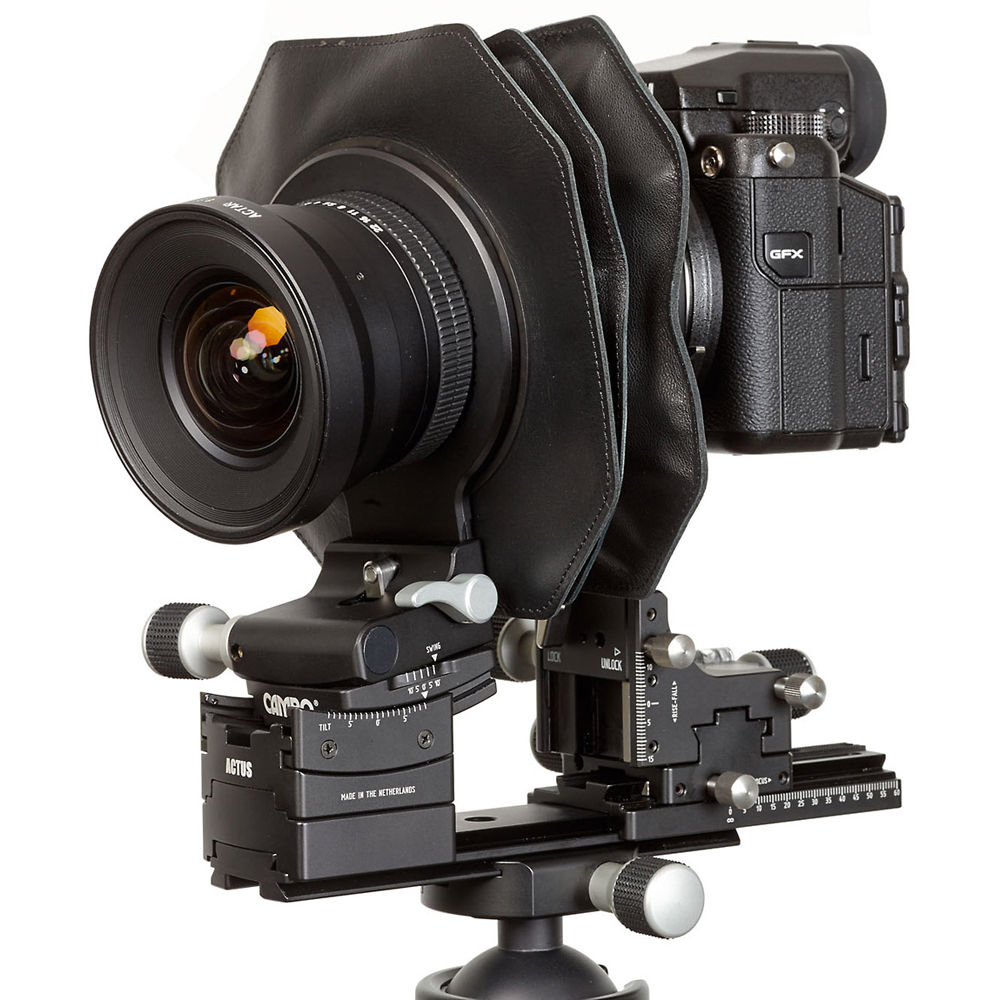

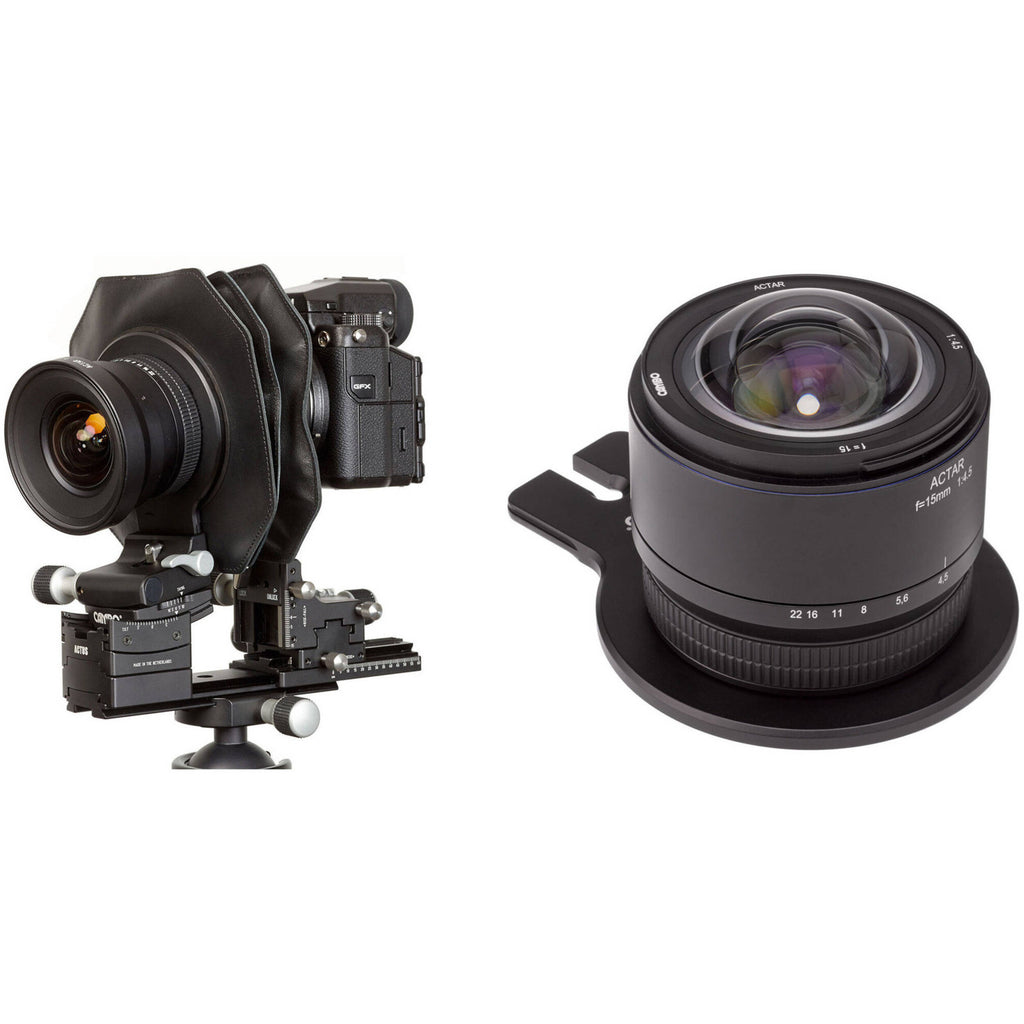

The Cambo ACTUS-GFX View Camera Body with 15mm Lens Kit comes ready out of the box to be used with your FUJIFILM GFX system. It's comprised of the ACTUS view camera itself, the ACTAR-15 lensplate with 15mm lens, and all the accessories you need for mounting your digital camera.
Offering extensive perspective and focus control along with the convenience of working with your digital camera, the black ACTUS-GFX View Camera Body from Cambo effectively transforms your medium format mirrorless camera into a digital view camera. As the core component within a modular system, this view camera body serves as the primary piece from which you can pair a Fujifilm GFX with a variety of lenses to reap the benefits of geared camera movements for correcting perspective distortions, achieving an extended depth of field, or producing creative selective focus effects. While resembling traditional large format view cameras in function, the ACTUS system also echoes the compact form factor of the digital cameras it is designed to be paired with and is optimized for use in both the studio as well as on location.
This view camera body is delivered with a 6.1" monorail as well as a 4.9" bellows to permit working with a variety of lens and camera types. The monorail is designed to fit within the Arca-Swiss style quick release system for easy mounting to a tripod, and is also fitted with both 3/8"-16 and 1/4"-20 mounts for attaching quick release plates. Optional lensplates can be added depending on your desired lens type, and the monorail and bellows is also interchangeable with optional wide-angle and longer versions of each. Additionally, besides the included GFX bayonet mount, other optional smaller format camera bayonet mounts can be used in conjunction with the optional AC-78E Bayonet Holder.
- Rear Rise/Fall: +0.5", -0.6" / +12mm, -15mm
- Rear Shift: +/- 0.8" / 20mm
- Front Swing: 360°
- Front Tilt: +10°, -9°
The swing and tilt movements of the front standard rotate about the optical axis in order to avoid having to re-compose or re-focus after each movement is applied.
- Revised rear standard features geared horizontal shift along with a removable bayonet holder that has been specifically designed for the physically larger mount size of the GFX camera system.
- Both fine geared and quick-slide focusing adjustment types are available.
- Bellows and monorail focusing allows you to achieve closer focusing distances without the use of extension tubes or other macro attachments.
- Zero-position clicks are incorporated into each movement type for more intuitive handling.
- Monorail is compatible with the Arca-Swiss-style quick release system and also features both 3/8"-16 and 1/4"-20 mounts.
- Front tilts and swings allow you to alter the plane of focus for employing selective focus techniques or Scheimpflug settings for extensive depth of field. Additionally, these tilt and swing movements are used to correct for convergence and other perspective distortions.
- Rear horizontal and vertical shifts allow you to move the camera position while retaining the same lens position, making this configuration especially ideal for stitching multiple exposures without having to adjust the lens.
- The included Fujifilm GFX camera bayonet mount allows you to rotate between horizontal and vertical shooting orientations without having to adjust the actual orientation of the view camera body.
- This black finish body is anodized for greater durability and scratch resistance.
- Compact overall form factor is relative to the size of DSLR and mirrorless cameras.

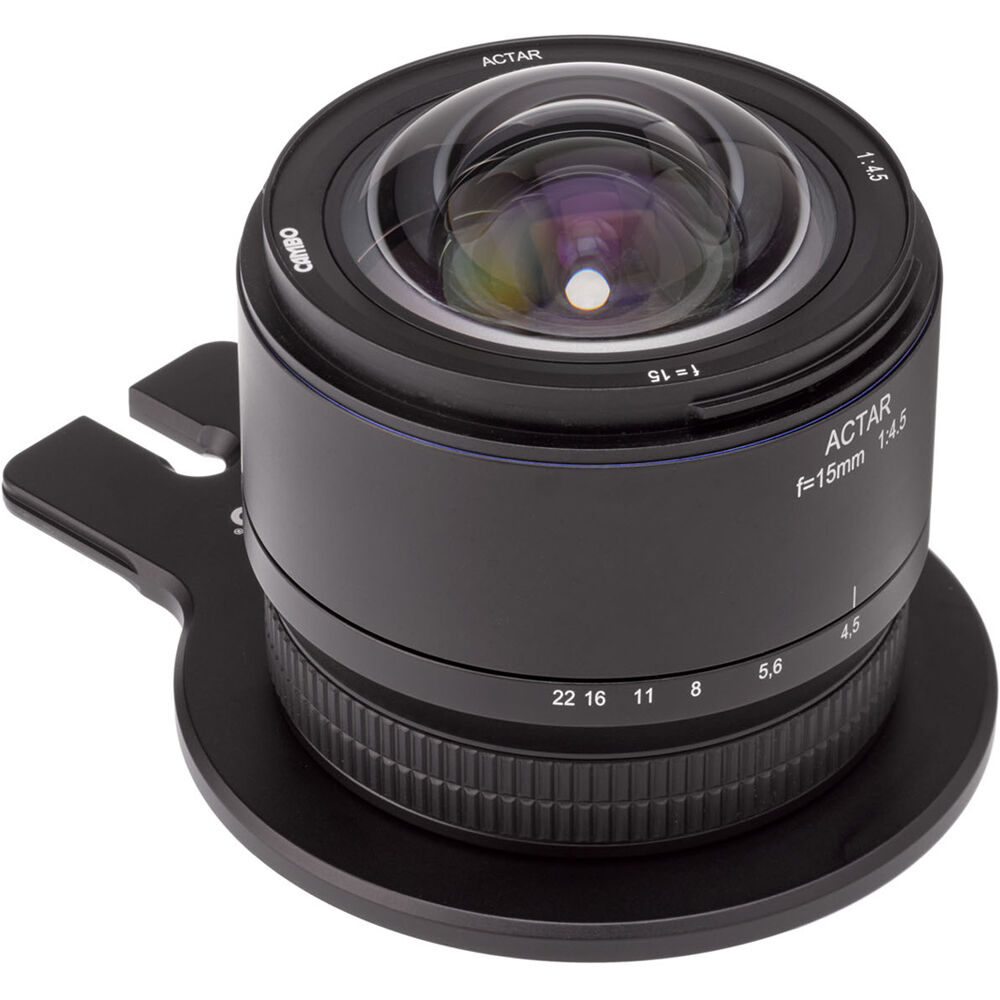

The ACTAR-15 is an Ultra-Wide-Angle Lens, dedicated to the Cambo Actus system in combination with a DSLR or Mirrorless camera, mounted to the Actus. This lens is permanently attached to an Actus lens panel and has a focal length of 15mm. This makes it an ideal companion for interior, landscape and architectural photographers. With a relatively light weight and a modest size it is easy to carry with you to location shootings.
The ACTAR-15 is a lens with almost no geometrical distortion. As the image circle is over 65mm, there is an optically allowed horizontal shift possible of 15mm each side when using a full frame (24x36) sensor in landscape mode, and 12mm in portrait mode. Use of the ACTAR-15 on the Actus with Fujifilm GFX 50/100 series is possible up to 6 mm of shift.
The optical design of this lens is a 17 element in 11 groups. The aperture range is from f/4,5 to f/22 in half stop increments. Please note that the aperture is manual and there are no electronical connections available nor needed.
In the Box
- Cambo ACTUS-GFX View Camera Body with Fujifilm GFX Bayonet Mount (Black)
- Cambo AC-210 Standard Bellows for ACTUS
- Cambo AC-315 Standard Monorail for ACTUS Cameras (6.1")
- Cambo AC-792 Bayonet Holder for FUJIFILM G
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only) - Cambo ACTAR-15 Lensplate with 15mm Wide-Angle Lens
Cambo ACTUS-GFX View Camera Body with Fujifilm GFX Bayonet Mount (Black) Specs
| Camera Type |
View camera body for DSLR or mirrorless capture
|
| Lens Mount |
Compatible with optional ACTUS-B lensplates
|
| Camera Mount |
Fujifilm GFX camera bayonet mount
Compatible with additional optional ACTUS camera bayonet mounts via optional AC-78E Bayonet Holder |
| Monorail Length |
6.1" / 155 mm (standard AC-315 monorail)
|
| Bellows Extension |
4.9" / 125 mm (standard AC-210 bellows)
|
| Focusing System |
Quick slide adjustment, geared fine-focus adjustment
Up to 5.3" / 134 mm travel with Fujifilm GFX mount |
| Mounting |
Monorail is Arca-Swiss-compatible
1/4" and 3/8" mounts also integrated into monorail |
| Dimensions |
6.0 x 4.5 x 6.7" / 152 x 115 x 171 mm
|
| Weight |
2.5 lb / 1150 g
|
| Package Weight |
3.8 lb
|
| Box Dimensions (LxWxH) |
10.2 x 8.1 x 6.5"
|
Cambo ACTAR-15 Lensplate with 15mm Wide-Angle Lens Specs
| Focal Length |
15mm
|
| Maximum Aperture |
f/22
|
| Minimum Aperture |
f/4.5
|
| Optical Design |
17 Elements in 11 Groups
|
| Dimensions |
ø: 95 x L: 98" / ø: 2.4 x L: 2.5 m
|
| Weight |
1.67 lb / 757 g
|
| Package Weight |
2.44 lb
|
| Box Dimensions (LxWxH) |
10 x 7.4 x 5.2"
|
