| ₹ 674.96 includes GST and import duties. | |
| B2B customers can avail ₹ 102.93 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

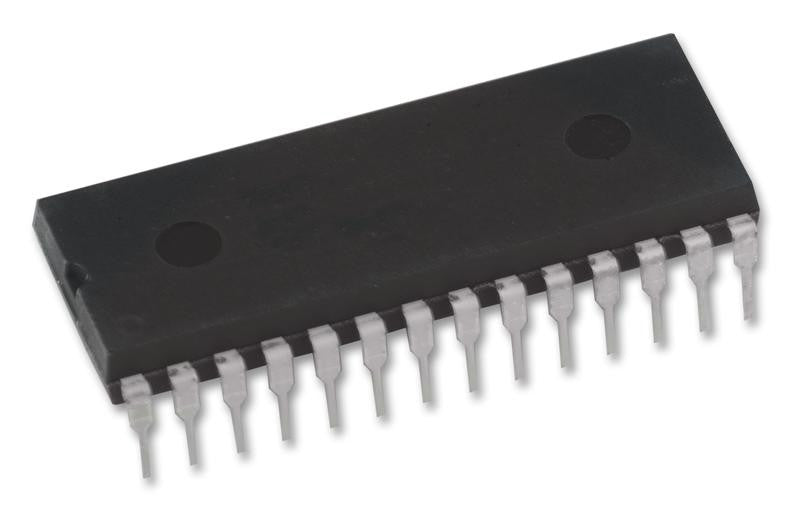

The A623308A-70SF is a 8K x 8-bit CMOS SRAM IC with low operating current 65536-bit static random access memory organized as 8192 words by 8-bit and operates on a voltage from 4.5 to 5.5V. Inputs and 3-state outputs are TTL compatible and allow for direct interfacing with common system bus structures. Minimum standby power is drawn by this device when CE is at a high level, independent of the other input levels. Data retention is guaranteed at a power supply voltage as low as 2V.
- Full static operation, no clock or refreshing required
- Common I/O using three-state output
Applications
Industrial, Communications & Networking
Product details
| Operating Temperature Min | 0�C |
| Supply Voltage Range | 4.5V to 5.5V |
| Operating Temperature Max | 70�C |
| Access Time | 70ns |
| No. of Pins | 28Pins |
| SRAM Memory Configuration | 8K x 8bit |
| Memory Size | 64Kbit |
| Product Range | - |
| Automotive Qualification Standard | - |
| Memory Case Style | DIP |
| Packaging | Each |
| MSL | - |
Other details
| Brand | AMIC |
| Part Number | A623308A-70SF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 661.46 |
| 3-5 | ₹ 654.71 |
| 5-10 | ₹ 641.21 |
| 10+ | ₹ 627.71 |
Bulk discount will be automatically applied during checkout based on quantity.
