IS61WV102416FBLL-10TLI is a 1Mx16 high-speed asynchronous CMOS static RAM with 3.3V/1.8V supply. It is high-speed, 16Mbit static RAMs organized as 1024K words by 16bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devices. When CS# is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels. Easy memory expansion is provided by using chip enable and output enable inputs. The active LOW write enable (WE#) controls both writing and reading of the memory.
- High- performance, low power CMOS process
- Multiple centre power and ground pins for greater noise immunity
- TTL compatible inputs and outputs
- Single power supply is 2.4V to 3.6V VDD
- Data control for upper and lower bytes
- A data byte allows upper byte (UB#) and lower byte (LB#) access
- 48-pin TSOP (Type I) package
- Industrial temperature rating range from -40°C to +85°C
Other details
| Brand |
INTEGRATED SILICON SOLUTION (ISSI) |
| Part Number |
IS61WV102416FBLL-10TLI |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

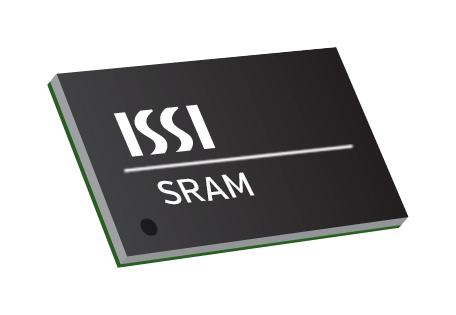

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
