Description

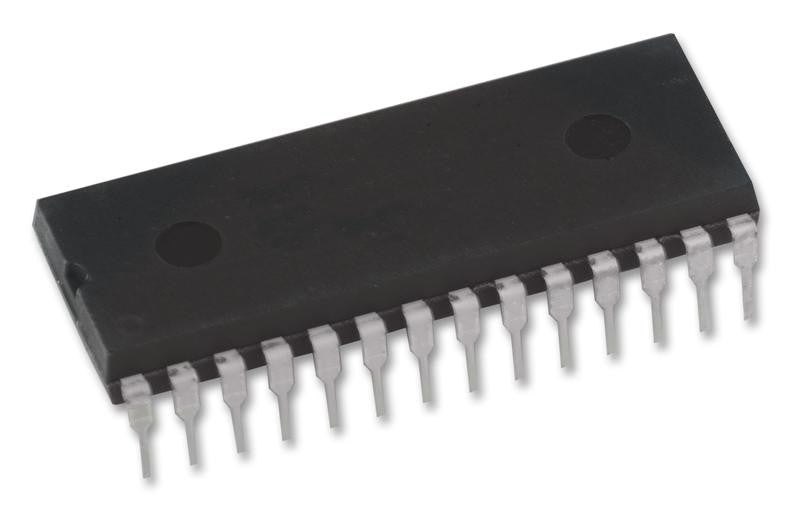

The AT27C512R-45PU is a 512K (64K x 8bit) one time programmable read only memory (OTP EPROM) device in 28 pin DIP package. This low power, high performance, 524288bit memory requires only one 5V power supply in normal read mode operation. Any byte can be accessed in less than 45ns by eliminating the need for speed reducing WAIT states on high performance microprocessor systems. The Atmel scaled CMOS technology provides high speed, low active power consumption and significantly faster programming. The AT27C512R-45PU allows firmware to be stored reliably and to be accessed by system without delays of mass storage media. It has additional features to ensure high quality and efficient production use. The rapid programming algorithm reduces time required to program the device and guarantees reliable programming.
- Fast read access time of 45ns
- Low power CMOS operation
- Maximum standby current of 100µA
- Maximum active current of 20mA at 5MHz
- High reliability CMOS technology
- Rapid programming algorithm of 100µs/byte
- CMOS and TTL compatible inputs and outputs
- Integrated product identification code
- Operating temperature range from -40°C to 85°C
Applications
Embedded Design & Development
Product details
| EPROM Memory Configuration | 64K x 8bit |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Access Time | 45ns |
| No. of Pins | 28Pins |
| Memory Size | 512Kbit |
| Product Range | - |
| Memory Case Style | DIP |
| Supply Voltage Min | 4.5V |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | AT27C512R-45PU |
| Quantity | Each |
| Technical Data Sheet EN |  |
