Description

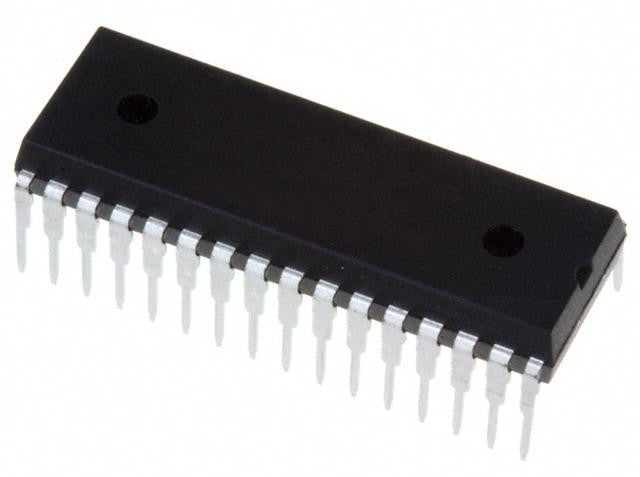

This is a Flash Memory, 2MBIT, 70NS, DIP-32 product from MICROCHIP with the model number SST39SF020A-70-4C-PHE
Product details
| Memory Size | 2Mbit |
| Flash Memory Configuration | 256K x 8bit |
| Clock Frequency | 14MHz |
| IC Interface Type | Parallel |
| Memory Case Style | DIP |
| No. of Pins | 32Pins |
| Access Time | 70ns |
| Supply Voltage Min | 4.5V |
| Supply Voltage Max | 5.5V |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Packaging | Each |
| Product Range | 5V Parallel NOR Flash Memories |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | SST39SF020A-70-4C-PHE |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
