| ₹ 533.17 includes GST and import duties. | |
| B2B customers can avail ₹ 81.31 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The ATMEGA168-20PU is a 8-bit high-performance, low-power AVR RISC-based Microcontroller Unit combines 16kB ISP flash memory, 1kB SRAM, 512B EEPROM, an 8-channel/10-bit A/D converter (TQFP and QFN/MLF) and debugWIRE for on-chip debugging. The device supports a throughput of 20 MIPS at 20MHz and operates between 2.7 to 5.5V. The current consumption is a function of several factors such as operating voltage, operating frequency, loading of I/O pins, switching rate of I/O pins, code executed and ambient temperature. The dominating factors are operating voltage and frequency. The difference between current consumption in power-down mode with watchdog timer enabled and power-down mode with watchdog timer disabled represents the differential current drawn by the watchdog timer.
- Advanced RISC architecture
- 131 Powerful instructions
- Fully static operation
- Up to 20MIPS throughput at 20MHz
- On-chip 2-cycle multiplier
- High endurance non-volatile memory segments
- Optional boot code section with independent lock bits
- In-system programming by on-chip boot program
- True Read-While-Write operation
- Programming lock for software security
Applications
Automation & Process Control
Product details
| Controller Family/Series | ATmega |
| Embedded Interface Type | I2C, SPI, UART |
| No. of I/O's | 23I/O's |
| Program Memory Size | 16KB |
| No. of Pins | 28Pins |
| Product Range | ATMega Microcontrollers |
| Automotive Qualification Standard | - |
| CPU Speed | 20MHz |
| Supply Voltage Min | 2.7V |
| MCU Case Style | DIP |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| RAM Memory Size | 1KB |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | ATMEGA168-20PU |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

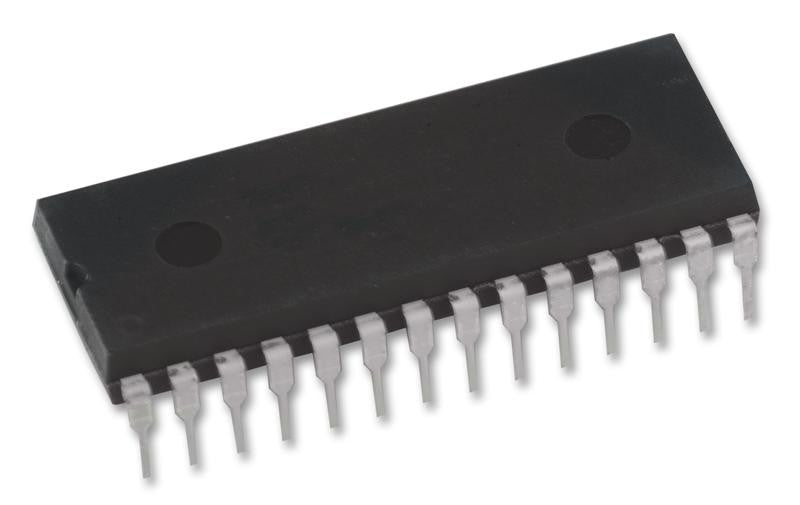

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 522.51 |
| 3-5 | ₹ 517.17 |
| 5-10 | ₹ 506.51 |
| 10+ | ₹ 495.85 |
Bulk discount will be automatically applied during checkout based on quantity.
