Description

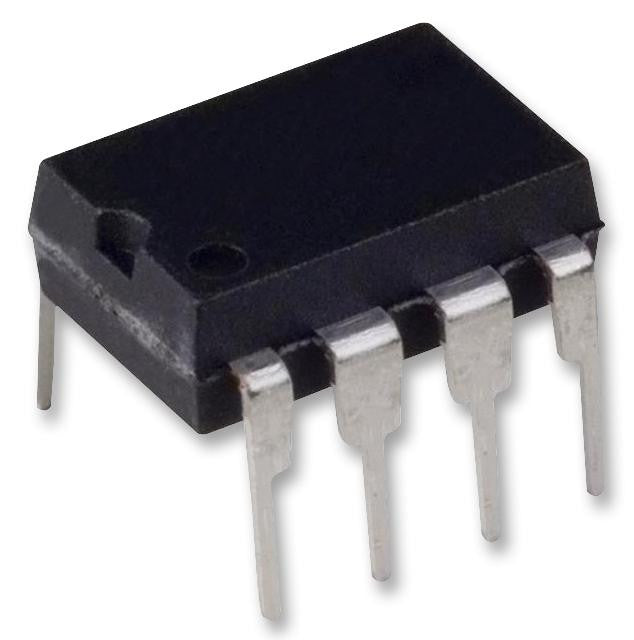

The PIC12LF1552-I/P is an enhanced mid-range PIC12 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC�(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 256bytes of data memory size, 6 general-purpose I/O pins and 5-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 32MHz wide operating voltage of 1.8 to 3.6V.
- 49 (14-bit wide) easy instructions to learn
- 16 level hardware stack
- 2 (16-bit) file select registers
- Hardware interrupt handling with content save
- Programmable brown-out reset (BOR)
- Power on reset (POR)
- 32kHz to 16MHz internal oscillator
- Watch dog timer (WDT)
- One 8-bit digital timers
- 4x Capacitive touch channels
- In-Circuit Serial Programming� (ICSP�)
Applications
Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
Product details
| Controller Family/Series | PIC12LF |
| Embedded Interface Type | I2C, SPI |
| No. of I/O's | 6I/O's |
| Program Memory Size | 3.5KB |
| No. of Pins | 8Pins |
| Product Range | PIC12 Microcontrollers |
| Automotive Qualification Standard | AEC-Q100 |
| CPU Speed | 32MHz |
| Supply Voltage Min | 1.8V |
| MCU Case Style | DIP |
| Packaging | Each |
| Supply Voltage Max | 3.6V |
| RAM Memory Size | 256Byte |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC12LF1552-I/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
