Description

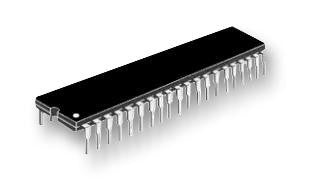

The PIC16F1719-I/P is a 8-bit intelligent analogue Flash Microcontroller combines analogue integration with extreme low power (XLP) to suit a variety of general purpose applications. This microcontroller delivers on-chip operational amplifier, core independent peripherals (CLC, COG, NCO and zero cross detect) and peripheral pin select, providing for increased design flexibility. This family of device contains an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has overflow and underflow reset capability. The microcontroller with direct, indirect and relative addressing modes. Two file select registers (FSRs) provides the ability to read program and data memory.
- 28kB Flash program memory
- 2kB Data SRAM
- High endurance flash memory (HEF)
- 128B of Non-volatile data storage
- 36 I/O pins
- Four 8-bit timer/one 16-bit timer
- 2 x High-speed comparators
- 2 x Operational amplifier
- 28-channel x 10-bit ADC
- One 8-bit DAC and one 5-bit DAC
- Zero cross detect
- 2 x CCP/2 x PWM
- 1 x COG
- 1 x EUSART
- 1 x I�C/SPI
- 4 x CLC
- 1 x NCO
- Interrupt capability
- Power-on reset (POR)
- Power-up timer (PWRT)
Applications
Industrial, Computers & Computer Peripherals
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Controller Family/Series | PIC16F19xx |
| Embedded Interface Type | EUSART, I2C, SPI |
| No. of I/O's | 36I/O's |
| Program Memory Size | 28KB |
| No. of Pins | 40Pins |
| Product Range | PIC16 Microcontrollers |
| Automotive Qualification Standard | - |
| CPU Speed | 32MHz |
| Supply Voltage Min | 2.3V |
| MCU Case Style | DIP |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| RAM Memory Size | 2KB |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | PIC16F1719-I/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
