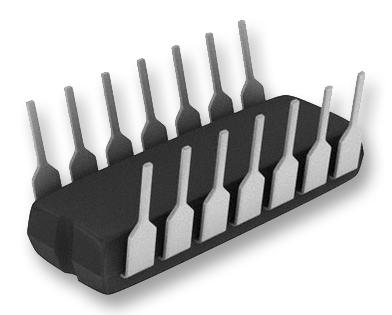

Microchip PIC16F616-I/P PIC16F616-I/P 8 Bit MCU Flash PIC16 Family PIC16F6XX Series Microcontrollers 20 MHz 3.5 KB 128 Byte 14 Pins

The PIC16F616-I/P is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size, 12 general-purpose I/O pins, two comparators and 8-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 15V.

• 35 (14-bit wide) easy instructions to learn
• 8 level hardware stack
• 1 (9-bit) file select register
• Hardware interrupt handling
• 4MHz or 8MHz internal oscillator
• Brown-out reset (BOR)
• Power on reset (POR)
• Internal voltage reference (Bandgap)
• Two 8-bit digital timers
• One 16-bit digital timer

• 1x Enhanced Capture/Compare/PWM (ECCP)
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
